Amplifier 300w + 300w – Fonestar DSA-302

Original price was: €339.Current price is: €319.

Call for availability

Professional digital stereo power amplifier, class D amplifier circuit & Switch-mode power supply: 2 x 300W at 4 Ω, 2 x 200W to 8 Ω,  1 x 600W at 8 Ω Bridge mode.

Call for availability

SEND EMAIL QUERY
SKU: DSA302- Categories: , Tag:

Description

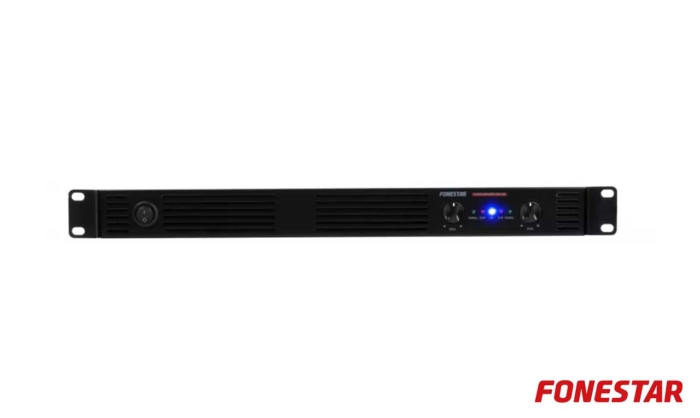

DSA-302 Class D power amplifier

Professional digital stereo power amplifier with high efficiency class D amplifier circuit. Switch-mode power supply.

POWER
Stereo and parallel mode:
300 + 300 W RMS at 4 Ω
200 + 200 W RMS to 8 Ω
Bridge mode: 600 W RMS at 8 Ω

FUNCTIONS
Forced ventilation
On/off, signal and peak signal light indicators

PROTECTION
Soft start, temperature, short circuit, overload, VHF, DC and AC
Channel limiter

CONTROLS
Channel volume
Stereo/Parallel/Bridge operating mode selector
Earth disconnection GND lift

INPUTS
2 balanced aux lines, combo (XLR and 6’3 mm jack) 20,000 Ω 1 V

RESPONSE
20-20,000 Hz

DISTORTION
Harmonic: < 0’1% DAMPING FACTOR > 200

S/N RATIO
> 100 dBA

SLEW RATE
20 V/µs

OUTPUTS
Speakers:
4-8 Ω stereo, screw terminals and bananas plugs or loudspeaker connector
8 Ω mono bridge, screw terminals and bananas plugs or loudspeaker connector

POWER SUPPLY
230/115 V AC, 900 W

DIMENSIONS
482 x 44 x 165 mm depth. 1 x 19″ U rack

WEIGHT
2.6 kg

Additional information

Brand

Fonestar

Amplifier Connectivity

Aux-In
