FONESTAR DOT100TR 100V LINE ATTENUATOR

69

In stock

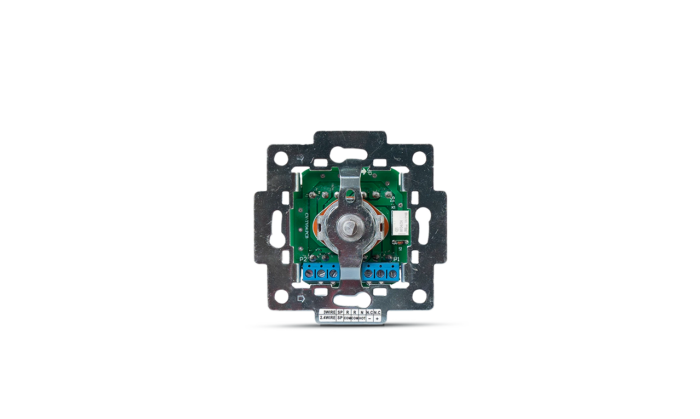

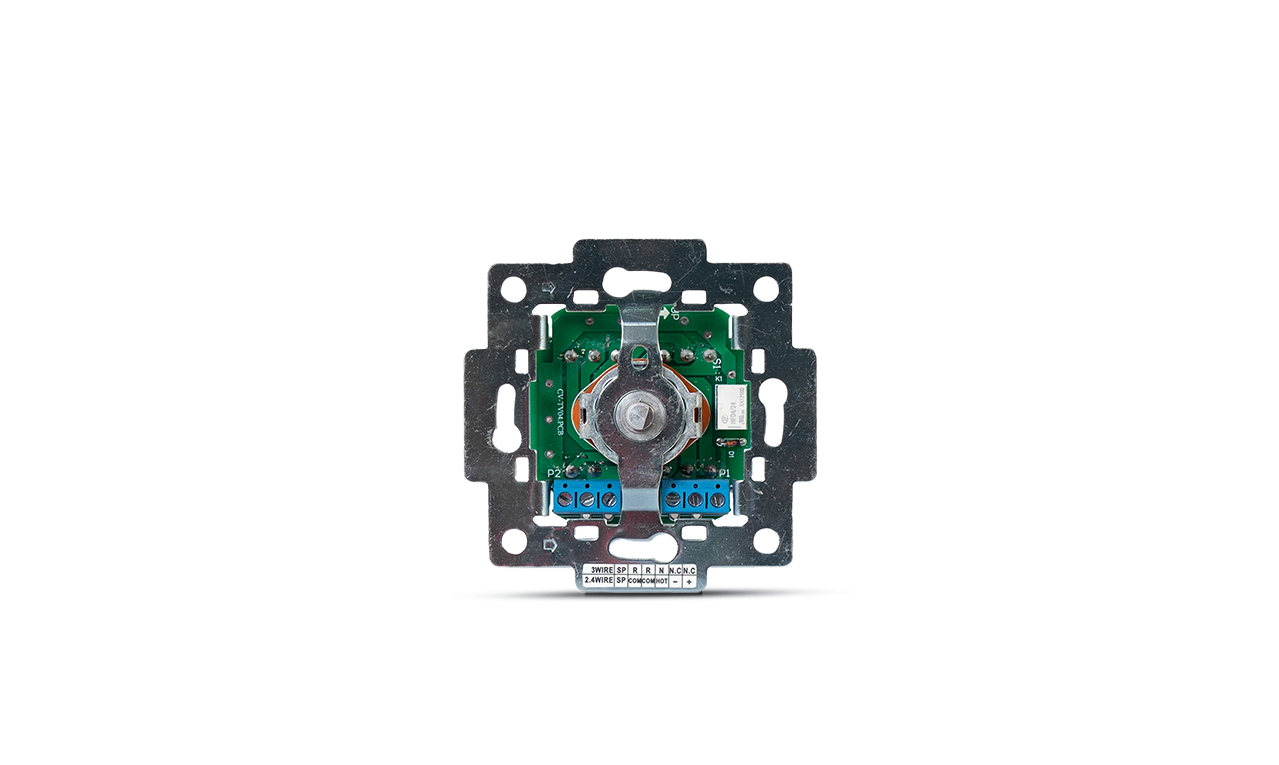

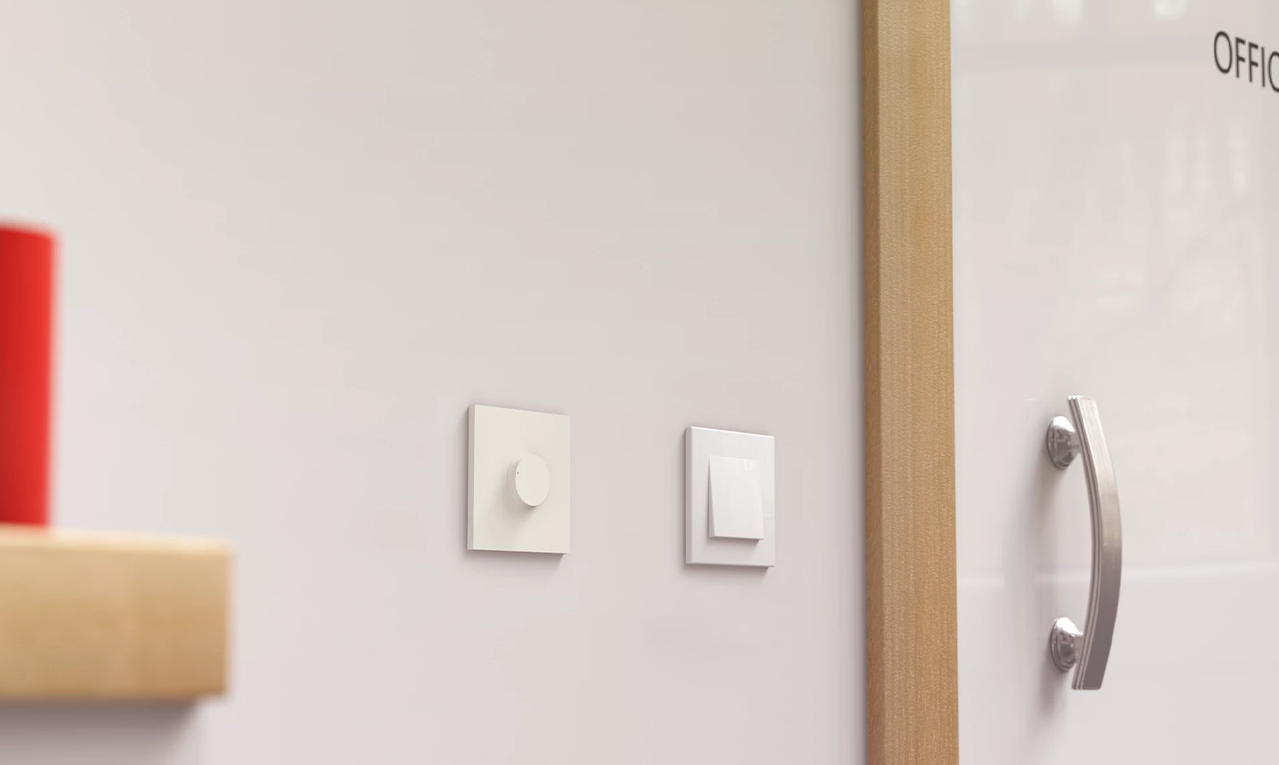

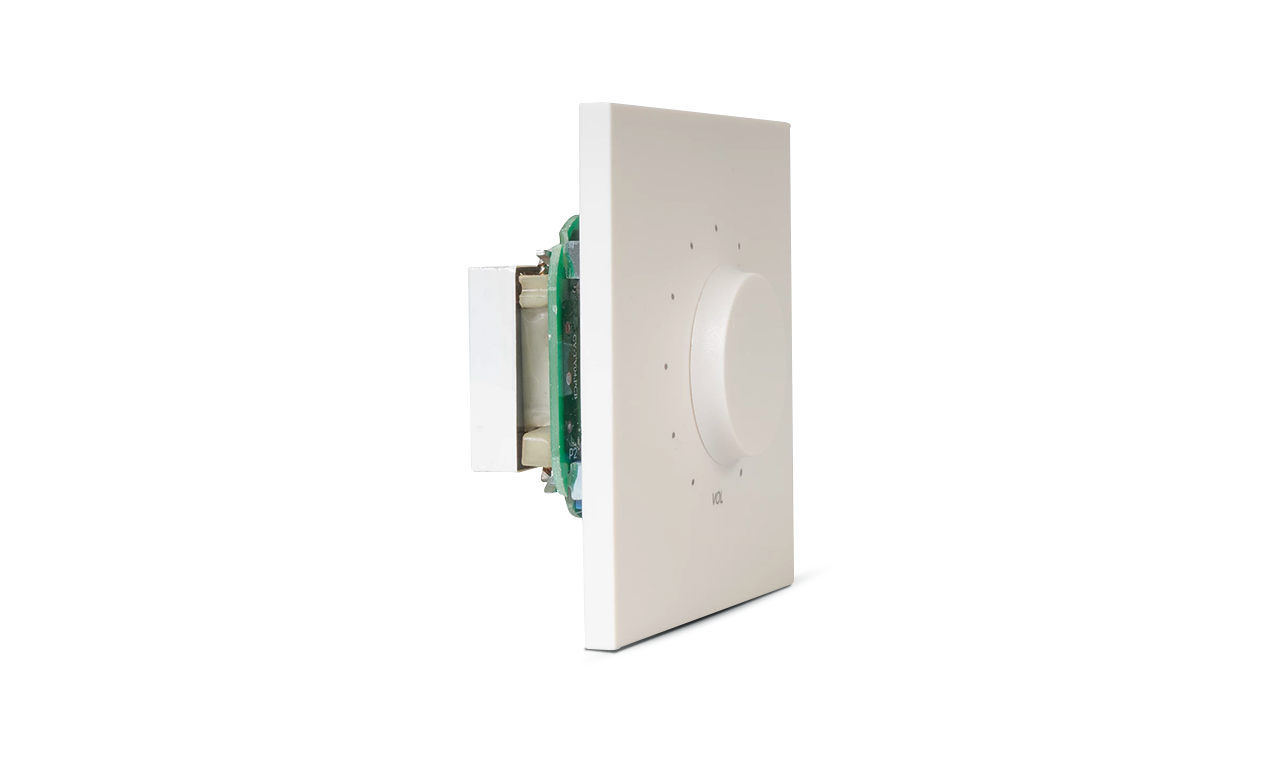

100 V line attenuator with 3-wire or 4-wire priority with relay for flush or surface mounting.Ergonomically designed potentiometer with 10 attenuation and switch-off positions for easy handling. They offer 2-wire inputs as well as 3-wire and 4-wire inputs priority systems Therefore, they are perfect for issuing priority warnings in large installations. Thanks to their standard dimensions, they can be fitted with universal square and round boxes for plasterboard partition walls (plasterboard).

In stock

Description

– For 100 V line installations

– Priority by 3 or 4 wires with relay

– For universal standard case

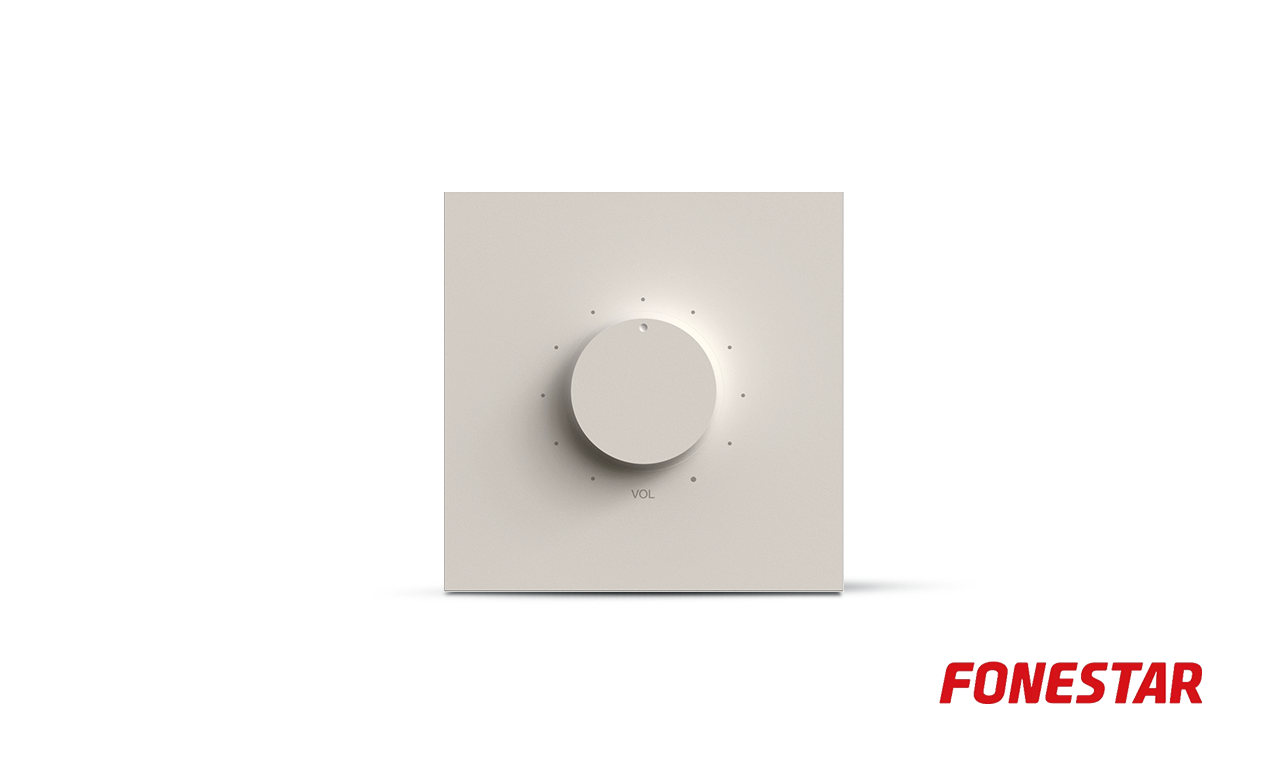

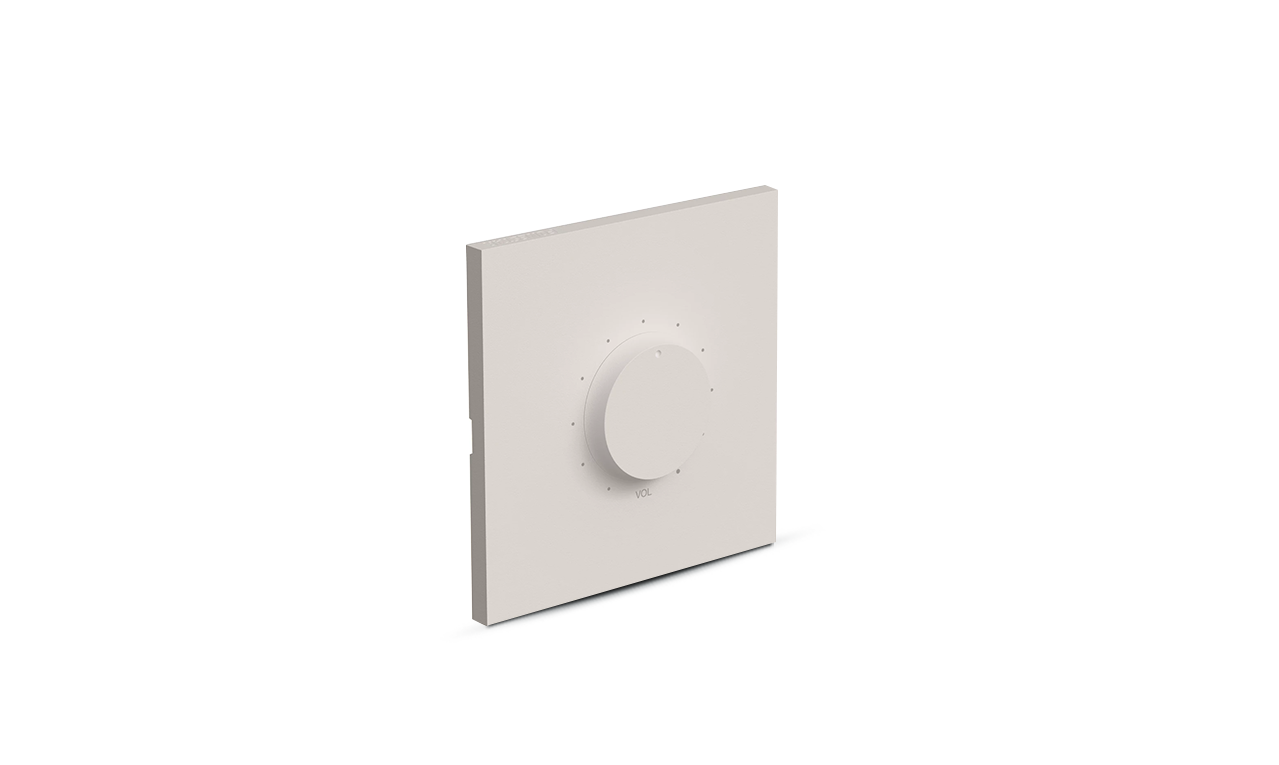

– 10 position ergonomic potentiometer with switch off

– Minimalist aesthetic

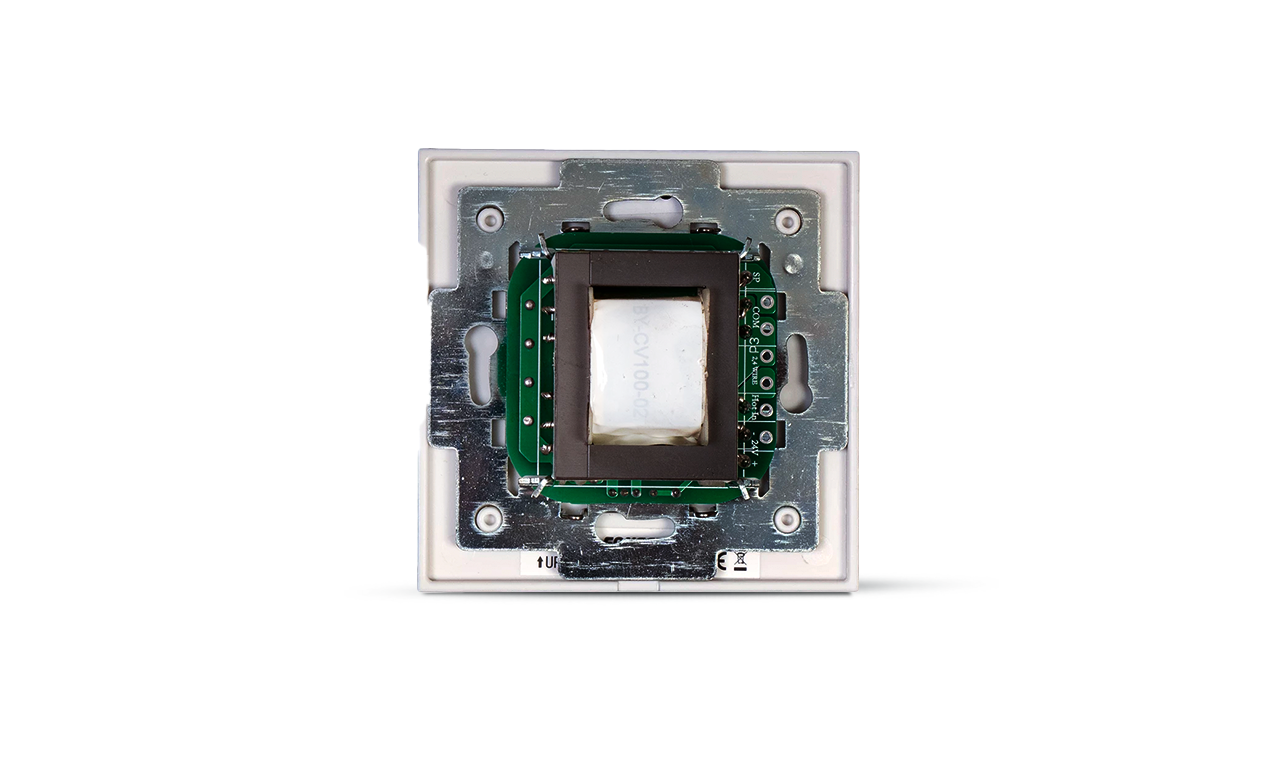

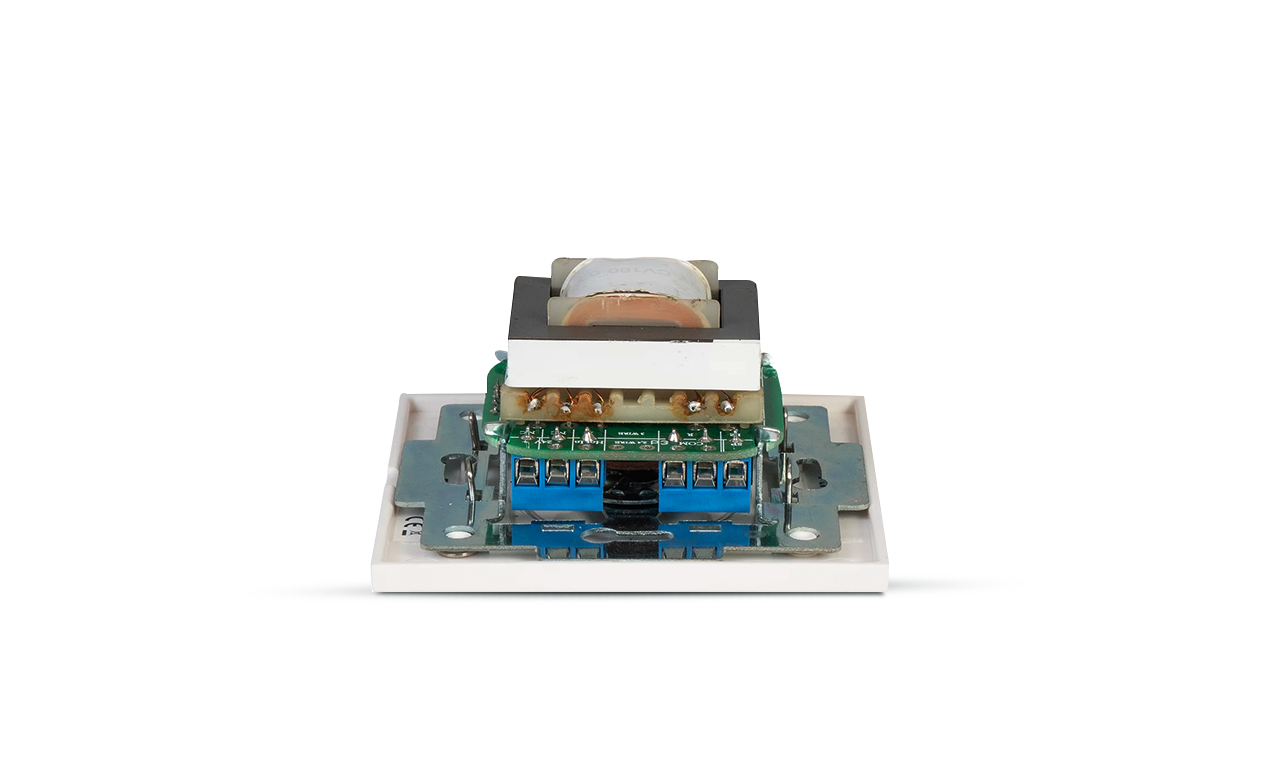

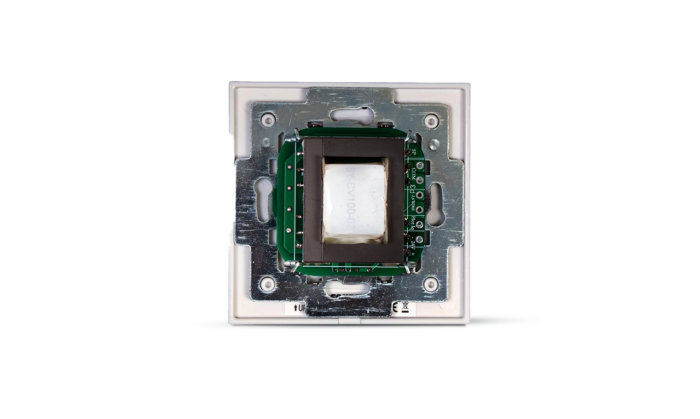

FEATURES:100 V line attenuator with autotransformer for flush or surface mounting.
2-wire input and 3- and 4-wire priority systems.
POWER:100 W maximum
INPUTS:High Z 100 V line
OUTPUTS:High Z 100 V line
CONTROLS:10 attenuation positions and off switch
RELAY:24 V, 200 mW, 8 mA.
DIMENSIONS:Total: 83 x 83 x 50 mm depth
Insert: 50 x 50 x 38 mm depth
WEIGHT:0.15 kg

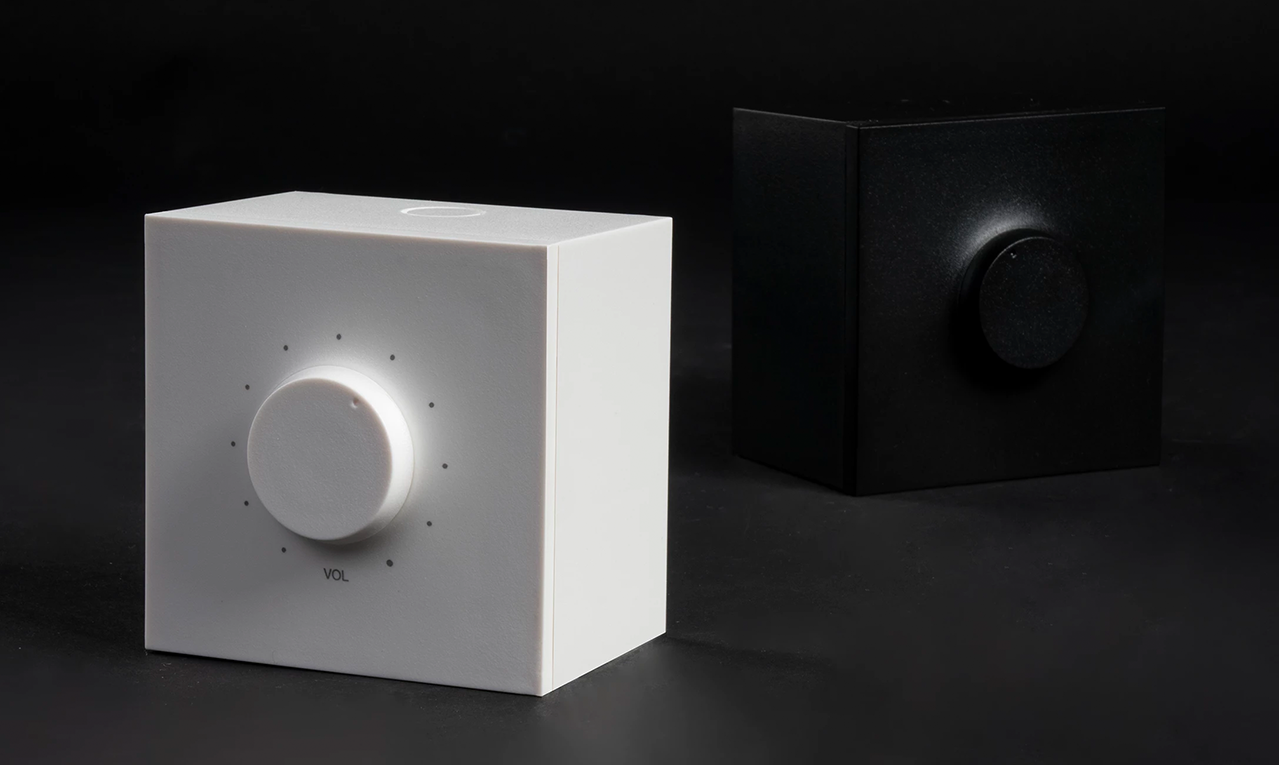

:For standard universal square box, round for plasterboard partitions and for surface installation box mod. DOT-BOX.
Distance between screws: 60 mm
