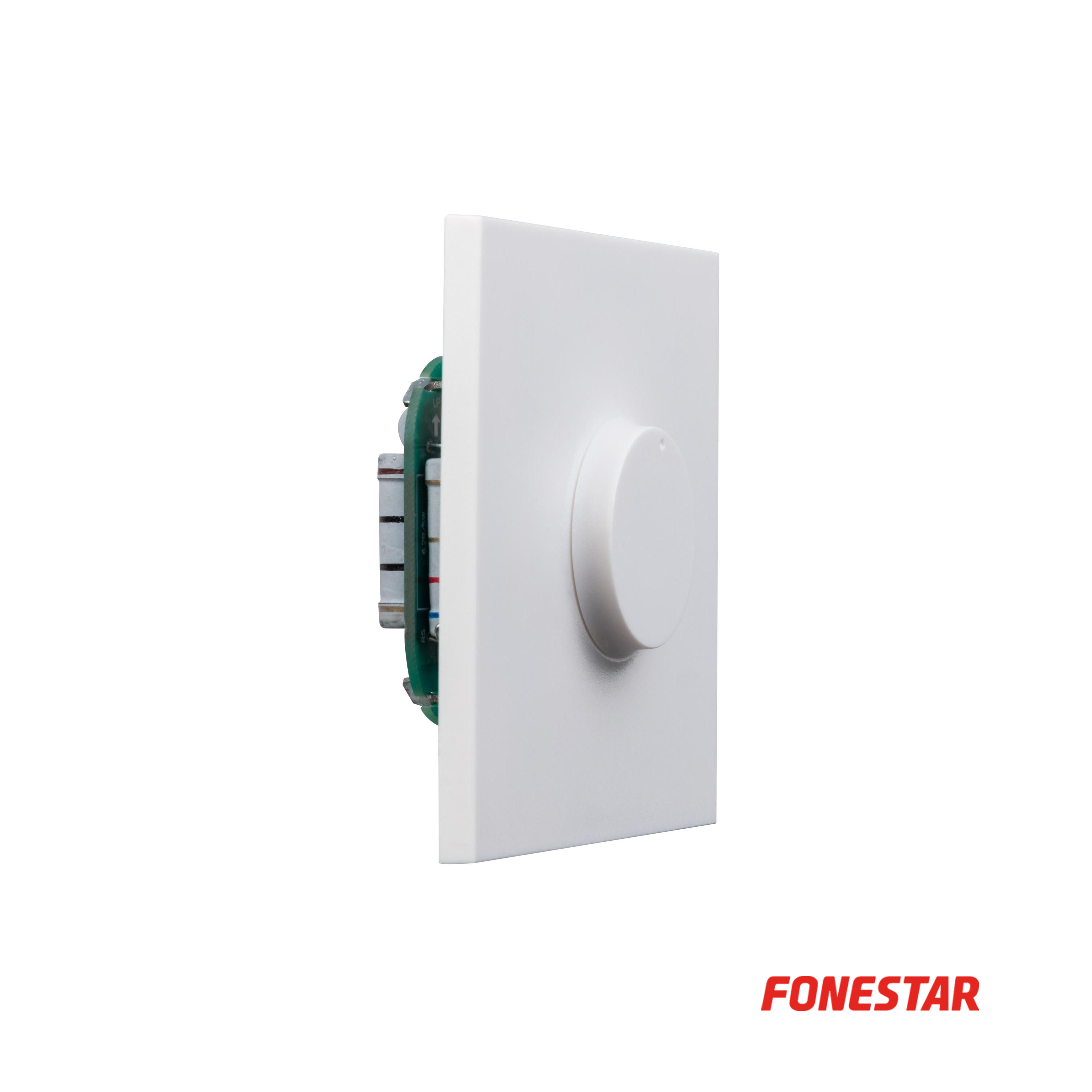

Fonestar DOT-30M Low Impedance Mono Attenuator

39

In stock

Low impedance mono attenuator for recessed or surface mounting. Ergonomically designed 6-position potentiometer with an off switch, which allows for easy operation.

In stock

Description

Benefits

FONESTAR’s own minimalist design, taking into account the market’s needs and ensuring that they will blend in with any installation, whether domestic or professional. Ergonomically designed 6-position potentiometer with an off switch, which allows for easy operation. The transformer attenuator provides better sound quality and volume control accuracy. Thanks to its standard measures, it can be embedded with square and round universal boxes for cardboard and plaster partitions (Pladur). They can also be installed on the surface along with the DOT-BOX surface installation boxes, available in black or white. This whole range is supplied in white, however, for installations requiring black attenuators, the black panel mod. DOT-01N, available separately, is easily interchangeable with the white one. Applications (common to the whole series): PA and voice evacuation systems, large and small shops, shopping centres, hotels, cafeterias, game rooms, household use, etc. Technical data: Attenuator with low impedance mono transformer Low Z for speakers 4-8 Ω 6-position dimmer potentiometer with an off switch Power: 30 W Colour: White

Characteristics

Low impedance mono transformer attenuator for recessed or surface mounting.

Power

Outputs



30W Maximum

Low Z for 4-8 Ω speakers

Dimensions

Total: 82 x 82 x 42 mm depth
Insert: 50 x 50 x 25 mm depth

Controls

6 dimming positions and off switch

Weight

0.1kg

For standard universal square box, round for plasterboard partitions and for surface installation box mod. DOT-BOX.
Distance between screws: 60 mm
