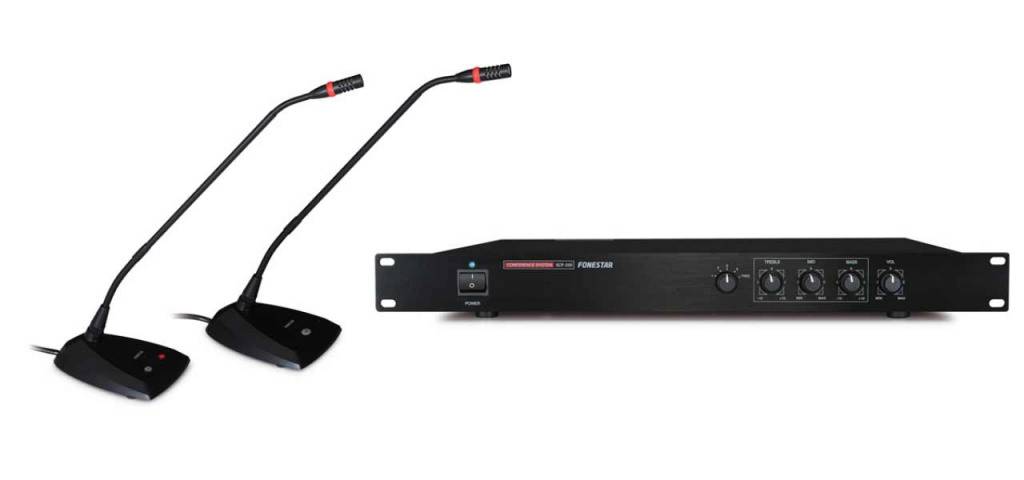

Conference system with ten delegate microphones and one president microphone. Additional microphones can be added, please inquire for more help.
Description
Fonestar Conference System Package 2

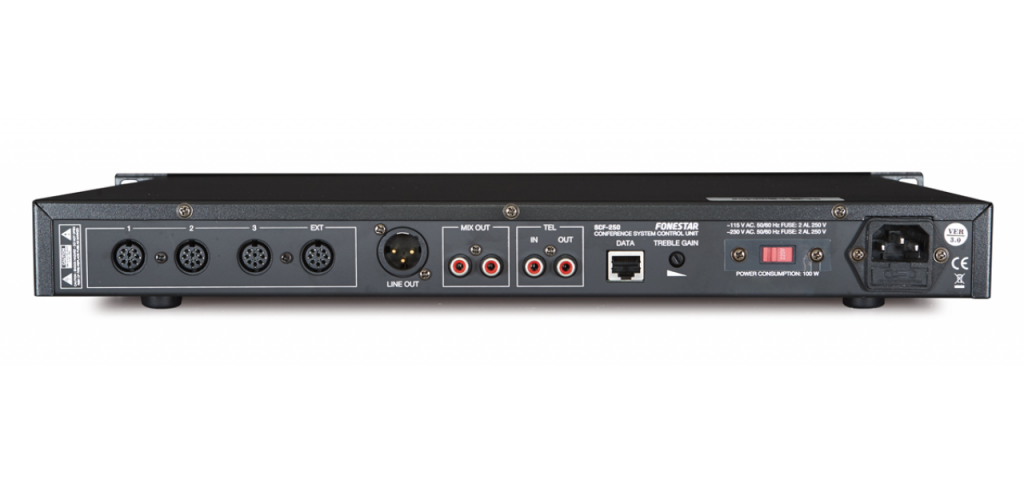

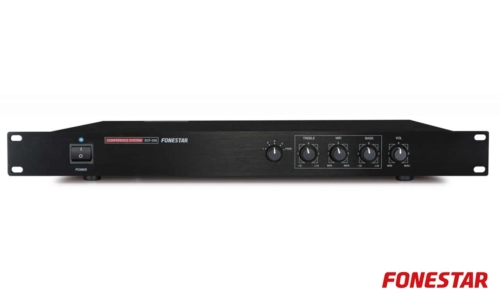

One Fonestar SCF250 conference system control unit
RESPONSE
20-18,000 Hz
CONTROLS
General volume
Bass, mid and treble control
Number of microphones operating selector
INDICATORS
On/off
INPUTS
1 telephone switchboard extension, RCA
4 groups of microphones, female DIN 8 for system interconnection
OUTPUTS
1 extension, DIN 8
1 line, XLR and 2 x RCA
1 telephone switchboard extension, RCA
POWER SUPPLY
230/115 V AC, 100 W
DIMENSIONS
482 x 44 x 353 mm depth. 1 U 19″ rack
WEIGHT
5 kg
ACCESSORIES
1 x 13 m extension cable to interconnect male DIN 8 and female DIN 8 microphones
2 x 1.6 m audio cables, RCA to 6.3 mm mono jack
1 x 2 m audio cable XLR
1 male DIN 8 terminal connector
OPTIONAL
560789B: Custom extension cable.
Please inquire for more details.
One Fonestar SCF-260P President microphone
President microphone with speech priority and possibility of cancelling delegate microphones. Heavy duty construction with metal microphone base.
MICROPHONE
Unidirectional electret condenser
RESPONSE
20-18,000 Hz
CONTROLS
Push-to-talk button
Priority over delegate microphones
INDICATORS
LED ring and power indicator
INPUTS
Power supply and audio, 1 x 1.1 male DIN 8 interconnection cable
OUTPUTS
Audio, interconnection cable
POWER SUPPLY
18 V DC, supplied by control unit
DIMENSIONS
Gooseneck microphone: 390 mm height
Base: 115 x 45 x 160 mm depth
WEIGHT
0.9 kg
ACCESSORIES
1 x 2 m Y interconnection cable, male DIN 8 to 2 female DIN 8
Foam windshield

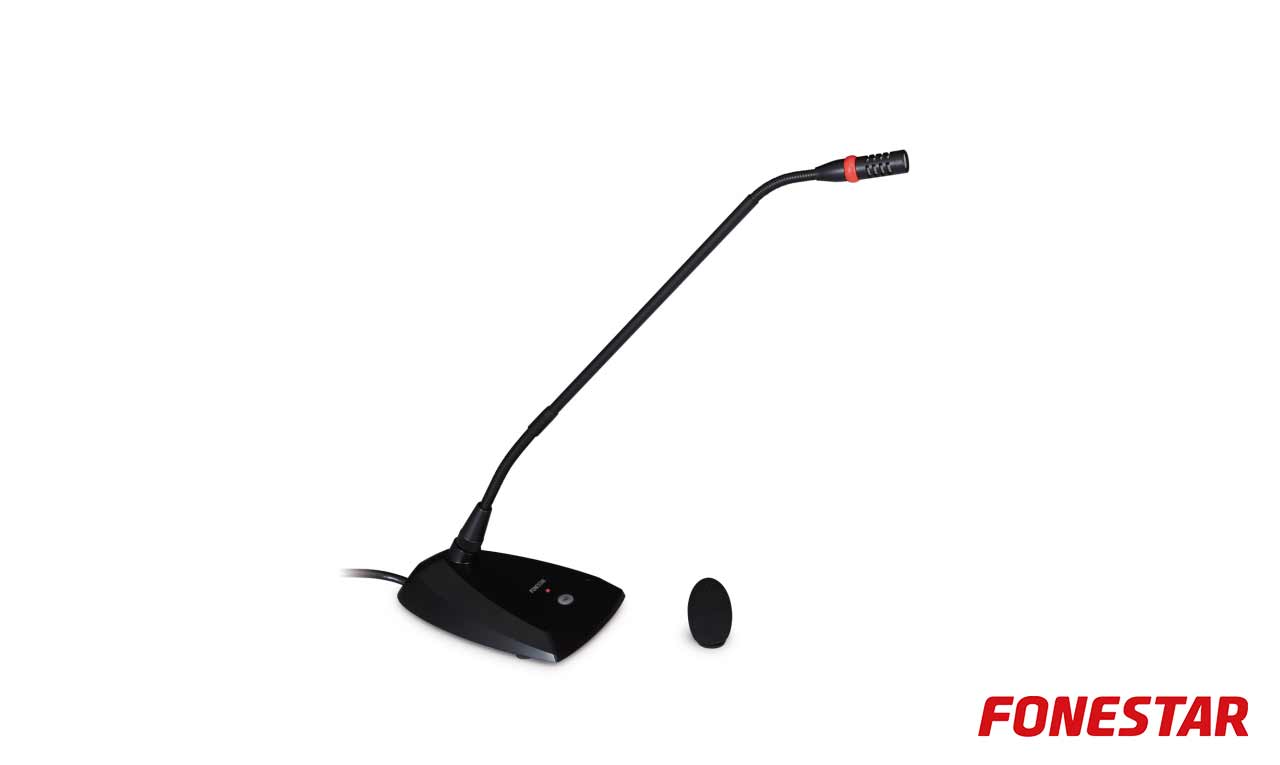

Ten Fonestar SCF-270D Delegate microphone
Delegate microphone for the Fonestar conference system SCF-250. This system allows connection of up to 64 microphones simultaneously. Heavy duty construction with metal microphone base.
MICROPHONE
Unidirectional electret condenser
RESPONSE
20-18,000 Hz
CONTROLS
Push-to-talk button
INDICATORS
LED ring and power indicator
INPUTS
Power supply and audio, 1.1 m male DIN 8 interconnection cable
OUTPUTS
Audio, interconnection cable
POWER SUPPLY
18 V DC, supplied by the control unit
DIMENSIONS
Gooseneck microphone: 390 mm height
Base: 115 x 45 x 160 mm depth
WEIGHT
0.9 kg
ACCESSORIES
1 x 2 m Y interconnection cable, male DIN 8 to female 2 DIN 8
Foam windshield
Additional information
| Brand | Fonestar |
|---|---|
| Microphone Features | Paging Microphone |
