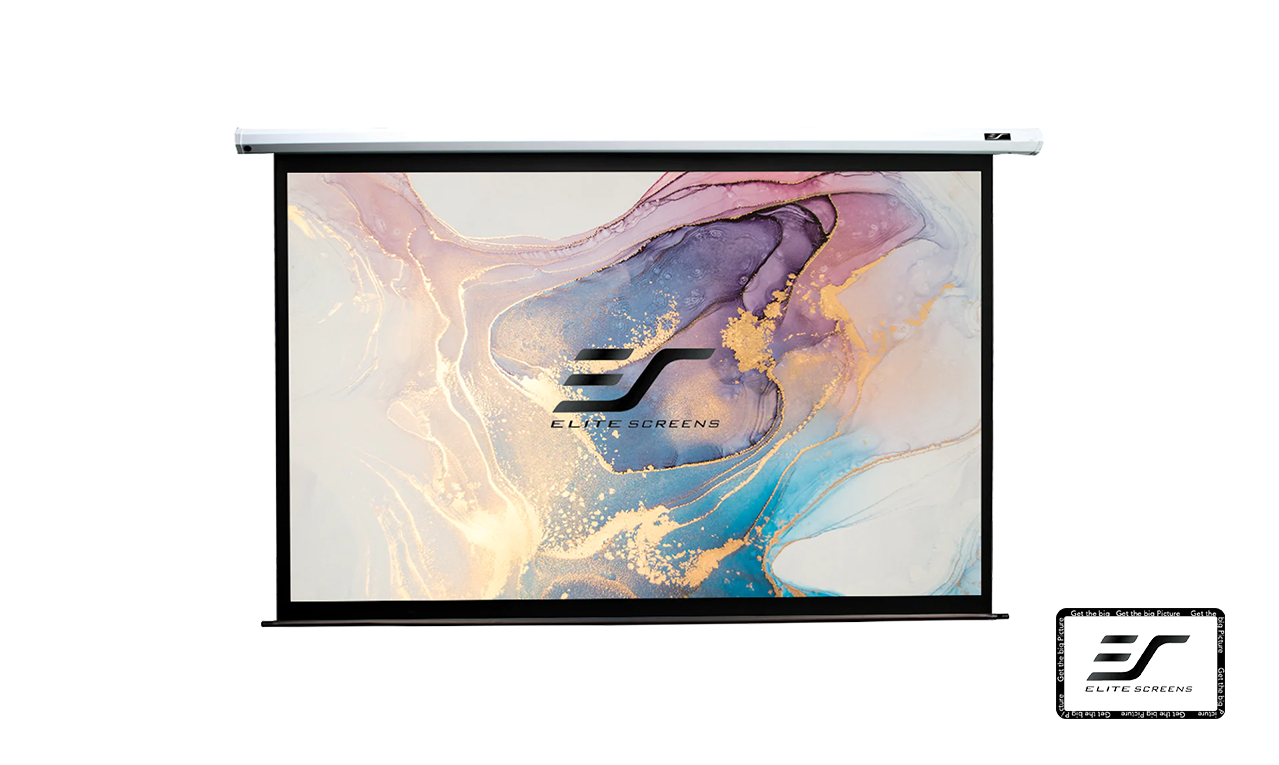

Elite Electric 125XH White Motorized Screen

Features



Screen Material

• 160° wide viewing angle
• Standard 4-black masking borders
• Matte White material is durable and easy to clean
• Available in 4:3, 16:9 and 16:10 aspect ratio
• Diagonal sizes ranging from 84″ – 128″



Simple Control Options

• Infrared (IR) remote control
• Detachable 3-way wall switch
• Built-in 5-12 volt trigger port (RJ-45) enables Drop/Rise operation to synchronize with the projector’s power cycle (V-max models only)
• Low-voltage internal IR/RF receivers
• Optional ZR800D IR Universal Remote Control, RF Remote, wireless 5-12 volt trigger, and In-wall switch



Installation

• Durable casing for wall/ceiling installations
• Bubble leveler included
• Ships fully assembled with 3-prong power connection ready to plug & play
• Built-in adjustable vertical limit switch to regulate drop/rise settings
• Optional in-ceiling trim kit and 6″, 12″, 18″ L brackets



Quality and Reliability

• Synchronous motor allows silent operation with extended operational longevity and low power consumption









Specifications

Diagonal Size	125″ (16:9)
Case Length (A)	3103mm
view Width (A1)	2769mm
Screen Width (A2)	2869mm
End Cap Screw Hole Distance (A3)	3048mm
Weight Bar Length (A4)	2956mm
Bottom Edge Distance (B3)	60mm
Screen Material to Weight Bar (B2)	1753mm
View Height (B1)	1557mm
Overall Height(B)	1846mm
End Cap Height (B4)	93mm
Screen Material to Wall Distance (C1)	17mm
End Cap Width (C2)	80mm
Power Cord Length (D)	1800mm
