Description

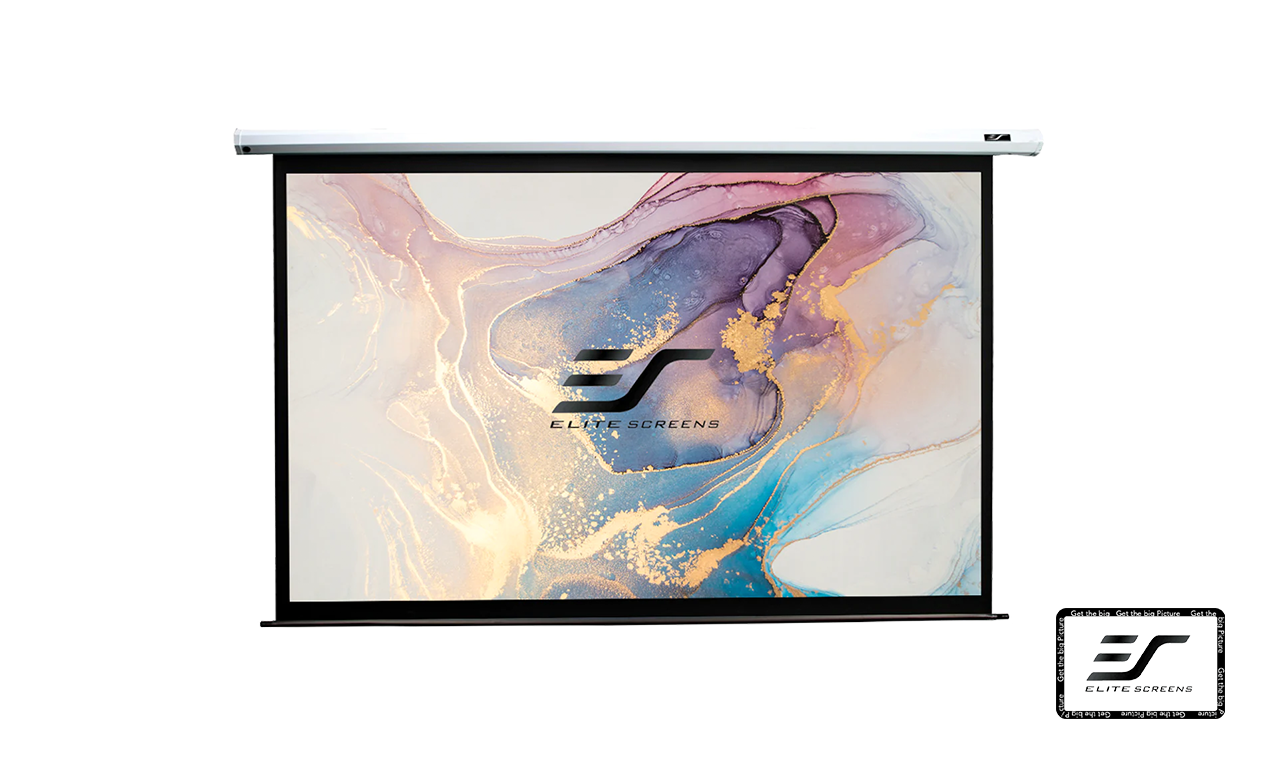

Elite Electric 120V White Motorized Screen

Features



Screen Material

• 160° wide viewing angle
• Standard 4-black masking borders
• Matte White material is durable and easy to clean
• Available in 4:3, 16:9 and 16:10 aspect ratio
• Diagonal sizes ranging from 84″ – 128″



Simple Control Options

• Infrared (IR) remote control
• Detachable 3-way wall switch
• Built-in 5-12 volt trigger port (RJ-45) enables Drop/Rise operation to synchronize with the projector’s power cycle (V-max models only)
• Low-voltage internal IR/RF receivers
• Optional ZR800D IR Universal Remote Control, RF Remote, wireless 5-12 volt trigger, and In-wall switch



Installation

• Durable casing for wall/ceiling installations
• Bubble leveler included
• Ships fully assembled with 3-prong power connection ready to plug & play
• Built-in adjustable vertical limit switch to regulate drop/rise settings
• Optional in-ceiling trim kit and 6″, 12″, 18″ L brackets



Quality and Reliability

• Synchronous motor allows silent operation with extended operational longevity and low power consumption









Specifications

Diagonal Size	120″ (4:3)
Case Length (A)	2773mm
View Width (A1)	2438mm
Screen Width (A2)	2538mm
Screw Hole Distance (A3)	2718mm
Weight Bar Length (A4)	2618mm
Bottom Edge Distance (B3)	60mm
View Height (B2)	1829mm
Overall Height(B)	2083mm
End Cap Height (B4)	93mm
Screen Material to Wall Distance (C1)	17mm
End Cap Width (C2)	80mm
Power Cord Length (D)	1800mm
