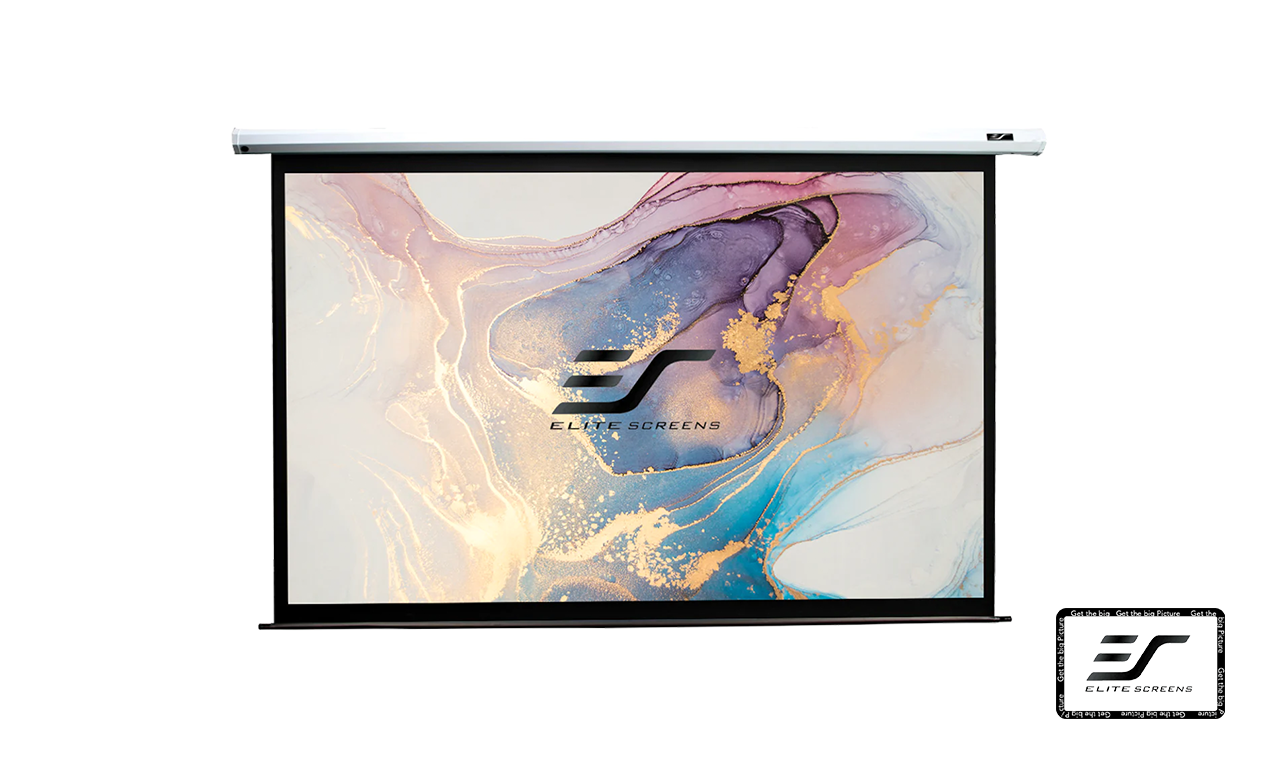

Elite Screens Electric 100XH


In stock

100″(16:9) 124.5cm height, 221.5cm wide MaxWhite White Motorised Screen

In stock

SKU: ELECTRIC100XH- Categories: ,


Elite Electric 100XH White Motorized Screen



Screen Material

  • 160° wide viewing angle
  • Standard 4-black masking borders
  • Matte White material is durable and easy to clean
  • Available in 4:3, 16:9 and 16:10 aspect ratio
  • Diagonal sizes ranging from 84″ – 128″

Simple Control Options

  • Infrared (IR) remote control
  • Detachable 3-way wall switch
  • Built-in 5-12 volt trigger port (RJ-45) enables Drop/Rise operation to synchronize with the projector’s power cycle (V-max models only)
  • Low-voltage internal IR/RF receivers
  • Optional ZR800D IR Universal Remote Control, RF Remote, wireless 5-12 volt trigger, and In-wall switch


  • Durable casing for wall/ceiling installations
  • Bubble leveler included
  • Ships fully assembled with 3-prong power connection ready to plug & play
  • Built-in adjustable vertical limit switch to regulate drop/rise settings
  • Optional in-ceiling trim kit and 6″, 12″, 18″ L brackets

Quality and Reliability

  • Synchronous motor allows silent operation with extended operational longevity and low power consumption

Spectrum Screen Dimensions ChartSpecifications

Diagonal Size 100″
Case Length (A) 2544mm
View Width (A1) 2214mm
Screen Width (A2) 2314mm
Screw Hole Distance (A3) 2489mm
Weight Bar Length (A4) 2394mm
Bottom Edge Distance (B3) 60mm
View Height (B1) 1245mm
Overall Height (B) 1551mm
(B2) 1458mm
End Cap Height (B4) 93mm
Screen Material to Wall Distance (C1) 17mm
End Cap Width (C2) 80mm
Power Cord Length (D) 1800mm



Elite Electric Series Screen right close up Elite Electric Series Screen left closeup
Elite Spectrum Screen top right Elite Spectrum series screen tilted view


Download Brochure (PDF)


Additional information


Elite Screens

Projector Aspect Ratio


Projector Screen Type

Projector Screen Width

190cm – 229cm
