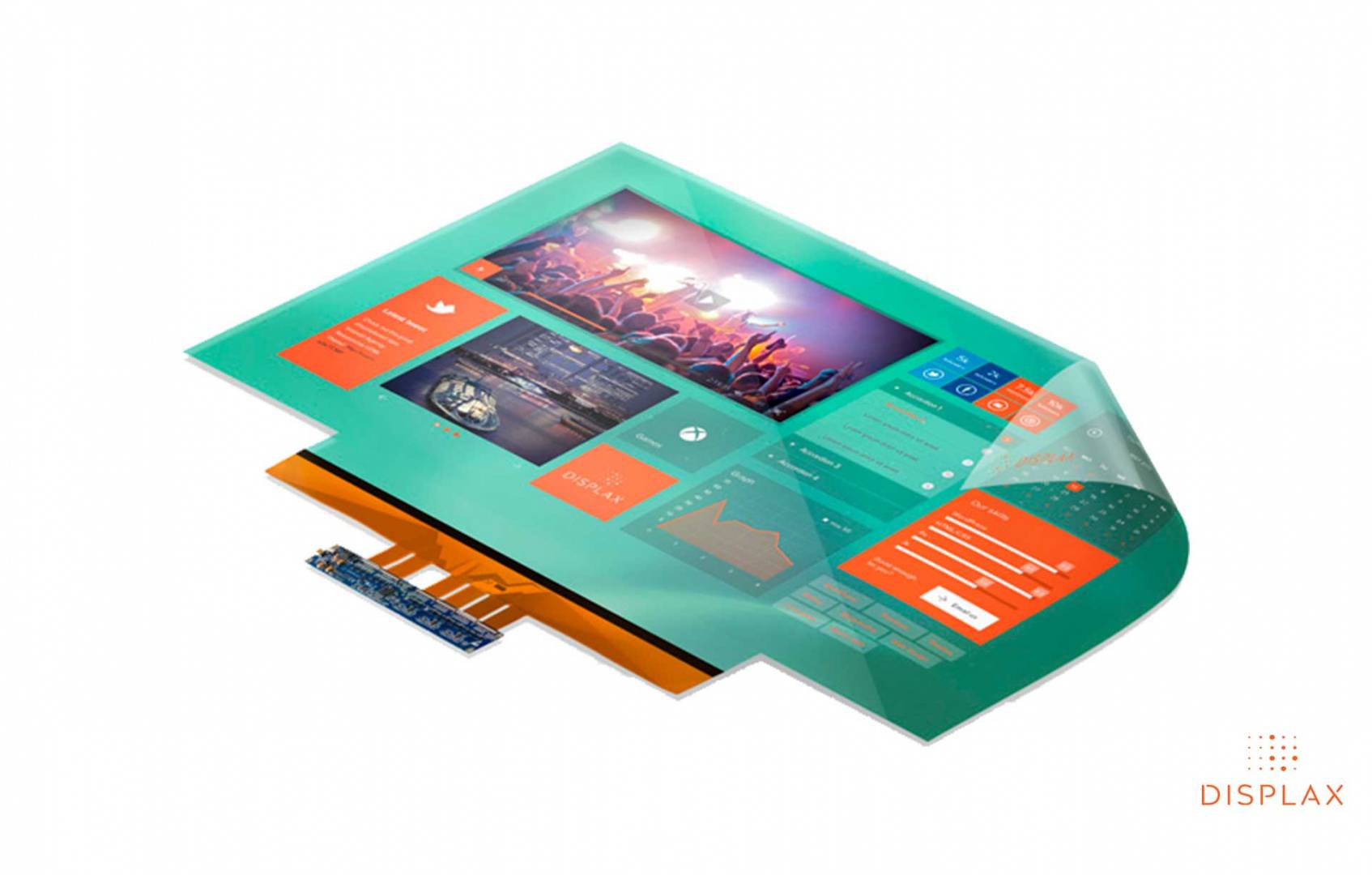

Displax Skin DualTouch - Doneo Malta
Proven technology
Dualtouch Skin is a reliable product, based on mature core technology. The architecture of Skin Dualtouch has thousands of units currently deployed and working continuously.
Easy to integrate
Skin Dualtouch touch sensor uses a very straightforward form factor, making it easy and quick to integrate in almost any structure. It features a single tail with three connectors which attach to a slim touch controller
One single cable
Skin Dualtouch requires only one single USB cable to handle both the data processing and the power. This makes designing the structure easier because you don’t have to worry about dual head USB cables or an extra cable for power supply.
SMOOTH EDGE TO EDGE GLASS SURFACE
40g
Touch controller
260g
Touch sensor
Lighting
Unnafected
Durability
No sensor wear
Resistant to liquids, dust, ice and UV, no deformation over time
Being a through glass touch technology, Skin Dualtouch is applied on one side of the glass while the users touch on the other. This means there is no wear of the touch sensor, it is vandal proof and can be used in harsh environments. It is uniquely suited for outdoor use or laboratory environments. If used in a public space and liquids are spilled over the glass, the touch technology is unaffected.
Permanent and removable
The touch sensor has a permanent version which enhances the display’s contrast and readability. The removable version best fits with temporary installations meaning the sensor can be reused a number of times.
4:3; 16:9 and special formats
Skin Dualtouch is available in standard 4:3 and 16:9 formats but custom made non-standard formats can also be manufactured. Contact us with specific requirements.
Turns non conductive surfaces touch
Apply the Skin Dualtouch on glass, wood or other non conductive materials to turn them tactile. The sensor is a flexible film, meaning it can be applied on curved surfaces as well as easily be integrated in your own custom structures. Skin Dualtouch enables flexibility and creativity of design.
Can be used with LCD/LED or Projection
The Skin Dualtouch can be used both with LCD or projection. Benefit from Full HD image quality and from the slim profiles and small bezels that state-of-the-art LED displays offer. Create affordable large format touch interfaces by using powerful projectors combined with Skin Dualtouch.
A SMOOTH TOUCH EXPERIENCE FOR LARGE FORMAT DISPLAYS
Glass thickness
Up to 15mm
Touch sensor thickness
100 micron
Touch accuracy
0,8% of sensor diagonal
XTR-Shield
A new proprietary noise filtering technology that brings the finger closer to the display. In return, the gap between sensor and display is minimized and parallax is no longer an issue. Additionally, the signal to noise ratio results in an enhanced, smooth and precise touch experience.
Advanced Calibration mode included
Create customized touchscreen installations. This feature gives the flexibility of using a sensor smaller than the display and control touch in just the sensor area. Or, alternatively, the option of having multiple displays in a grid and detect touch only in part of that display area.
HID
Native moltitouch support from OS & single touch
Native moltitouch support from OS & single touch
Windows
Android
Ubuntu
Mac OS X
Chrome OS
TOUCH MOUSE EMULATION
Digital sinage players
Windows embedded
Smart signage platform
BrightSign
