ControlSpace SP-24

Call for price

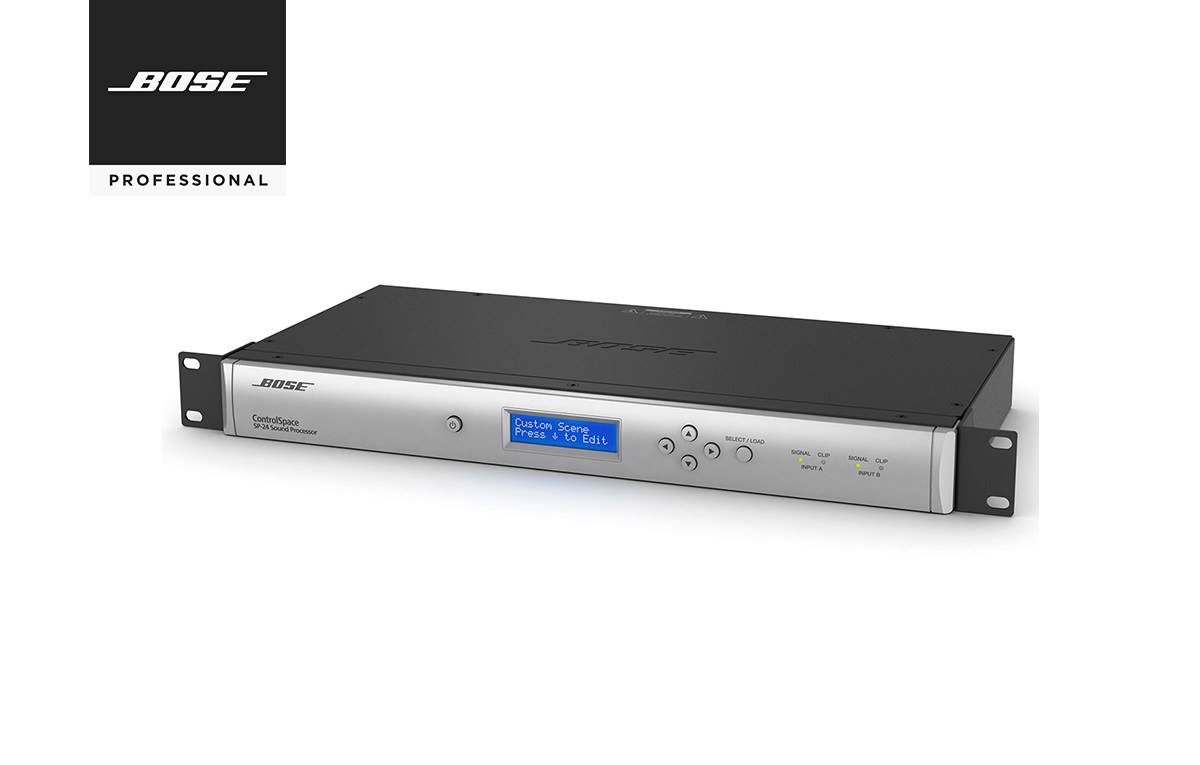

The Bose® ControlSpace® SP-24 sound processor makes optimizing 2×4 installed and portable sound systems easy.

SEND EMAIL QUERY

Description

Bose ControlSpace ESP-00 Series II – Doneo Malta

The Bose® ControlSpace® SP-24 sound processor makes optimizing 2×4 installed and portable sound systems easy. Use the purposefully simple front panel interface for basic operations, or the intuitive SP-24 Editor software for full access to all signal processing settings.

Features

Real-time control, and the ability to program and store custom scenes with the easy-to-use SP-24 Editor software

SP-24 Editor software provides complete access to all signal processing functions including custom channel routing, input and output 9-band dual equalization, band pass filters, delays, peak limiter, gain and signal polarity for full system control

Simplified front panel LCD menus and controls are purposely designed to make it easier to select preprogrammed scenes, gain and delay parameters, or quickly access Bose® loudspeaker presets

USB port enables plug-and-play PC access for system configuration, programming, signal level monitoring and firmware updates using the SP-24 Editor software

Extensive Bose professional loudspeaker library enables quick access to factory-created equalization curves while the SP-24 Editor software provides intuitive graphical tools for optimizing any passive or powered loudspeaker

XLR inputs (2) and outputs (4) for balanced connectivity to professional audio gear

Signal and clip LED indicators show the signal status of the input channels

Front panel lockout feature prevents unauthorized use

Applications

  • Auditoriums
  • Houses of worship
  • Live music performances
  • Restaurants and bars
  • Retail stores
  • Auxiliary zones

Specs

Technical Summary

Dynamic Range
107 dB (typical)

Sample Rate
48 kHz

Input Channels
2 channels

Output Channels
4 channels

Additional information

Brand

Bose
