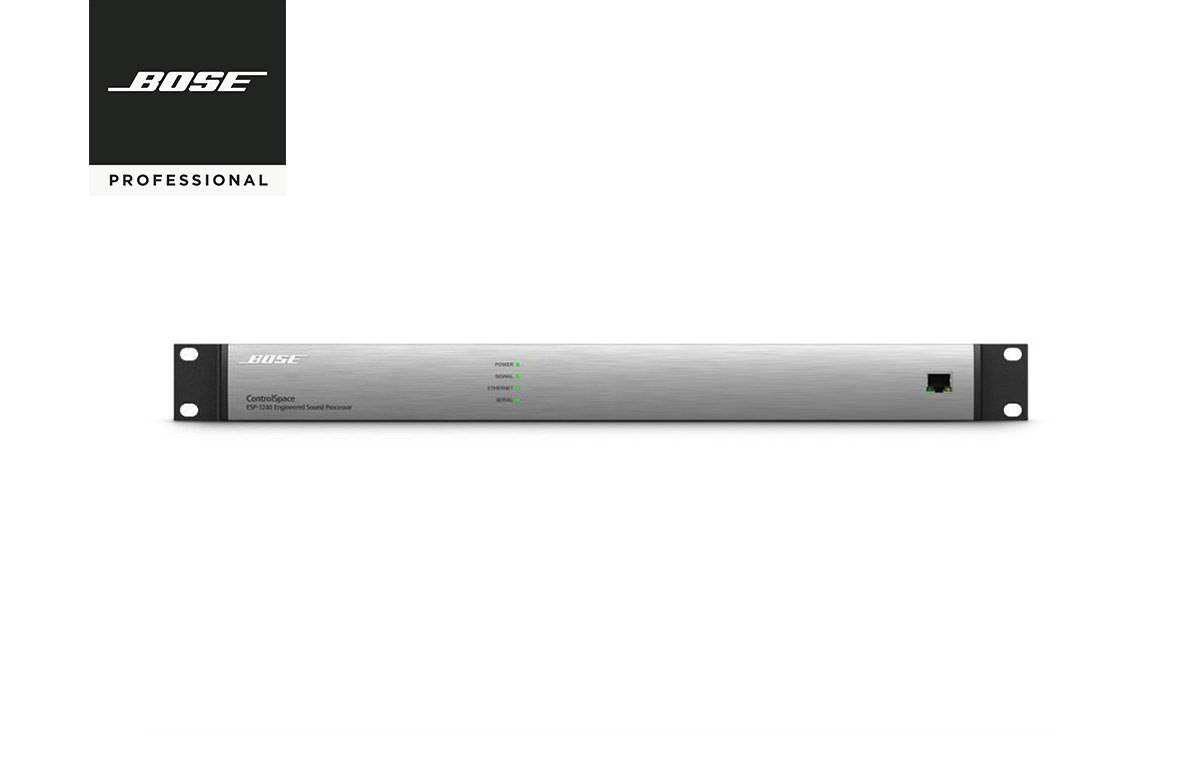

The Bose® ControlSpace® ESP-1240 is an open-architecture DSP with 12×4 fixed analog audio, built-in 8-channel ESPLink output & a rear-panel digital expansion slot.
The Bose® ControlSpace® ESP-1240 engineered sound processor is an open-architecture DSP with 12×4 fixed analog audio, built-in 8-channel ESPLink output and a rear-panel digital expansion slot offering IP-based network audio and control card options. This model meets today’s strict requirements for high-quality signal processing and control in a cost-effective package. The ESP-1240 is designed for a wide variety of applications ranging from small self-contained projects to larger networked applications.
High-quality analog circuitry offers both mic and line-level I/O, operates with ultra-low noise and 115 dB dynamic range
Advanced digital signal processing supports audio at 48 kHz sample rate/24-bit, uses a floating-point open architecture DSP and operates at low latencies for sound system precision
Expansion card slot supports the use of accessory networking cards, allowing digital audio to be sent and/or received from other compatible products
Optional Dante™ media networking card allows single rack-space ESP products to closely integrate with Bose or other manufacturers’ products and systems
Bose® ControlSpace® Designer™ software enables a large set of signal processing modules, such as automatic mic mixing, multiband graphic and parametric EQs, Bose loudspeaker libraries, signal generators, routers, mixers, AGCs, duckers, gates, compressors, source selectors and delays
Front panel RJ-45 Ethernet connection enables localized configuration and monitoring, while enabling network passthrough when using a rear-panel network option card
Built-in Bose ESPLink output sends up to 8 channels of uncompressed digital audio to ESPLink-equipped Bose PowerMatch® amplifiers
A variety of control options – ControlSpace ESP products are compatible with the programmable Bose CC-64 and CC-16 controllers and three simplified zone volume interfaces, as well as potentiometers and switches built by other manufacturers
Integration with industry-standard control systems using a comprehensive serial protocol through onboard RS-232 and Ethernet ports
Signal Processor
32-bit fixed/floating-point DSP + ARM, 456 MHz
Dynamic Range
> 115 dB, A-weighted 20 Hz – 20 kHz, analog through
Input Channels 12 analog (balanced, mic/line level), 16 digital (via option card)
Output Channels
4 analog (balanced, line level), 8 ESPLink, 16 digital (via optional card)
PC Configuration Software
ControlSpace® Designer™ software
| Brand | Bose |
|---|---|
| Prod-Type | Network DSP |
