Pre-damped, fire-rated dual-layer gypsum/SBR sound barrier for walls and ceilings. Three options for depth of rubber layer.
AEFast Wall

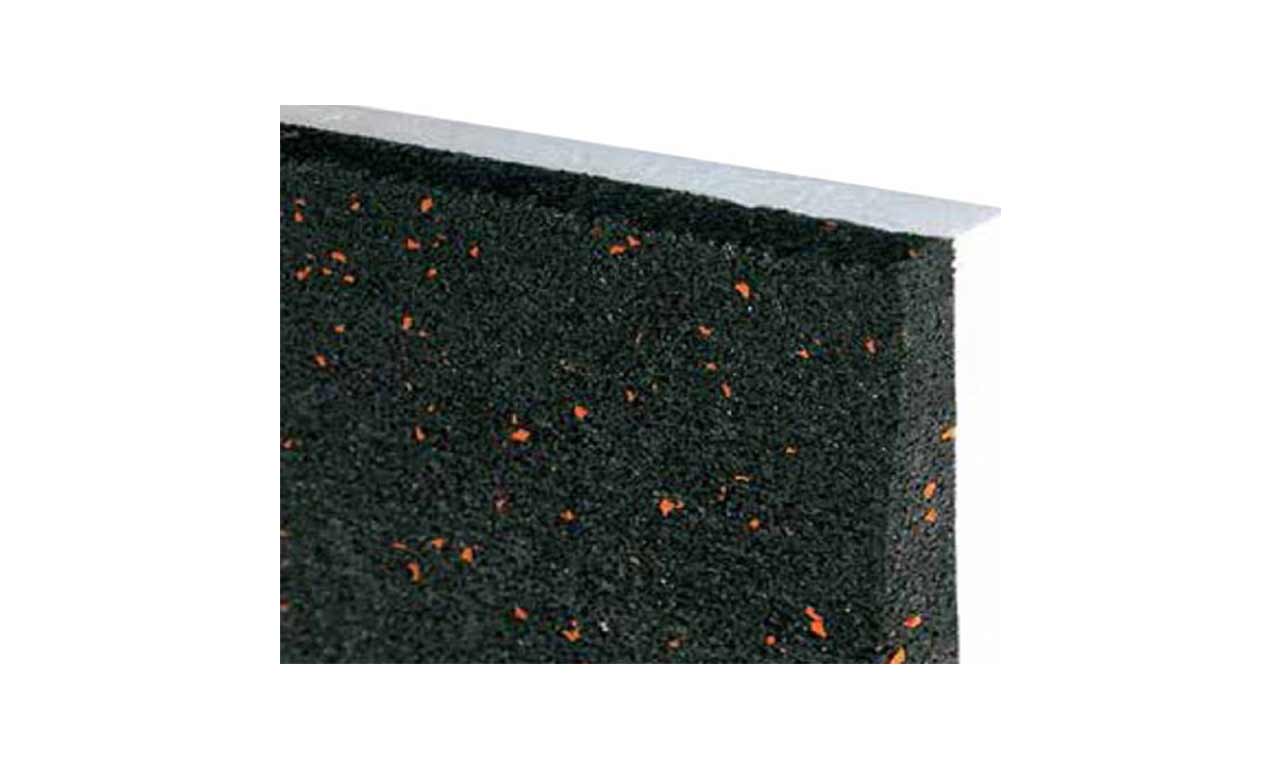

Dual-Layer Damped Sound Barrier – SBR with Gypsum Surface
SBR is derived from recycled ELT (end-of-life-tyres), from which resulting ground pellets are bound together into sheets by polyurethanes. The elastic properties of rubber provide a degree of acoustic damping which improves sound barrier performance at low frequencies, this being an area where the performance of gypsum is weak.
Applications:

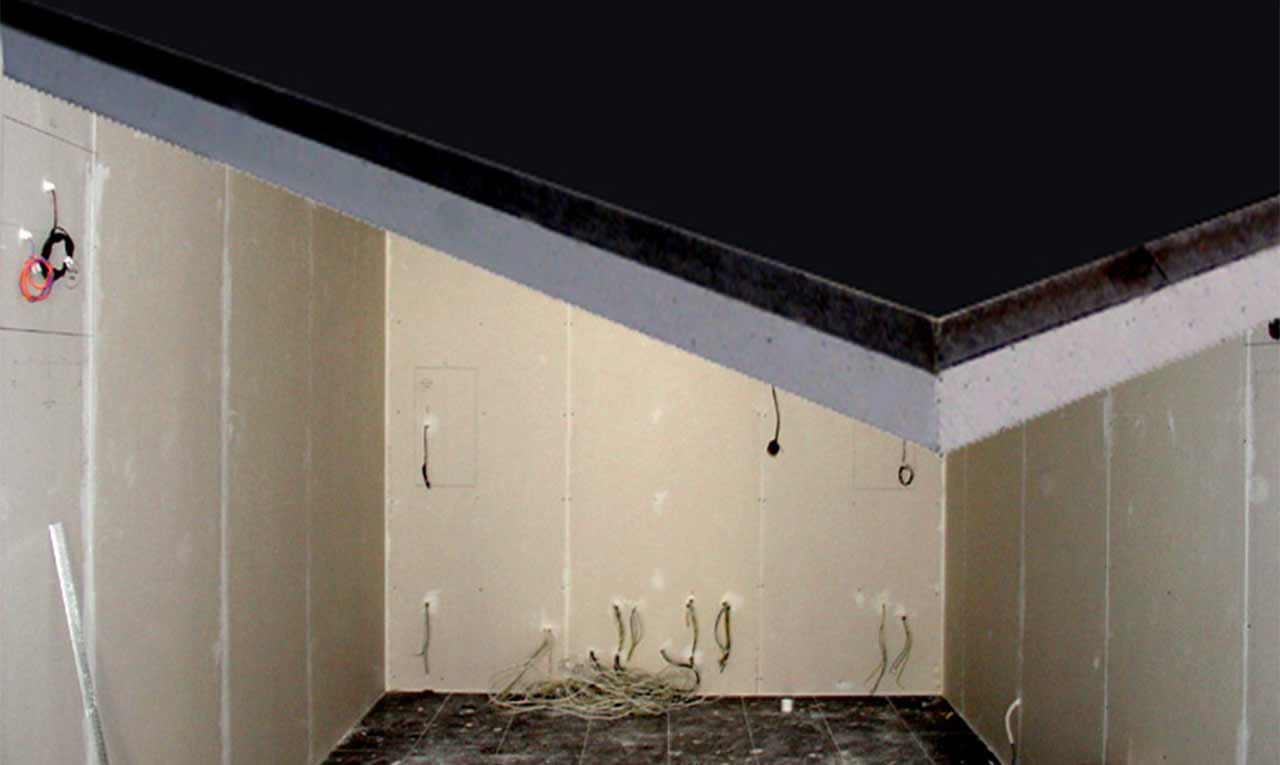

Soundproofing of vertical partitions and ceilings.
Model | Composition | Weight |
AEFast Wall 125/40 | 4 mm SBR / 12.5 mm Gypsum | 11.00 Kg/m² |
AEFast Wall 125/100 | 10 mm SBR / 12.5 mm Gypsum | 15.50 Kg/m² |
AEFast Wall 125/200 | 20 mm SBR / 12.5 mm Gypsum | 23.00 Kg/m² |
Panel Size :
120 x 200 cm – all models
Material:
Vulcanised Rubber / Gypsum
Surface Colour:
Off-white
Sound Barrier:
51-65 dB (See Data Sheet)
Fire Rating:
B-s1, d0 (EN 13501-1)
Thermal Conductivity:
0.1498 W/mK
