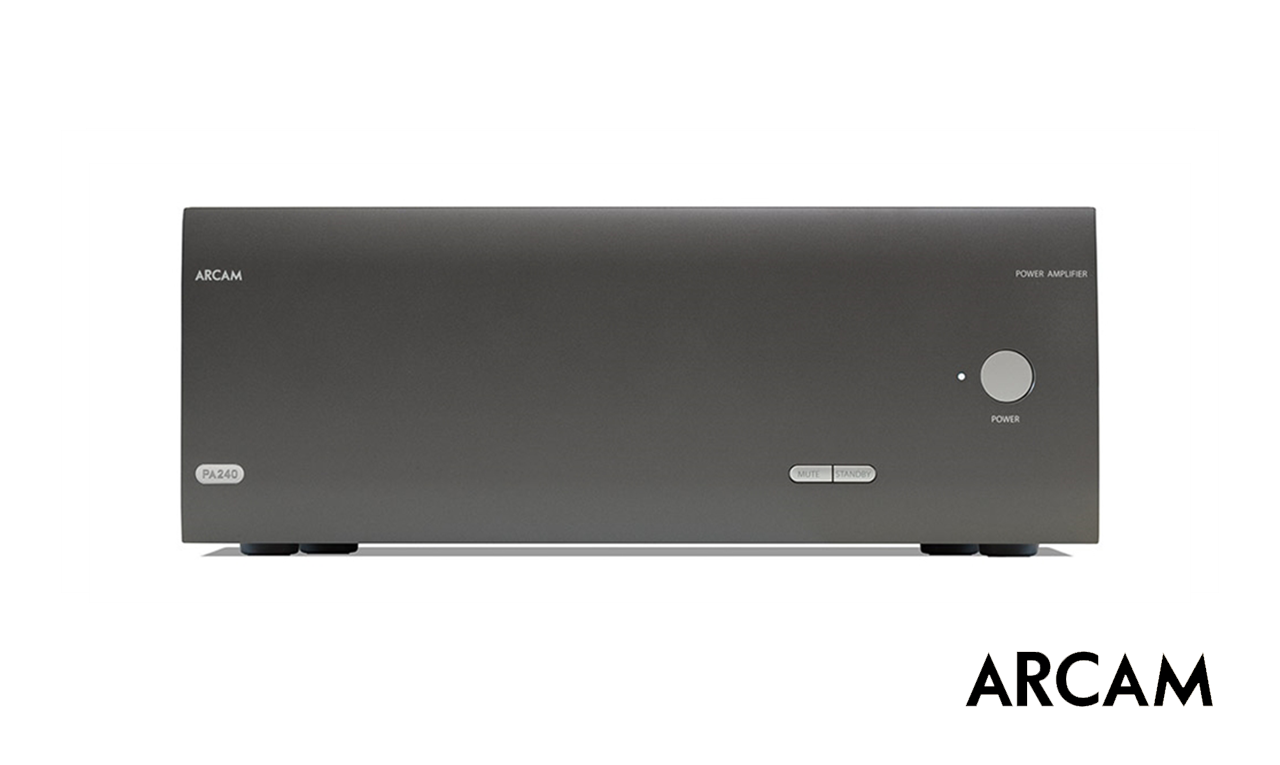

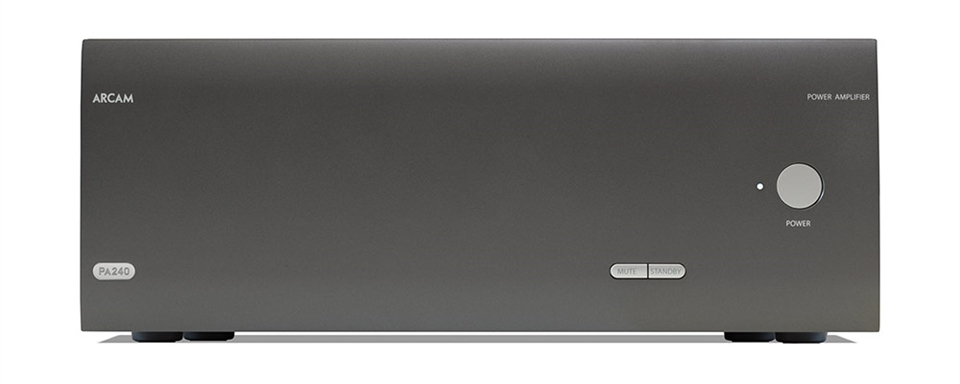

Class G Power Amplifier – Arcam PA240

2,399

The PA240 is a high-performance power amplifier that delivers 2 channels of efficient Class G amplification. Designed to offer the greatest flexibility and power without compromising on control.

SEND EMAIL QUERY

Description

PA240

Class G Power Amplifier

The PA240 is a high-performance power amplifier that delivers 2 channels of efficient Class G amplification. With an impressive 380W per channel, the PA240 is designed to offer the greatest flexibility and power without compromising on control.

Featuring the best-in-class components including a toroidal based power supply, acoustically damped chassis, paralleled transistor output stages and exceptionally low levels of distortion, the PA240 masters the reproduction of music with all its originality and detail for an unmatched level of sound quality and clarity.

PRODUCT DETAILS

  • 2 Channel Power Amplifier
  • 2 x 225W Class G amplification (8ohm, 20Hz-20kHz, 0.2% THD)
  • 1 x 790W Class G bridged mode (8ohm, 20Hz-20kHz, 0.2% THD)
  • Class G amplification with 50W of class A operation
  • Toroidal transformer
  • Stereo, Dual Mono or Bridged operation
  • Ethernet, RS232 control
  • Switchable RCA or balanced XLR inputs

SPECIFICATIONS

Continuous power output at 0.2% THD per channel


2 channels driven, 4Ω / 8Ω, 20Hz – 20kHz380W/225W
1 channel driven, 8Ω bridged mode, 20-20kHz790W
Harmonic distortion, 80% power, 8Ω at 1kHz0.001%

Inputs

 RCA Type | XLR Type
Input sensitivity 200W / 8Ω1.15V RMS | 2.3V RMS
Signal/Noise ratio (A-wtd) 50W / 8Ω110dB
Input impedance10kΩ
Frequency response20 – 20kHz +/-0.05dB


General


Mains voltage110–120V or 220–240V, 50–60Hz
Power consumption (maximum)1.5kW
Power consumption (idle, typical)90W (Thermal dissipation approx. 340 BTU/hour)
Power consumption (standby)

<0.5W

Dimensions W x D x H (including feet,
control knob and speaker terminals)
433 x 425 x 177mm
Weight (net)18kg
Weight (packed)19.7kg
EAN6925281956768

GET THE APP

Control the UPnP audio and basic function of this product with your iPad, iPhone or iPod Touch and the FREE MusicLife App! The Arcam control app is now available on Android.

Additional information

Brand

Arcam

Product Type

Power Amplifier

Amplifier Connectivity

Network Port, USB, 2 Channel
