CHRT TV Ceiling Hinge & Telescope

Call for price

For screens from 40” to 75” up to 90° out of a ceiling before lowering the screen between 500mm (19.6”) and 750mm (29.5”).

SEND EMAIL QUERY

Description

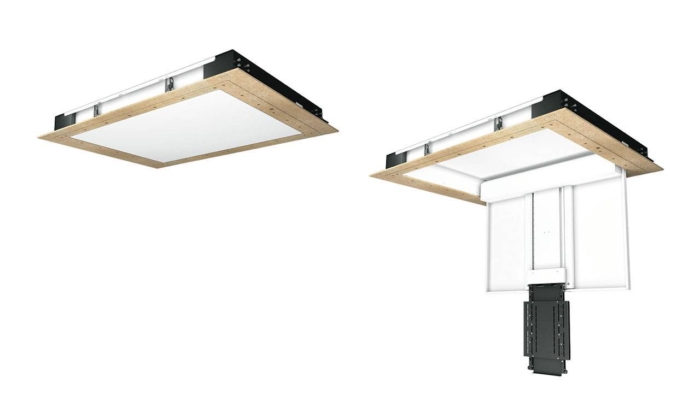

CHRT

TV CEILING HINGE & TELESCOPE

The CHR Range is our latest generation of TV Ceiling Hinge with Telescope mechanisms, suitable for hinging screens from 40” to 75” up to 90° out of a ceiling before lowering the screen between 500mm (19.6”) and 750mm (29.5”) (mechanisms size dependant). Fully concealable within the ceiling cavity thanks to its Plaster In Edge, the CHRT Range is also available without telescope function (CHR), with a standalone swivel function (CHRS) or a combined swivel and telescope (CHRST).

  • Self adjusting limit switches in the closed position means that product set up is now even quicker and easier than ever before
  • An MDF “Plaster In Edge” allows for a neat installation into the ceiling, eliminating any visible on ceiling flange around the mechanism, with only the smallest of shadow gaps around the lid when closed
  • The CHR units are delivered ready to install as one whole unit, reducing the chance of errors upon installation and streamlining the fitting procedure
  • Shipped with both mechanical and electrical recovery options, ensuring that in the event of a 3rd party control issue the system can be safely accessed.
PRODUCT CODECHRT4CHRT5CHRT6CHRT7CHRT8CHRT9
CONTROL OPTIONSRS232 / CONTACT CLOSURE / IRRS232 / CONTACT CLOSURE / IRRS232 / CONTACT CLOSURE / IRRS232 / CONTACT CLOSURE / IRRS232 / CONTACT CLOSURE / IRRS232 / CONTACT CLOSURE / IR
FINISH (CUSTOM AVAILABLE)SATIN WHITE PAINT – RAL9910SATIN WHITE PAINT – RAL9910SATIN WHITE PAINT – RAL9910SATIN WHITE PAINT – RAL9910SATIN WHITE PAINT – RAL9910SATIN WHITE PAINT – RAL9910
HEIGHT WITHIN CEILING210MM(8.3″)210MM(8.3″)210MM(8.3″)210MM(8.3″)260MM (10.2″)260MM (10.2″)
MAX SCREEN DIMENSIONS (HXWXD)680 X 1130 X 100MM (26.8 X 44.5 X 3.9″)800 X 1330 X 100MM (31.5 X 52.4 X 3.9″)920 X 1530 X 100MM (36.2 X 60.2 X 3.9″)990 X 1730 X 100MM (39 X 68.1 X 3.9″)1110 X 1980 X 150MM (43.7 X 78 X 5.9″)1230 X 2230 X 150MM (48.4 X 87.8.7 X 5.9″)
MAX SCREEN WEIGHT65KG (143LBS)45KG (99LBS)95KG (319LBS)110KG (242LBS)110KG (242LBS)110KG (242LBS)
MECHANISM WEIGHT (APPROX)115KG (253LBS)130KG (286LBS)145KG (319LBS)170KG (374LBS)200KG (440LBS)220KG (484LBS)
MOVEMENT TYPEMOTORISEDMOTORISEDMOTORISEDMOTORISEDMOTORISEDMOTORISED

Additional information

Bracket Type

TV Ceiling Hinge, Motorised
