Caymon WPR606R 19″ rack cabinet

349.80

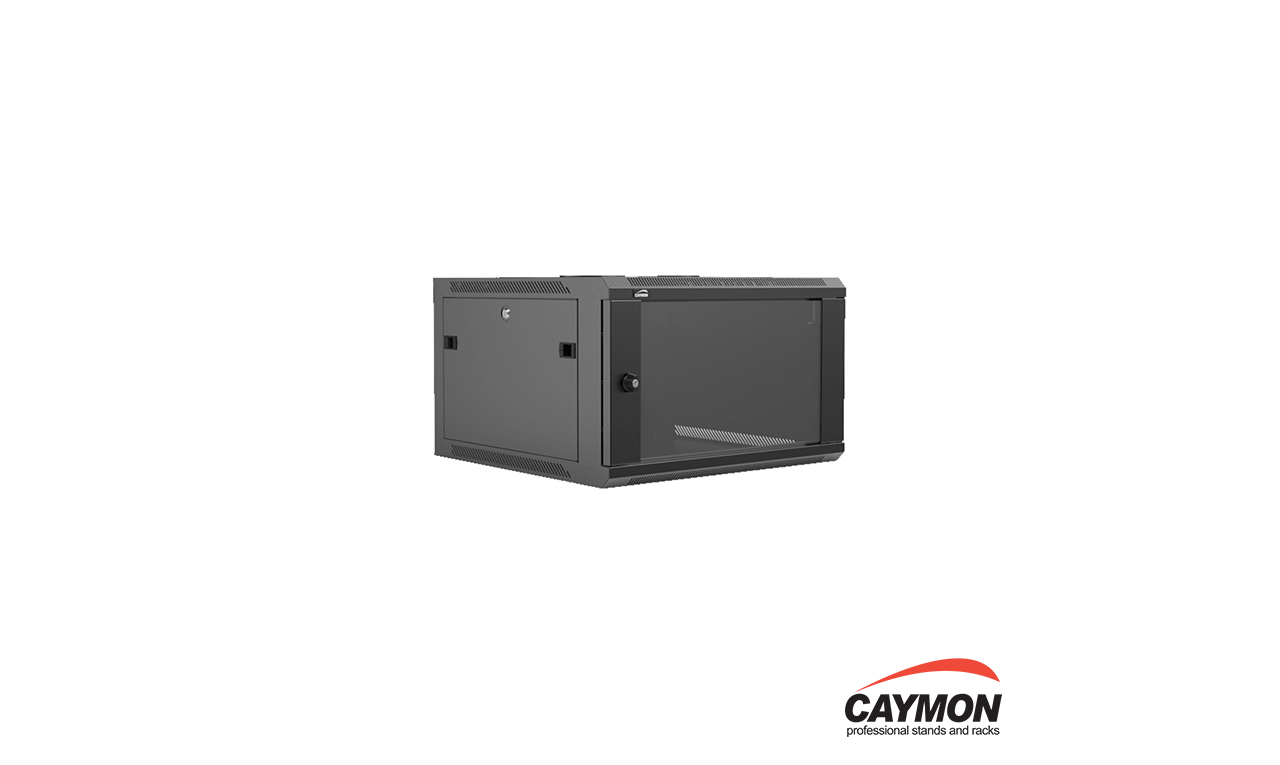

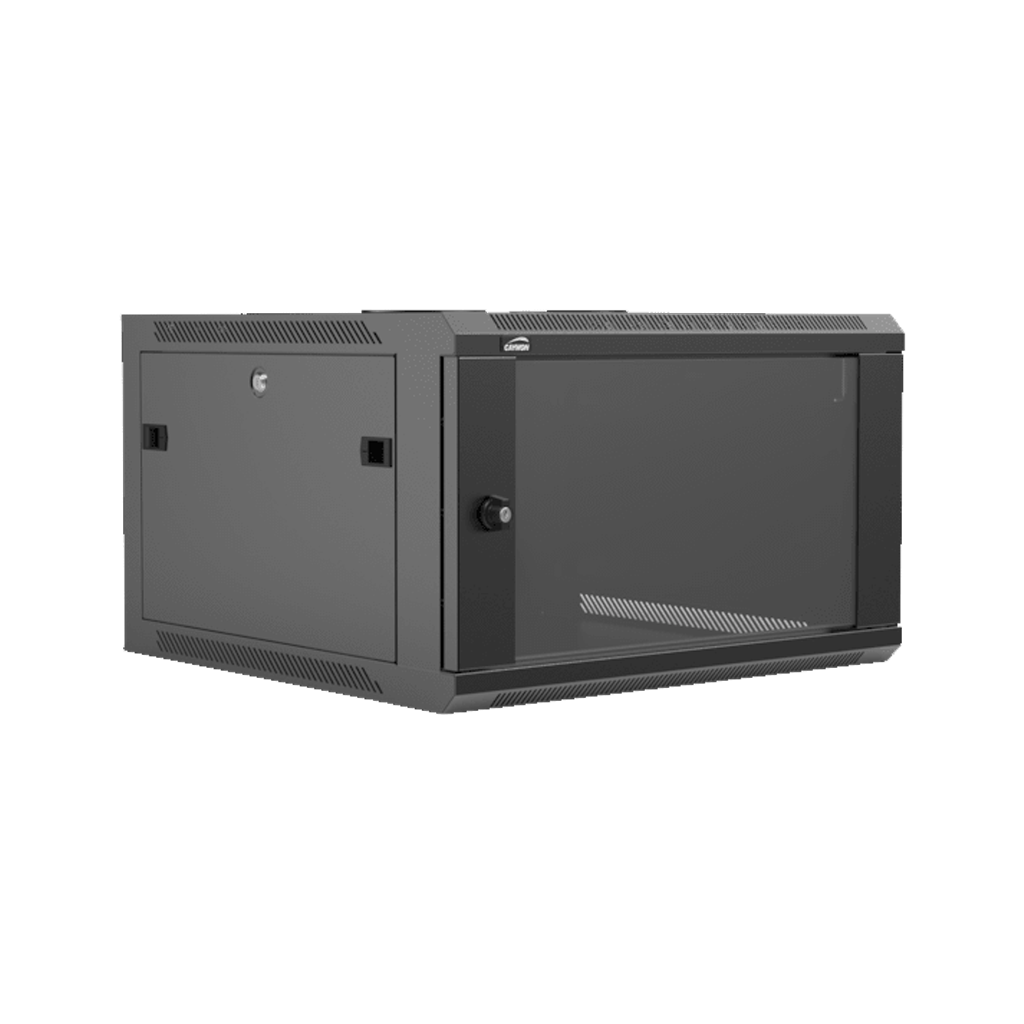

Caymon Rack Cabinet. 6 unit cabinet. Ventilation grid on top. Removable sides for easy installing & cabling. Tempered glass door with keylock.

SEND EMAIL QUERY

Description

WPR606R

19" wall mount rack - 6 unit - 600mm depth

wpr606-black

Highlights

  • Stores up to 6 units of 19” Equipment
  • Integrated ventilation grid on top
  • Removable sides for easy installing & cabling

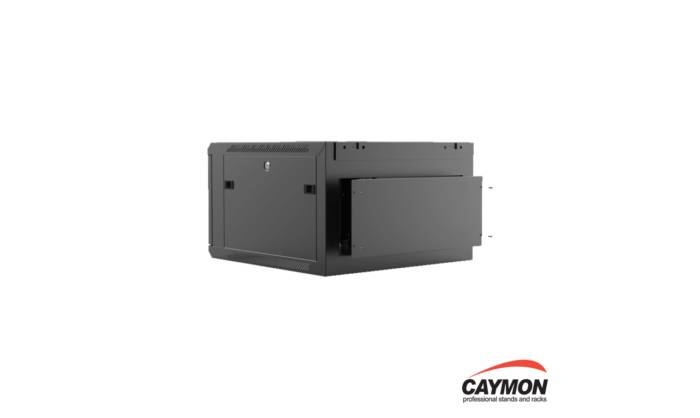

  • Removable rear panel
  • Punched square holes for use with snap-in cage nuts
  • Front in depth adjustable 19” profiles (max 560 mm)
  • Loading capacity of 60 kg
  • Cable entry on top, back & bottom (closable)
  • Tempered glass door with keylock
  • Keylock with butterfly handle


The WPR606 is a professional 19” wall mount metal rack compliant to ANSI/EIA RS-310D, DIN41491, IEC 60297 standards. It is a solid construction with a cold-rolled steel 1,5 mm thick frame and 1,2 mm thick plates. The WPR606 comes fully assembled and can easily be mounted on the wall. The 19” mounting profile with punched square holes for use with snap-in cage nuts in combination with the printed unit measurement indicators ensure easy fitting of the equipment.

The tempered smokey grey glass door is fitted with a key lock to keep the equipment only accessible for authorized persons. The removable sides and back panel allow easy installing and cabling of the equipment while the in depth adjustable 19” profiles provide great flexibility for installing equipment depending on its depth.

PRODUCT FEATURES
Dimensions600 x 368 x 600 mm (W x H x D)
Unit height6 HE
Weight21.69 kg
ColoursBlack (RAL9004)
Max. load60 kg
Max. usable depth560 mm
AccessoriesIncluded10 x Cage nuts + screws
  2 x key for front door
  4 x Key for sidepanel lock
  1 x Allen key
  1 x WPR60LR
 OptionalKM600 – M6 Cage nuts
  KS600 – M6 x 16 mm bolt DIN7985 Black
  WPR10RF – Roof fan 120×120 mm
  SPR10DC – Dust cover brush
  WPR60FS – Fixed shelf
  WPR60LR – L-Rail pair
  SS160 – Sliding shelf
Play Video

Additional information

Brand

Caymon

Racks

Racks & stands

Bracket Type

Racks/Cabinet

Rack/Cabinet Type

Cabinet

Model

WPR406R/B, WPR406R/W
