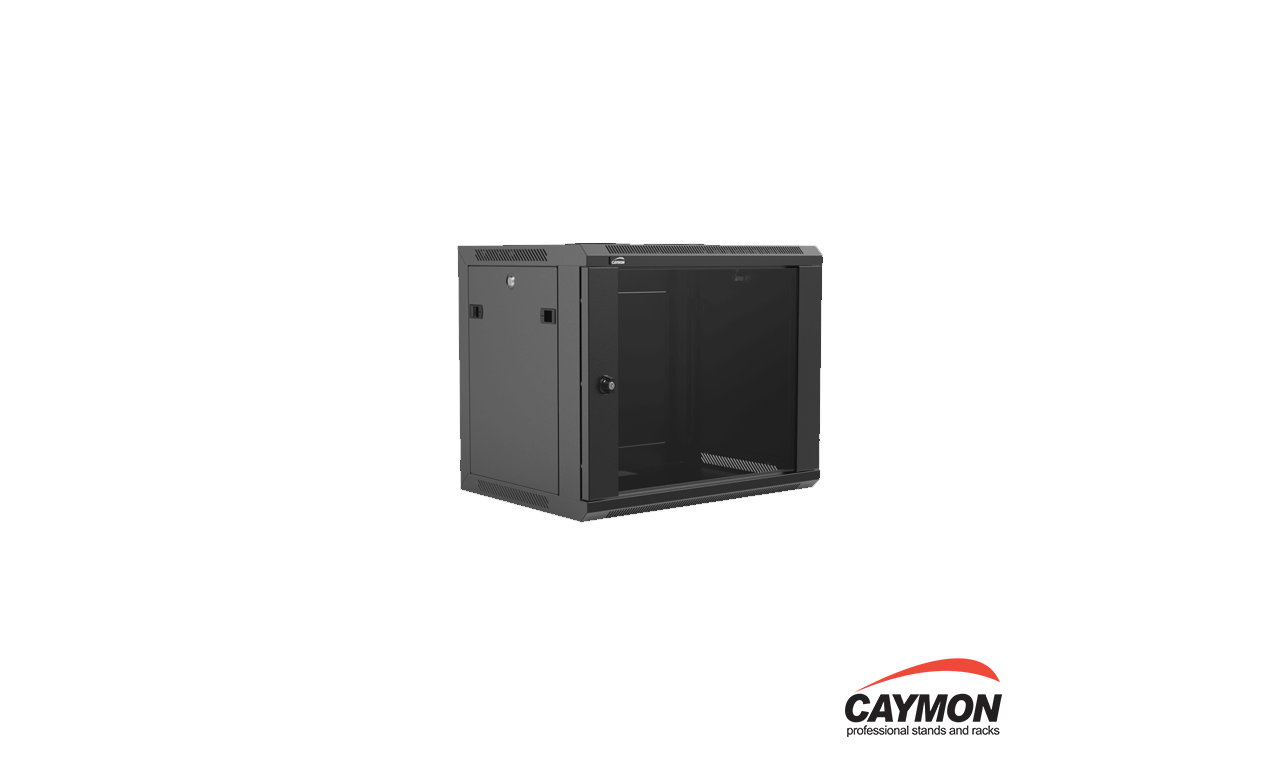

Caymon Rack Cabinet. 9 unit cabinet. Ventilation grid on top. Removable sides for easy installing & cabling. Tempered glass door with keylock.
Description
WPR409R
19" wall mount rack - 9 unit - 450mm depth
Highlights
- Stores up to 9 units of 19” Equipment
- Integrated ventilation grid on top
- Removable sides for easy installing & cabling
- Removable rear panel
- Punched square holes for use with snap-in cage nuts
- Front in depth adjustable 19” profiles (max 410 mm)
- Loading capacity of 60 kg
- Cable entry on top, back & bottom (closable)
- Tempered glass door with keylock
- Keylock with butterfly handle
The WPR409R is a professional 19” wall mount metal rack compliant to ANSI/EIA RS-310D, DIN41491, IEC 60297 standards. It is a solid construction with a cold rolled steel 1,5 mm thick frame and 1,2 mm thick plates. The WPR409R comes fully assembled and can easily be mounted on the wall. The 19” mounting profile with punched square holes for use with snap-in cage nuts in combination with the printed unit measurement indicators ensure easy fitting of the equipment. The tempered smokey grey glass door is fitted with a keylock to keep the equipment only accessible for authorized persons. The removable sides and back panel allow easy installing and cabling of the equipment while the in depth adjustable 19” profiles provide great flexibility for installing equipment depending on its depth.
| PRODUCT FEATURES | ||||
|---|---|---|---|---|
| Dimensions | 600 x 501 x 450 mm (W x H x D) | |||
| Unit height | 9 HE | |||
| Weight | 22.3 kg | |||
| Max. load | 60 kg | |||
| Max. usable depth | 410 mm | |||
| Colours | Black (RAL9004) | |||
| White (RAL9003) | ||||
| Accessories | Included | 10 x Cage nuts + screws | ||
| 2 x key for front door | ||||
| 4 x Key for sidepanel lock | ||||
| 1 x Allen key | ||||
| 1 x WPR45LR | ||||
| Optional | KM600 – M6 Cage nuts | |||
| KS600 – M6 x 16 mm bolt DIN7985 Black | ||||
| WPR45FS – Fixed shelf | ||||
| WPR45LR – L-Rail pair | ||||
| WPR10RF – Roof fan 120×120 mm | ||||
| SPR10DC – Dust cover brush | ||||
| SS160 – Sliding shelf | ||||
Play Video
Additional information
| Brand | Caymon |
|---|---|
| Racks | Racks & stands |
| Bracket Type | Racks/Cabinet |
| Rack/Cabinet Type | Cabinet |
| Model | WPR409R/B, WPR409R/W |
