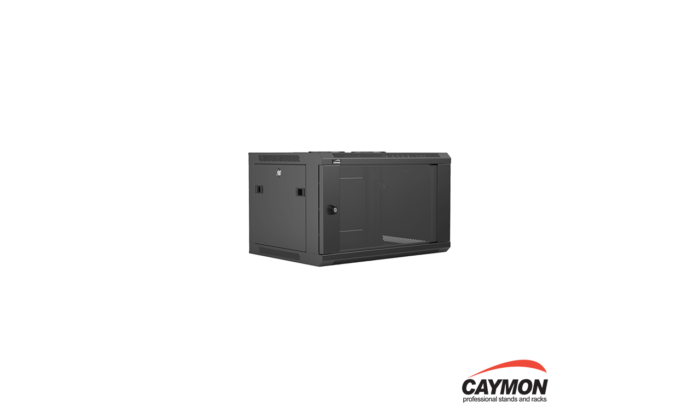

Caymon WPR406R 19″ rack cabinet


Caymon Rack Cabinet. 6 unit cabinet. Ventilation grid on top. Removable sides for easy installing & cabling. Tempered glass door with keylock.




19" wall mount rack - 6 unit - 450mm depth


  • Stores up to 6 units of 19” Equipment
  • Integrated ventilation grid on top
  • Removable sides for easy installing & cabling
  • Punched square holes for use with snap-in cage nuts
  • Front in depth adjustable 19” profiles (max 410 mm)
  • Loading capacity of 60 kg
  • Cable entry on top, back & bottom (closable)
  • Removable rear panel
  • Keylock with butterfly handle

The WPR406R is a professional 19” wall mount metal rack compliant to ANSI/EIA RS-310D, DIN41491, IEC 60297 standards. It is a solid construction with a cold rolled steel 1,5 mm thick frame and 1,2 mm thick plates. The WPR406R comes fully assembled and can easily be mounted on the wall. The 19” mounting profile with punched square holes for use with snap-in cage nuts in combination with the printed unit measurement indicators ensure easy fitting of the equipment. The tempered smokey grey glass door is fitted with a keylock to keep the equipment only accessible for authorized persons. The removable sides and back panel allow easy installing and cabling of the equipment while the in depth adjustable 19” profiles provide great flexibility for installing equipment depending on its depth.


Dimensions600 x 368 x 450 mm (W x H x D)
Unit height6 HE
Max. usable depth410 mm
Max. load60 kg
Weight18.5 kg
ColoursBlack (RAL9004)
 White (RAL9003)
AccessoriesIncluded2 x key for front door
  4 x Key for sidepanel lock
  10 x Cage nuts + screws
  1 x Allen key
  1 x WPR45LR
 OptionalWPR45FS – Fixed shelf
  WPR45LR – L-Rail pair
  WPR10RF – Roof fan 120×120 mm
  SPR10DC – Dust cover brush
  KM600 – M6 Cage nuts
  KS600 – M6 x 16 mm bolt DIN7985 Black
  SS160 – Sliding shelf
Play Video

Additional information




Racks & stands

Bracket Type


Rack/Cabinet Type



WPR406R/B, WPR406R/W
