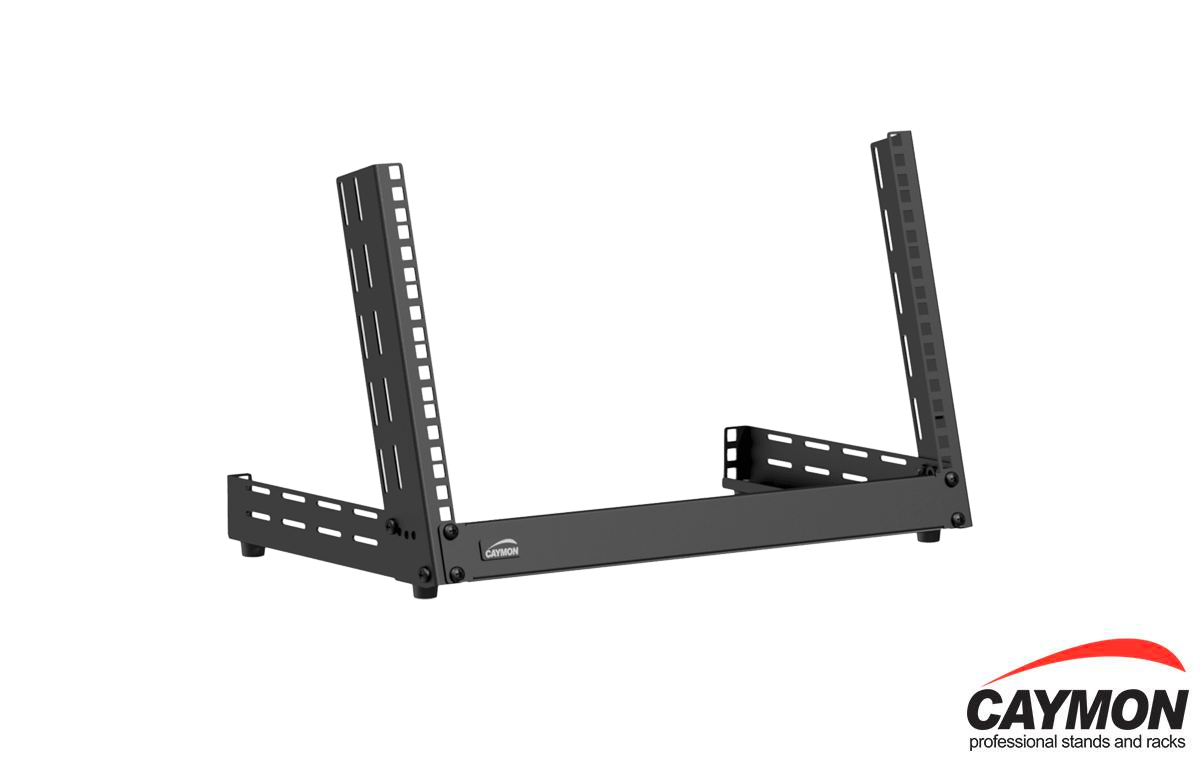

Caymon Desktop open frame rack – 6 units – Adjustable angle 0°~15°
Description
TPR306A
Desktop open frame rack - 6 units - Adjustable angle 0°~15°
Highlights
- Stores up to 6 units of 19” Equipment
- Punched square holes for use with snap-in cage nuts
- 2.0 mm thick cold rolled steel frame
- Easy assembly in 5 minutes
- Ships as flat-down package
- Desktop standing use
- Slanted front for optimal stability and equipment viewing
- Perforated sides for cable guiding or accessories mounting
- 0° – 15° adjustable angle
- 1 unit backside mounting possibility
The TPR306A is a professional and solid constructed desktop rack with adjustable angle for 19” equipment compliant to ANSI/EIA RS-310D, DIN41491 and IEC60297 standards. It ensures maximum installation, connectivity and maintenance ease while simultaneously storing up to 6 units for studio, processing, test and other 19” equipment. The 0° ~ 15° adjustable slanted front profiles offer optimal stability and a perfect viewing angle on the front panels of the installed equipment at any given time.
The construction is made of 2.0 mm thick steel finished in a black (RAL9004) powder coating with fine structure. Punched equipment mounting profiles on the front offer a multifunctional use of the rack while perforated sides allow cable guiding or accessories mounting. Delivered in a flat-down package, the simple structure allows assembly by a single person in record-breaking time.
| PRODUCT FEATURES | ||||
|---|---|---|---|---|
| Adjustable angle | 0° – 15° adjustable tilt angle | |||
| Unit height | 6 HE | |||
| Max. load | 30 kg | |||
| Dimensions | 509 x 317,8 x 301,3 mm (W x H x D) (incl. rubber feet) | |||
| Colours | Black (RAL9004) | |||
| Accessories | Included | 1 set Assembly hardware | ||
| 12 x Cage nuts + screws | ||||
| Optional | KM600 – M6 Cage nuts | |||
Play Video
Additional information
| Brand | Caymon |
|---|---|
| Racks | Racks & stands |
| Bracket Type | Racks/Cabinet |
| Rack/Cabinet Type | Rack |
