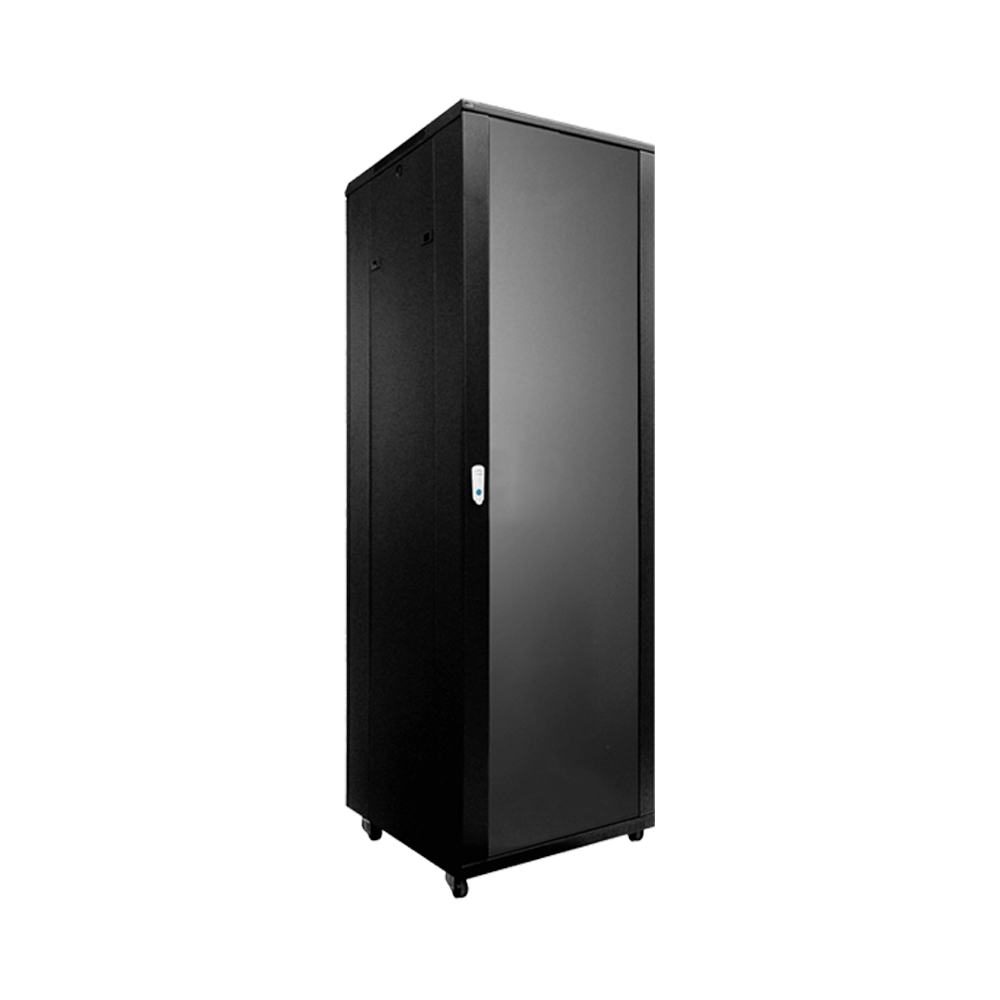

Caymon SPR642 19″ rack cabinet

1,055.30

Caymon Rack Cabinet. 42 unit cabinet. Ventilation grid on top. Removable sides for easy installing & cabling.

SEND EMAIL QUERY

Description

SPR642

19" rack cabinet - 42 units - 600mm W x 600mm D

Highlights

  • Stores up to 42 units of 19” Equipment
  • Standard keylock for both doors
  • Integrated ventilation grid on top
  • 50 mm Wheels + leveling feet included
  • Removable sides for easy installing & cabling
  • Punched square holes for use with snap-in cage nuts
  • Front and rear in depth adjustable 19” profiles (max 540 mm)
  • Tempered glass door with keylock
  • Reversible door position

The SPR642 is a professional 19” rack compliant to the ANSI/EIA RS-310D, DIN41491 and IEC60297 standards. A cold rolled steel 2 mm thick frame and 1,2 mm thick plates provides a solid and stable construction making it suitable for heavy equipment, storing up to 42 units inside. The SPR642 comes fully assembled including 50 mm wheels for easy moving and adjustable feet for fixing and leveling once correctly positioned. The 19” mounting profile with punched square holes for use with snap-in cage nuts in combination with the printed unit measurement indicators ensure an easy fitting of the equipment. Adjustable 19 “ profiles provide great flexibilty for installing equipment depending on its depth. Both front and rear doors are fitted with a standard keylock.



PRODUCT FEATURES
Unit height42 HE
Weight88 kg
ColoursBlack (RAL9004)
AccessoriesOptionalKS600 – M6 x 16 mm bolt DIN7985 Black
  KM600 – M6 Cage nuts
  SPR60LR – L-rail (horizontal support)
 Included4 x Key for sidepanel lock
  1 x Allen key
  4 x Levelling feet
  4 x Key for front/back door
 OptionalSPR10CS – Rack interconnection slot
  SPR60FS – Fixed shelf
  SPR60SS – Sliding shelf
  SPR60PT – Rack plinth
  SPR60RF – Cooling roof fan unit (230V)
Max. usable depth540 mm
WheelDiameter50 mm
Dimensions600 x 1985 (2055) x 600 mm (W x H (incl. feet) x D)
AccessoriesIncluded20 x KS600
  20 x KM600
Static load capacity (adjustable feet)800 kg
Dynamic load capacity (transport castors)400 kg
