Caymon Rack Cabinet. 12 unit cabinet. Ventilation grid on top. Removable sides for easy installing & cabling.

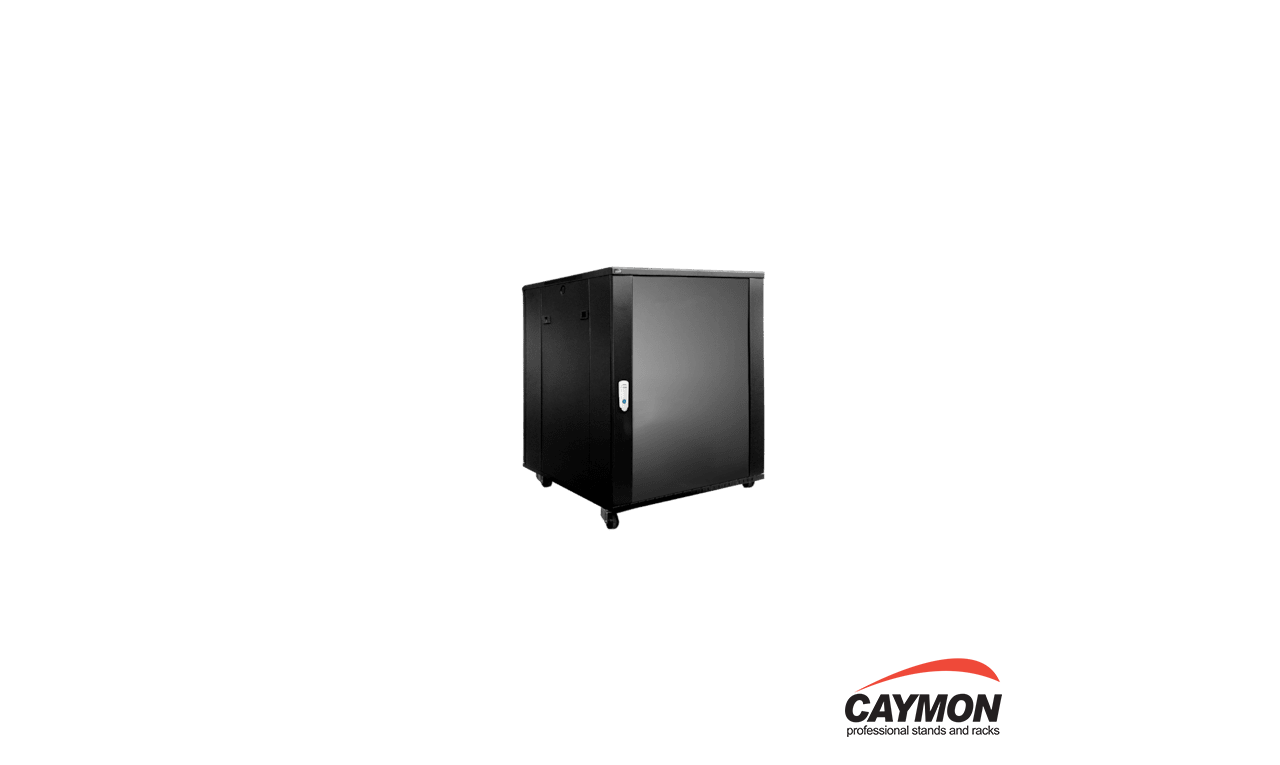

Caymon SPR612 19″ rack cabinet
€661.30
In stock
In stock
Description
SPR612
19" rack cabinet - 12 units - 600mm W x 600mm D
Highlights
- Stores up to 12 units of 19” Equipment
- Standard keylock for both doors
- Integrated ventilation grid on top
- 50 mm Wheels + leveling feet included
- Removable sides for easy installing & cabling
- Punched square holes for use with snap-in cage nuts
- Front and rear in depth adjustable 19” profiles (max 540 mm)
- Tempered glass door with keylock
- Reversible door position
The SPR612 is a professional 19” rack compliant to the ANSI/EIA RS-310D, DIN41491 and IEC60297 standards. A cold rolled steel 2 mm thick frame and 1,2 mm thick plates provides a solid and stable construction making it suitable for heavy equipment, storing up to 12 units inside. The SPR612 comes fully assembled including 50 mm wheels for easy moving and adjustable feet for fixing and leveling once correctly positioned. The 19” mounting profile with punched square holes for use with snap-in cage nuts in combination with the printed unit measurement indicators ensure an easy fitting of the equipment. Adjustable 19 “ profiles provide great flexibilty for installing equipment depending on its depth. Both front and rear doors are fitted with a standard keylock.
| PRODUCT FEATURES | ||||
|---|---|---|---|---|
| Unit height | 12 HE | |||
| Weight | 39 kg | |||
| Colours | Black (RAL9004) | |||
| Max. usable depth | 540 mm | |||
| Dimensions | 600 x 636 (722) x 600 mm (W x H (incl. feet) x D) | |||
| Static load capacity (adjustable feet) | 800 kg | |||
| Dynamic load capacity (transport castors) | 400 kg | |||
| Wheel | Diameter | 50 mm | ||
| Accessories | Included | 4 x Key for sidepanel lock | ||
| 1 x Allen key | ||||
| 4 x Levelling feet | ||||
| 4 x Key for front/back door | ||||
| 20 x KS600 | ||||
| 20 x KM600 | ||||
| Optional | SPR60LR – L-rail (horizontal support) | |||
| SPR10CS – Rack interconnection slot | ||||
| SPR60FS – Fixed shelf | ||||
| SPR60SS – Sliding shelf | ||||
| SPR60PT – Rack plinth | ||||
| SPR60RF – Cooling roof fan unit (230V) | ||||
| KS600 – M6 x 16 mm bolt DIN7985 Black | ||||
| KM600 – M6 Cage nuts | ||||
Play Video
Additional information
| Brand | Caymon |
|---|---|
| Racks | Racks & stands |
| Bracket Type | Racks/Cabinet |
| Rack/Cabinet Type | Cabinet |
| Model | WPR406R/B, WPR406R/W |
