Solid constructed slide-out rack for 19” equipment. Installation up to 12 units of equipment

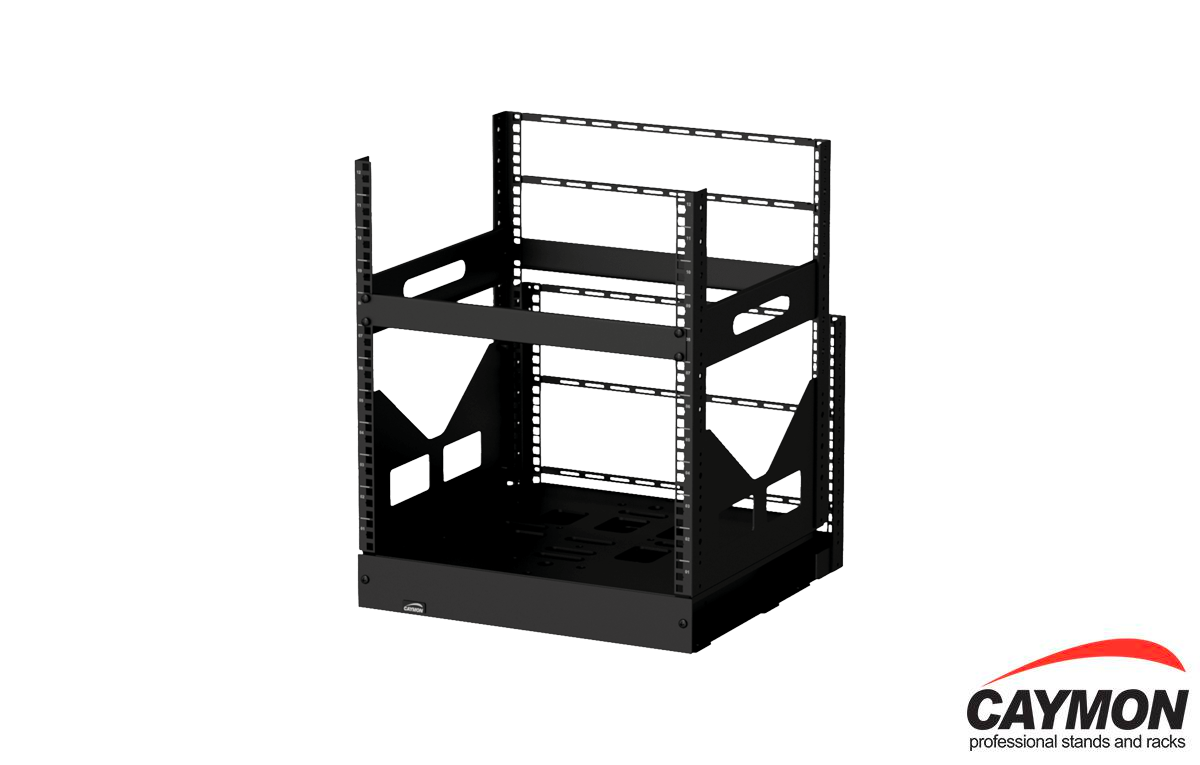

Caymon GPR412 – 19″ slide-out rack – 12 units – 420mm depth
€799
Call for availability
Call for availability
SEND EMAIL QUERYDescription
GPR412
19" slide-out rack - 12 units - 420mm depth
Highlights
- Stores up to 12 units of 19” Equipment
- Punched square holes for use with snap-in cage nuts
- HexaSlide™ extending equipment bay
- Retracted and extended position locking
- Cable management rear supports
- Ships as assembly package (2 cartons)
- In-wall / furniture integration for 19″ equipment
- Can carry a max load of 60 kg
The GPR412 is a professional and solid constructed slide-out rack for 19” equipment compliant to ANSI/EIA RS-310D, DIN41491 and IEC60297 standards. It offers a flush mount solution for installation up to 12 units of equipment. The HexaSlide™ extending equipment bay combined with cable management rear supports allows rack integration into walls or furniture, while keeping the rear side of the equipment accessible for maintenance and servicing. Position locking in extended position with rotation angles for 45° and 90° allows easy fitting for the equipment, while locking in retracted position offers optimal security and stability for permanent installation. The construction is made of 3.0 mm thick steel profiles and finished
in a black (RAL9004) powder coating with fine structure and printed unit measurement indicators.
| PRODUCT FEATURES | ||||
|---|---|---|---|---|
| Dimensions | 503 x 611 x 489 mm (W x H x D) | |||
| Unit height | 12 HE | |||
| Max. usable depth | 425 mm | |||
| Max. load | 60 kg | |||
| Colours | Black (RAL9004) | |||
| Accessories | Included | 24 x Cage nuts + screws | ||
| Optional | KM600A – M6 Cage nuts | |||
| Weight | 36.26 kg | |||
HEXASLIDE™
Our slide-out racks are equipped with a HexaSlide™ rail system. This innovation is specially designed to withstand heavy loads even when the equipment bay of the rack is fully extended. The unique combination of six, heavy duty ball bearing slides provides a smooth sliding operation for the attached 19” equipment and are cleverly positioned for achieving an optimal utilization of the available height.
Additional information
| Brand | Caymon |
|---|---|
| Racks | Racks & stands |
| Bracket Type | Racks/Cabinet |
| Rack/Cabinet Type | Cabinet |
