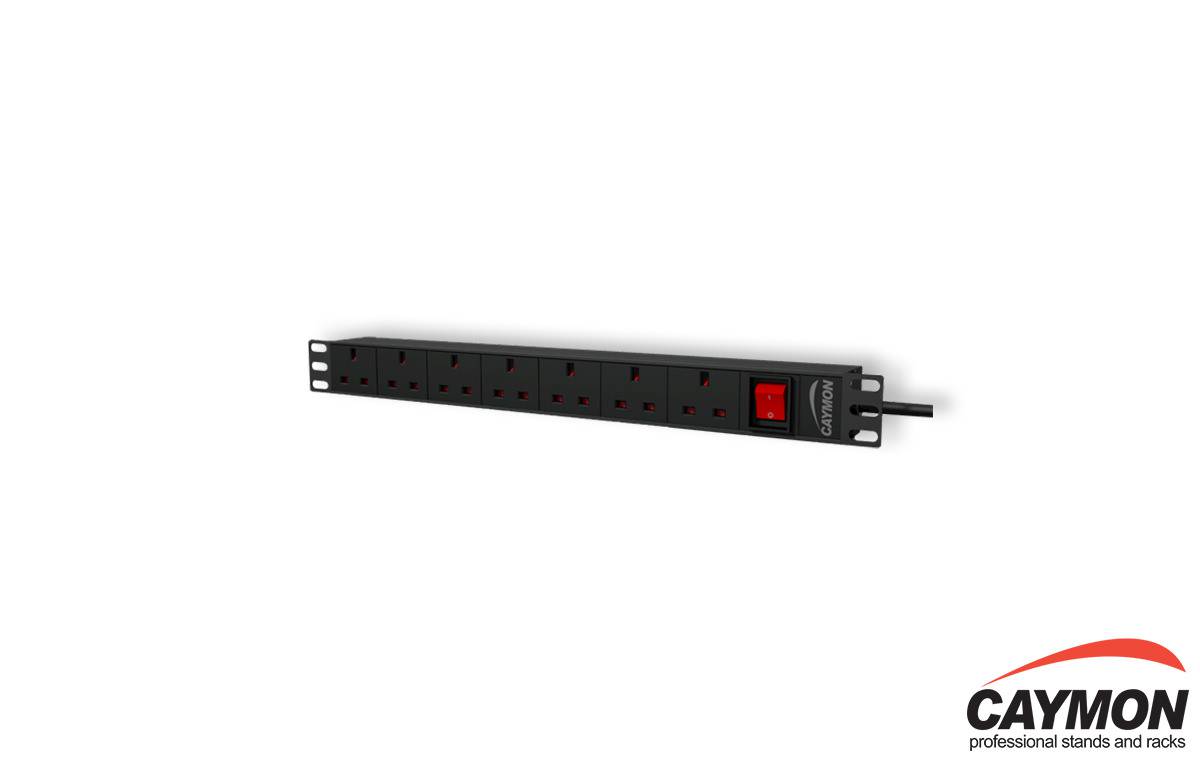

Caymon PSR107UKS 19″ power distribution unit


In stock

19″ power distribution unit – 7 X 3 pin UK sockets + front switch


In stock

SKU: PSR107UKS Categories: ,


Caymon PSR107UKS 19” power distribution unit

The PSR107UKS are 19” power distribution units, compliant to the ANSI/EIA RS-310D, DIN41491 and IEC60297 standards. They come with illuminated switch on the socket side. The construction is made using black powder coated aluminum fitted with steel 19” mounting ears on each side. The total height covers a single 19” rackspace, allowing it to be installed in any 19” housing or equipment rack. Using the rotatable side ears, wall mounting is also made possible. Input connections are made using a fixed 2.5 meter connection cable fitted with a male UK (BS-1363) plug. UK (BS-1363) output sockets allows power distribution to seven devices. A chassis earth connection point is provided for easily connecting your rack / enclosure to mains earth, as required by safety regulations.

Product features
Dimensions45.2 x 480 x 44.9 mm (W x H x D)
SwitchSocket side
Cable length2.5 m
Weight0.820 kg
Unit height1 HE
Power handling250 V AC ~ 13 A / 3250 W


  • 7 x UK (BS-1363) power outlet
  • Black aluminium housing
  • 2.5 meter cable
  • Chassis earth connection point
  • 13A ~ 250 VAC / 3250 W Max
  • Male UK (BS-1363) input plug
