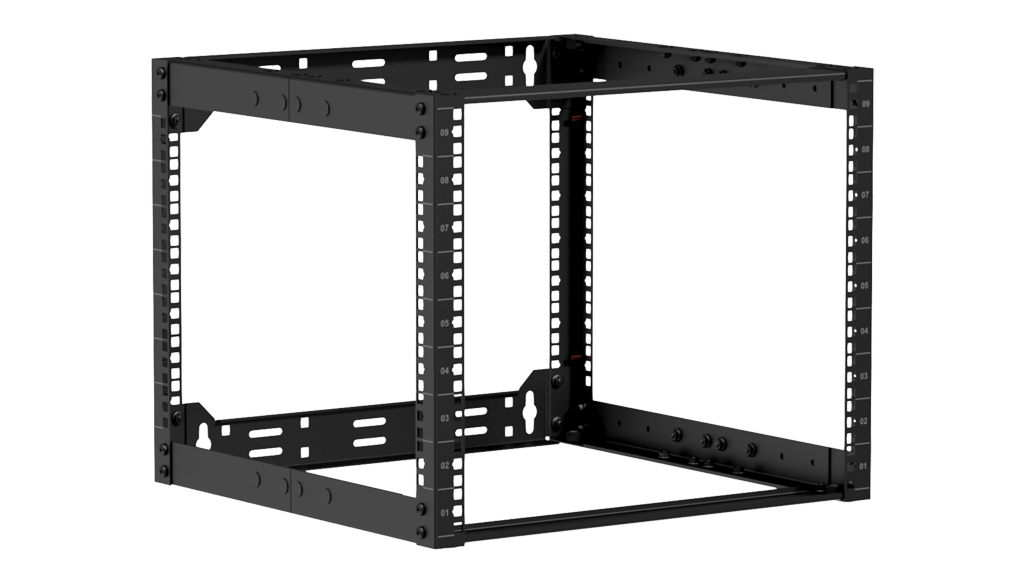

Caymon 19″ in depth adjustable open frame rack – 9 unit – 500 ~ 700 mm
Description
OPR509A
19" in depth adjustable open frame rack - 9 unit - 500 ~ 700 mm
Highlights
- In depth adjustable
- Stores up to 9 units of 19” Equipment
- Punched square holes for use with snap-in cage nuts
- 2 mm thick cold rolled steel frame
- Easy assembly in 10 minutes
- Floor standing & wall mounted use
- Unrestricted air flow due to open-frame design
- Stand alone & in-furniture integration
- Ships as flat-down package
The OPR509A is an in depth adjustable professional and solid constructed open-frame rack for 19” equipment compliant to ANSI/EIA RS-310D, DIN41491 and IEC60297 standards which is suitable for wall-mounted or floor-standing installation. It ensures maximum installation, connectivity and maintenance ease storing up to 9 units of 19” equipment.
The open frame rack has an adjustable depth of 500 to 700 mm for easy installation and fitment in existing furniture. The rugged construction made of 2 mm thick steel allows pre-loading of the equipment before transportation to the installation site. Finishing is done in a black (RAL9004) powder coating with fine structure while punched equipment mounting profiles on front and both sides offer a multifunctional use of the cabinet. Delivered in a flat-down package, the simple structure allows assembly by a single person in a record-breaking time.
| PRODUCT FEATURES | ||||
|---|---|---|---|---|
| Unit height | 9 HE | |||
| Max. usable depth | 500 ~ 700 mm | |||
| Dimensions | 520 x 425 x 500~700 mm (W x H x D) (excl. rubber feet) | |||
| Colours | Black (RAL9004) | |||
| Accessories | Included | 4 x Levelling feet | ||
| 4 x M8 expanding wall bolt | ||||
| 20 x Cage nuts + screws | ||||
| Optional | KM600 – M6 Cage nuts | |||
| Max. load standing | 100 kg | |||
| Max. load hanging | 25 kg | |||
| Weight | 8.5 kg | |||
