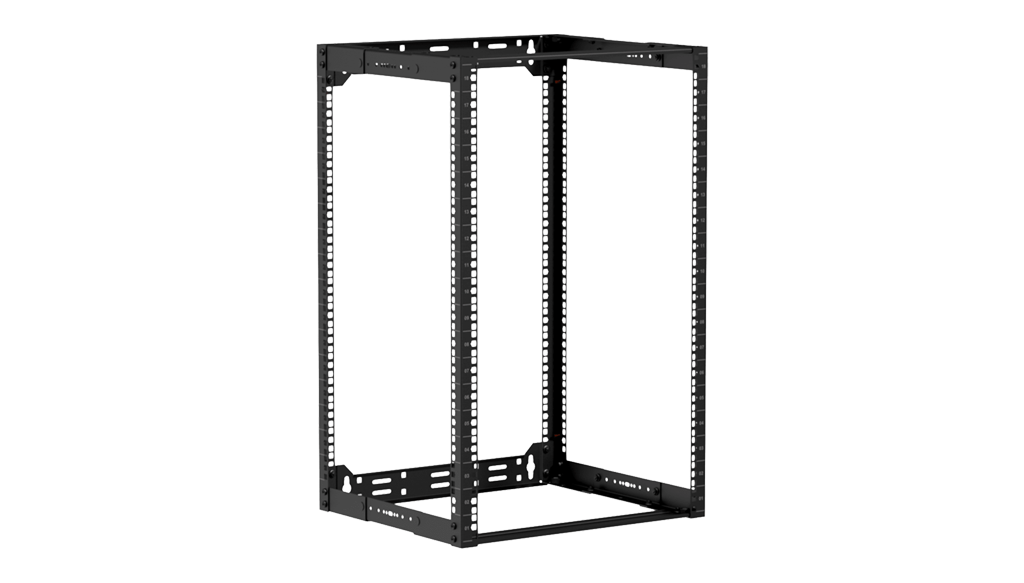

Caymon 19″ in depth adjustable open frame rack – 18 unit – 300 ~ 450mm
Description
OPR318A
19" in depth adjustable open frame rack - 18 unit - 300 ~ 450mm
Highlights
- In depth adjustable
- Stores up to 18 units of 19” Equipment
- Punched square holes for use with snap-in cage nuts
- 2 mm thick cold rolled steel frame
- Easy assembly in 10 minutes
- Floor standing & wall mounted use
- Unrestricted air flow due to open-frame design
- Stand alone & in-furniture integration
- Ships as flat-down package
The OPR318A is an in depth adjustable professional and solid constructed open frame rack for 19” equipment compliant to ANSI/EIA RS-310D, DIN41491 and IEC60297 standards which is suitable for wall mounted or floor standing installation. It ensures maximum installation, connectivity and maintenance ease storing up to 18 units of 19” equipment.
The open frame rack has an adjustable depth of 300 to 450 mm for easy installation and fitment in existing furniture. The rugged construction made of 2 mm thick steel allows pre-loading of the equipment before transportation to the installation site. Finishing is done in a black (RAL9004) powder coating with fine structure while punched equipment mounting profiles on front and both sides offer a multifunctional use of the cabinet. Delivered in a flat-down package, the simple structure allows assembly by a single person in a record-breaking time.
| PRODUCT FEATURES | ||||
|---|---|---|---|---|
| Unit height | 18 HE | |||
| Max. usable depth | 300 ~ 450 mm | |||
| Max. load standing | 100 kg | |||
| Max. load hanging | 50 kg | |||
| Dimensions | 520 x 825 x 300~450 mm (W x H x D) (excl. rubber feet) | |||
| Colours | Black (RAL9004) | |||
| Weight | 10 kg | |||
| Accessories | Included | 4 x Levelling feet | ||
| 4 x M8 expanding wall bolt | ||||
| 36 x Cage nuts + screws | ||||
| Optional | KM600 – M6 Cage nuts | |||
Play Video
Additional information
| Brand | Caymon |
|---|---|
| Racks | Racks & stands |
| Bracket Type | Racks/Cabinet |
| Rack/Cabinet Type | Rack |
