Caymon OPR303A 3-unit adjustable open frame rack

161.90

Caymon 19″ in depth adjustable open frame rack – 3 unit – 300 ~ 450mm

SEND EMAIL QUERY

Description

OPR303A

19" in depth adjustable open frame rack - 3 unit - 300 ~ 450mm

Highlights

  • In depth adjustable
  • Stores up to 3 units of 19” Equipment
  • Punched square holes for use with snap-in cage nuts
  • Loading capacity of 100 kg
  • 2 mm thick cold rolled steel frame
  • Easy assembly in 10 minutes
  • Floor standing & wall mounted use
  • Unrestricted air flow due to open-frame design
  • Stand alone & in-furniture integration
  • Ships as flat-down package

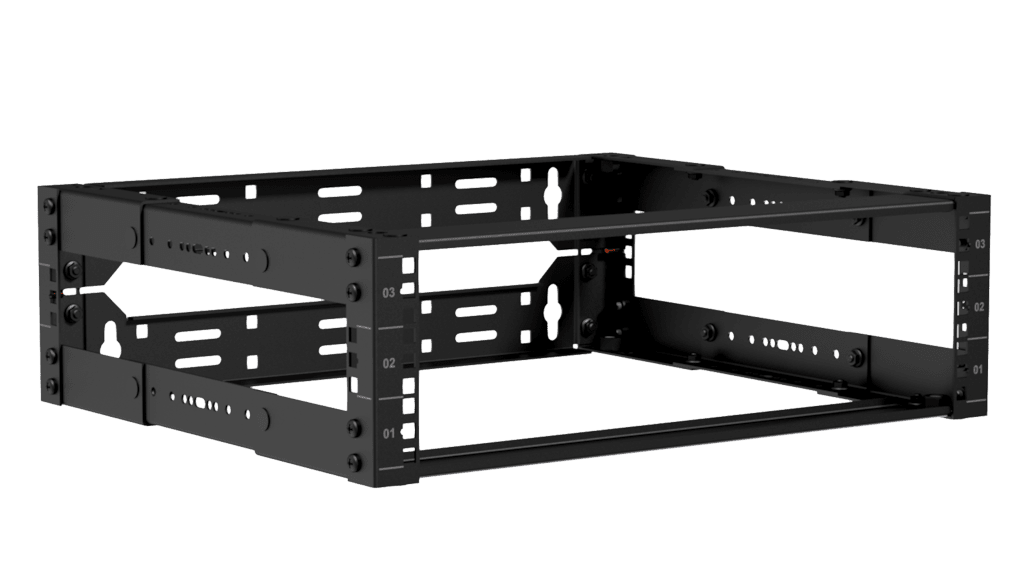

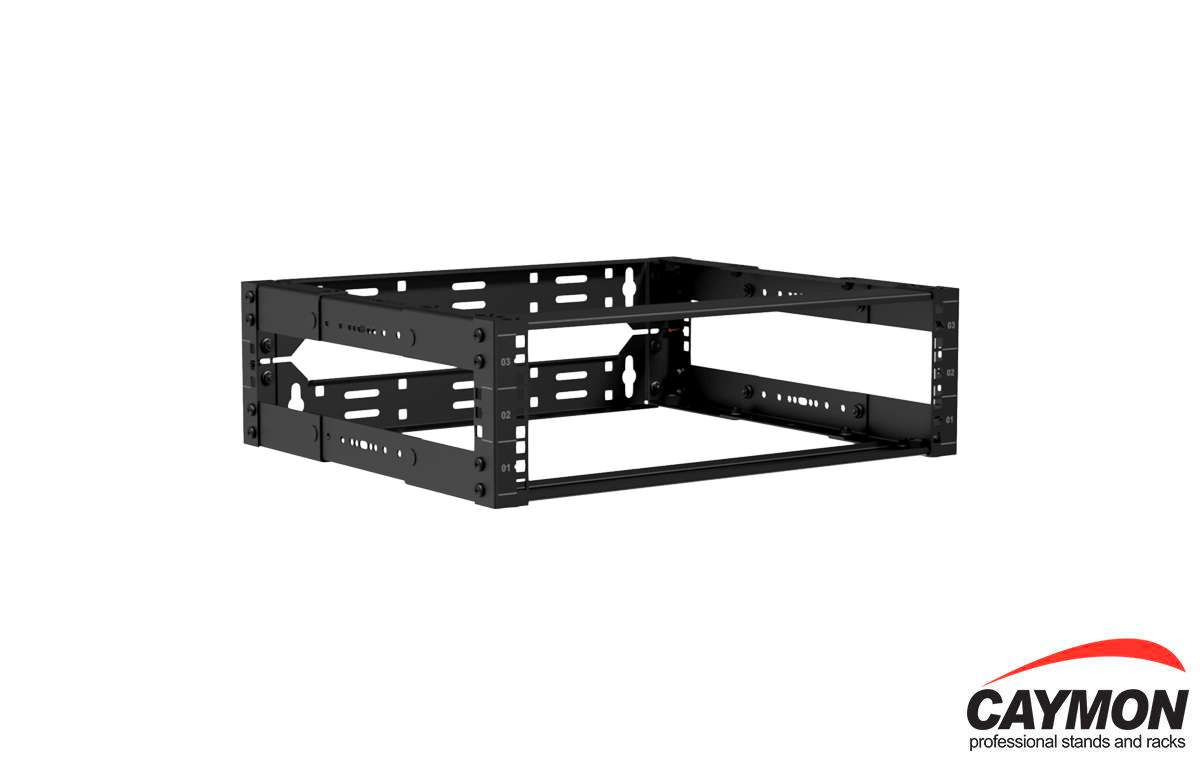

The OPR303A is an in depth adjustable professional and solid constructed open frame rack for 19” equipment compliant to ANSI/EIA RS-310D, DIN41491 and IEC60297 standards which is suitable for wall mounted or floor standing installation. It ensures maximum installation, connectivity and maintenance ease storing up to 3 units of 19” equipment.

The open frame rack has an adjustable depth of 300 to 450 mm for easy installation and fitment in existing furniture. The rugged construction made of 2 mm thick steel allows pre-loading of the equipment before transportation to the installation site. Finishing is done in a black (RAL9004) powder coating with fine structure while punched equipment mounting profiles on front and both sides offer a multifunctional use of the cabinet. Delivered in a flat-down package, the simple structure allows assembly by a single person in a record-breaking time.

PRODUCT FEATURES
Unit height3 HE
Max. usable depth300 ~ 450 mm
Max. load standing100 kg
Max. load hanging25 kg
Dimensions520 x 158 x 300~450 mm (W x H x D) (excl. rubber feet)
ColoursBlack (RAL9004)
Weight7 kg
AccessoriesIncluded4 x Levelling feet
  4 x M8 expanding wall bolt
  12 x Cage nuts + screws
 OptionalKM600 – M6 Cage nuts
Play Video

Additional information

Brand

Caymon

Racks

Racks & stands

Bracket Type

Racks/Cabinet

Rack/Cabinet Type

Rack
