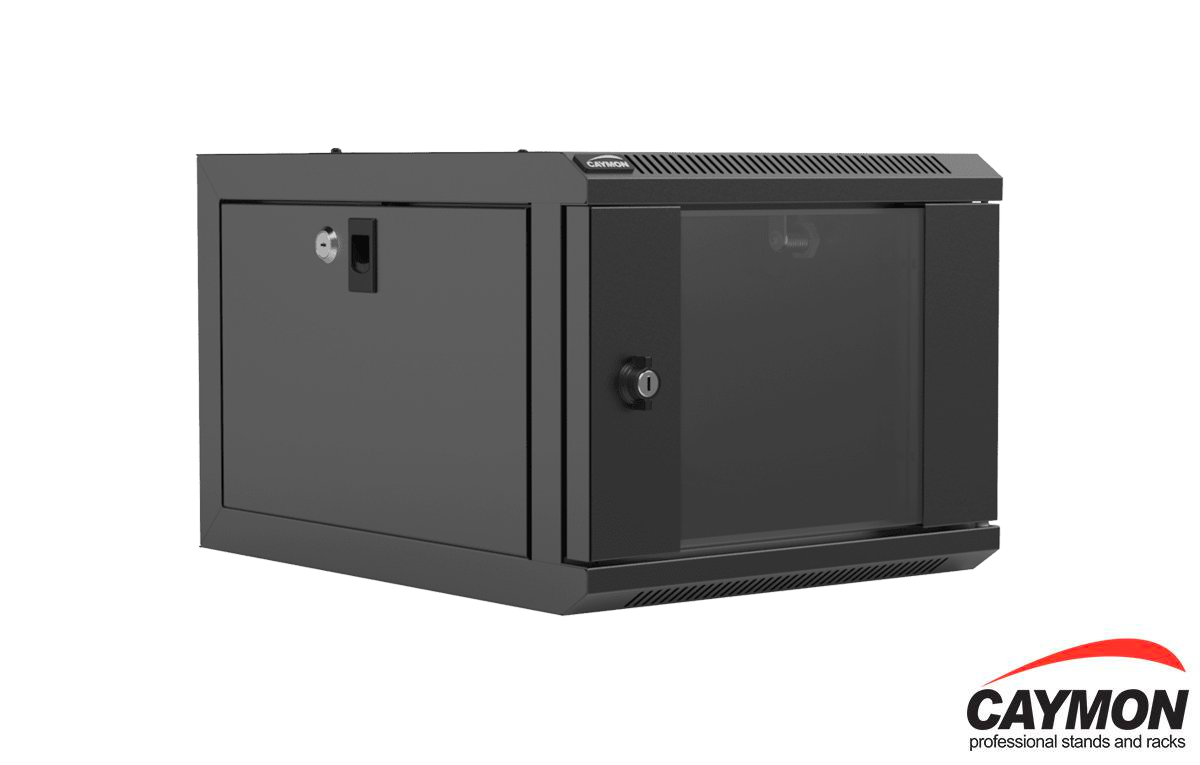

Caymon NPR404 Wall mounted cabinet – 4 units

139.20

Caymon Wall mounted 9.5″ / 10.5″ cabinet – 4 units – 420mm depth

SEND EMAIL QUERY

Description

NPR404

Wall mounted 9.5" / 10.5" cabinet - 4 units - 420mm depth

Highlights

  • Integrated ventilation grid on top
  • Removable sides for easy installing & cabling
  • Cable entry on top, bottom & back
  • Tempered glass door with keylock
  • Designed to accommodate ‘half rack’ sized equipment
  • Adjustable rack profile between 9.5″ and 10.5″ width
  • Stores up to 4 units of 9.5″ /10.5″ equipment

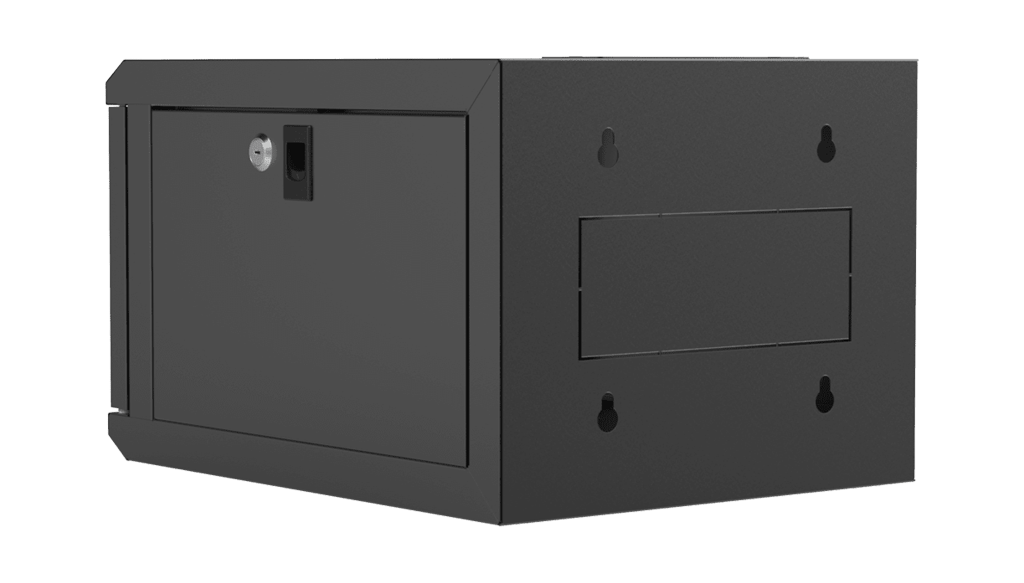

The NPR404 is a professional 9.5”/10.5″ wall mount metal rack designed to accommodate ‘half rack’ sized devices such as AV, IT or telecommunication equipment. The solid construction made of an 1.5 mm thick steel frame and 1.2 mm thick plates is finished with a black (RAL9004) fine structured powder coating. It stores up to 4 units of 9.5”/10.5″ equipment, comes fully assembled and can easily be mounted on the wall. The mounting profile with punched square holes for use with snap-in cage nuts is in depth adjustable and reversible between 9.5″ and 10.5″ installation width. The tempered glass front door is reversible and secured with a key lock which keeps the equipment accessible for authorized persons only. Other present features are removable sides and printed unit measurement indicators.

PRODUCT FEATURES
Unit height4 HE
Max. usable depth360 mm
Max. load25 kg
Dimensions325 x 261 x 420 mm (W x H x D)
Weight5.9 kg
ColoursBlack (RAL9004)
AccessoriesIncluded1 set Assembly hardware
  24 x Cage nuts + screws
 OptionalKM600 – M6 Cage nuts
Play Video

Additional information

Brand

Caymon

Racks

Racks & stands

Bracket Type

Racks/Cabinet

Rack/Cabinet Type

Cabinet
