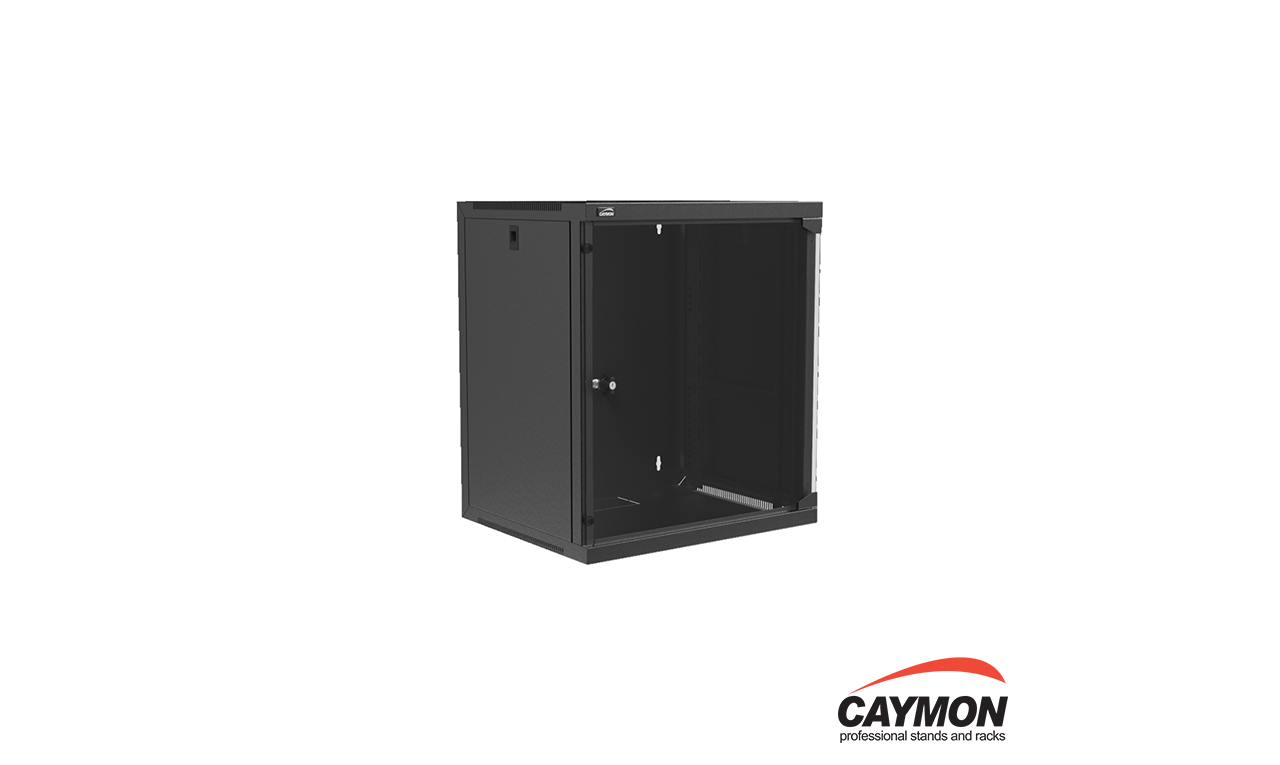

Caymon EPR412 19″ rack cabinet

235.10

In stock

Caymon Rack Cabinet. 12 unit cabinet. Ventilation grid on top. Removable sides for easy installing & cabling. Tempered glass door with keylock.

In stock

Description

EPR412

19" wall rack cabinet - 12 unit - 450mm depth

epr412

Highlights

  • Stores up to 12 units of 19” Equipment
  • Integrated ventilation grid on top
  • Removable sides for easy installing & cabling
  • Punched square holes for use with snap-in cage nuts
  • Front in depth adjustable 19” profiles (max 370 mm)
  • Loading capacity of 50 kg
  • Cable entry on top & bottom (closable)
  • Tempered glass door with keylock


The EPR412 is an economical wall mountable 19″ rack compliant to ANSI/EIA RS-310D, DIN41491, IEC 60297 standards. The construction is made of a 1.5 mm thick steel frame with 1.0 mm thick plates and is finished with a black (RAL9004) fine structured powder coating. It stores up to 12 units of 19” equipment, comes fully assembled and can easily be mounted on the wall. The 19” mounting profile with punched square holes for use with snap-in cage nuts in combination with the printed unit measurement indicators ensure easy fitting of the equipment. The tempered glass front door is reversible and secured with a key lock which keeps the equipment accessible for authorized persons only. Other present features are removable sides and in depth adjustable 19” profiles allowing easy and flexible cabling & installation.

PRODUCT FEATURES
Unit height12 HE
Max. usable depth370 mm
Max. load50 kg
Dimensions540 x 617 x 444 mm (W x H x D)
Weight18.700 kg
ColoursBlack (RAL9004)
AccessoriesIncluded2 x key for front door
  24 x Cage nuts + screws
 OptionalKM600 – M6 Cage nuts
  KS600 – M6 x 16 mm bolt DIN7985 Black
Play Video

Additional information

Brand

Caymon

Racks

Racks & stands

Bracket Type

Racks/Cabinet

Rack/Cabinet Type

Cabinet
