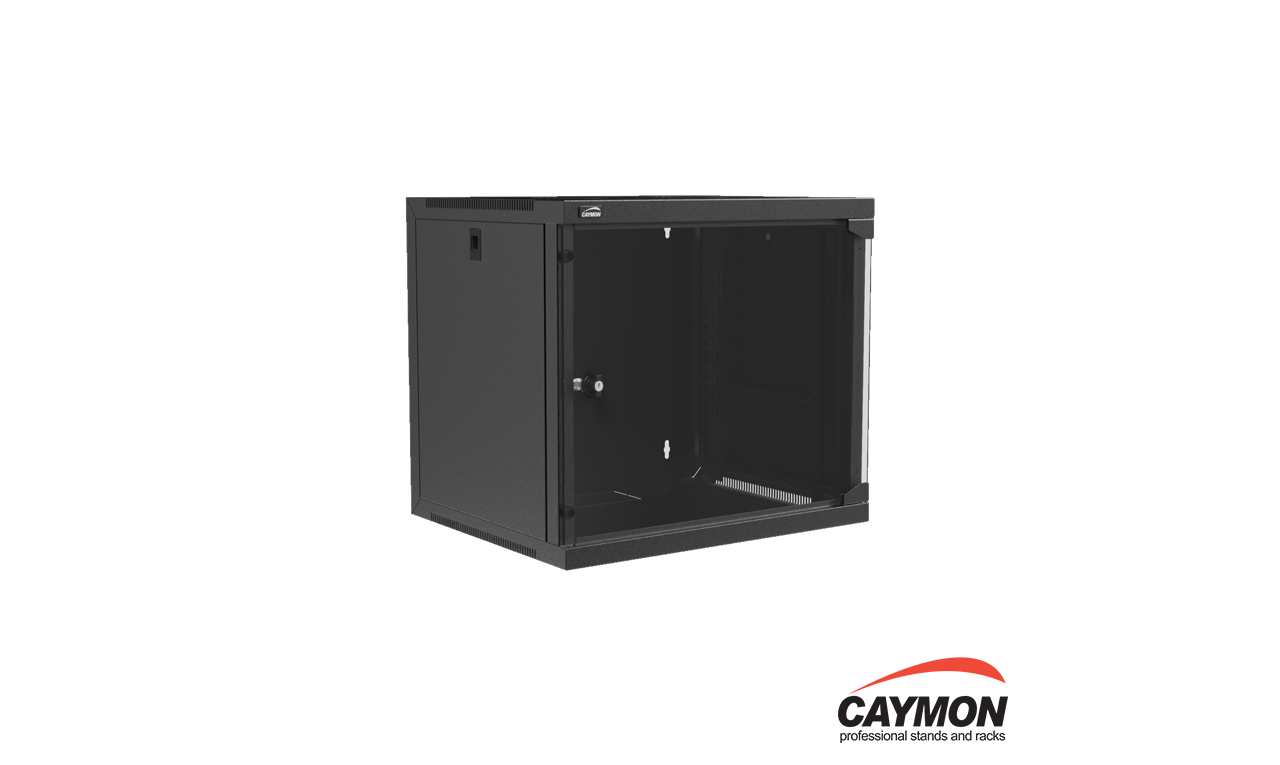

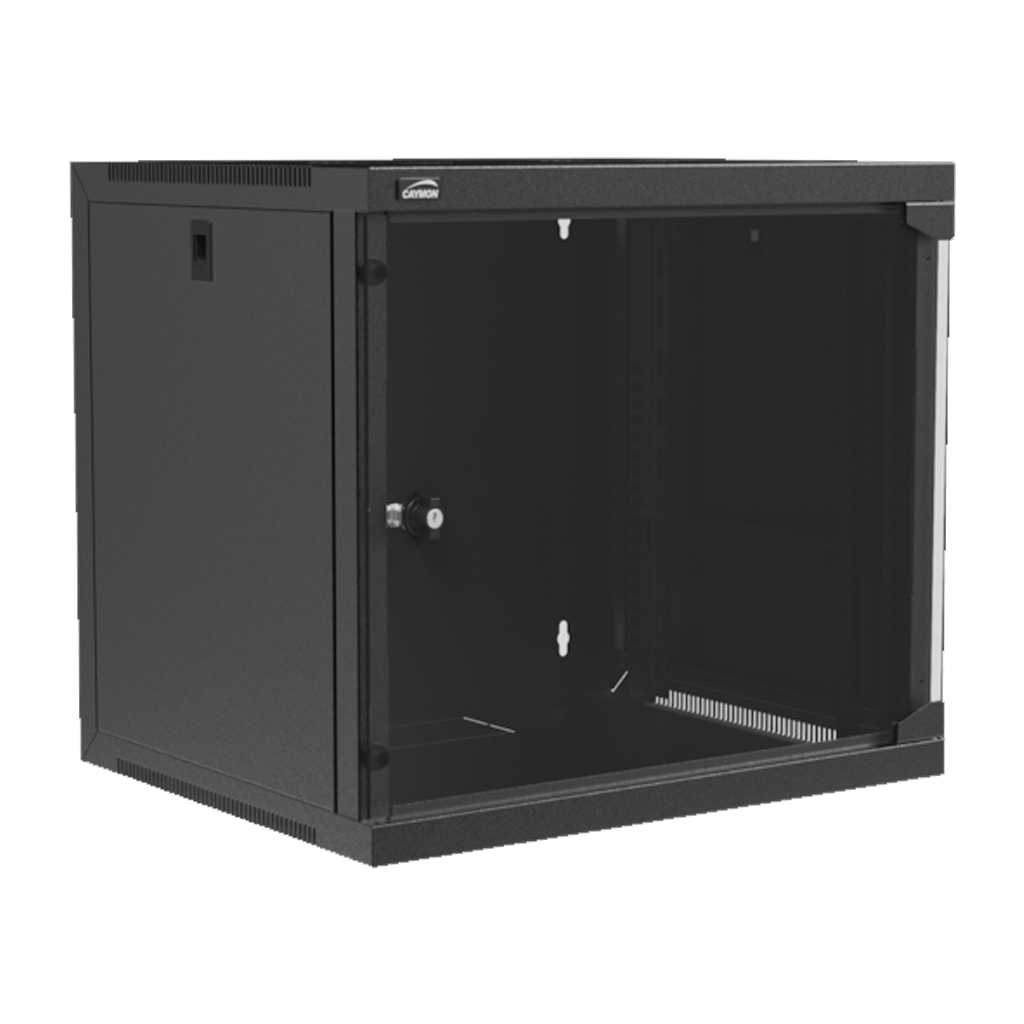

Caymon EPR409 19″ rack cabinet

198.60

In stock

Caymon Rack Cabinet. 9 unit cabinet. Ventilation grid on top. Removable sides for easy installing & cabling. Tempered glass door with keylock.

In stock

Description

EPR409

19" wall rack cabinet - 9 unit - 450mm depth

epr-409

Highlights

  • Stores up to 9 units of 19” Equipment
  • Integrated ventilation grid on top
  • Removable sides for easy installing & cabling
  • Punched square holes for use with snap-in cage nuts
  • Front in depth adjustable 19” profiles (max 370 mm)
  • Loading capacity of 50 kg
  • Cable entry on top and bottom (closable)
  • Tempered glass door with keylock
  •


The EPR409 is an economical wall mountable 19″ rack compliant to ANSI/EIA RS-310D, DIN41491, IEC 60297 standards. The construction is made of a 1.5 mm thick steel frame with 1.0 mm thick plates and is finished with a black (RAL9004) fine structured powder coating. It stores up to 9 units of 19” equipment, comes fully assembled and can easily be mounted on the wall. The 19” mounting profile with punched square holes for use with snap-in cage nuts in combination with the printed unit measurement indicators ensure easy fitting of the equipment. The tempered glass front door is reversible and secured with a key lock which keeps the equipment accessible for authorized persons only. Other present features are removable sides and in depth adjustable 19” profiles allowing easy and flexible cabling & installation.



PRODUCT FEATURES
Unit height9 HE
Max. usable depth370 mm
Max. load50 kg
Dimensions540 x 483 x 444 mm (W x H x D)
Weight15.600 kg
ColoursBlack (RAL9004)
AccessoriesIncluded2 x key for front door
  24 x Cage nuts + screws
 OptionalKM600 – M6 Cage nuts
  KS600 – M6 x 16 mm bolt DIN7985 Black
Play Video

Additional information

Brand

Caymon

Racks

Racks & stands

Bracket Type

Racks/Cabinet

Rack/Cabinet Type

Cabinet
