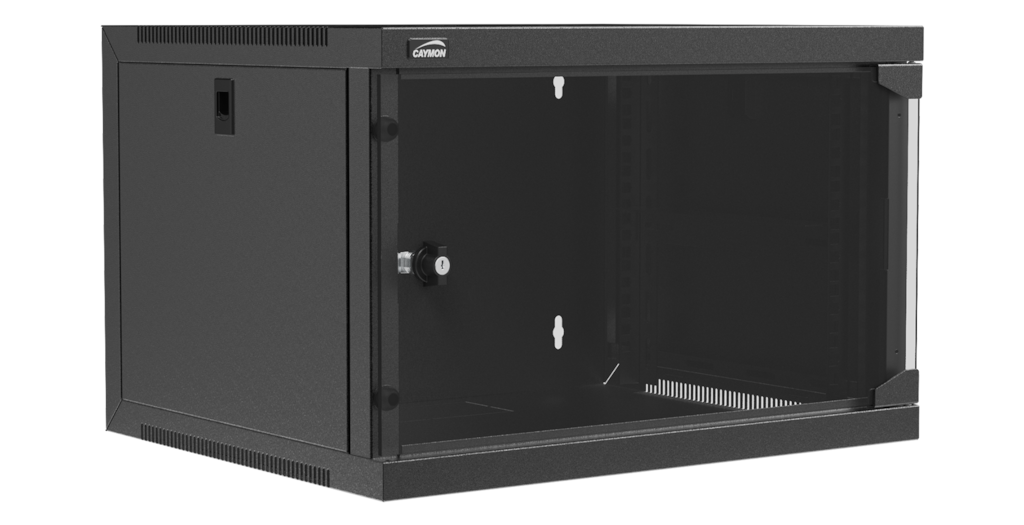

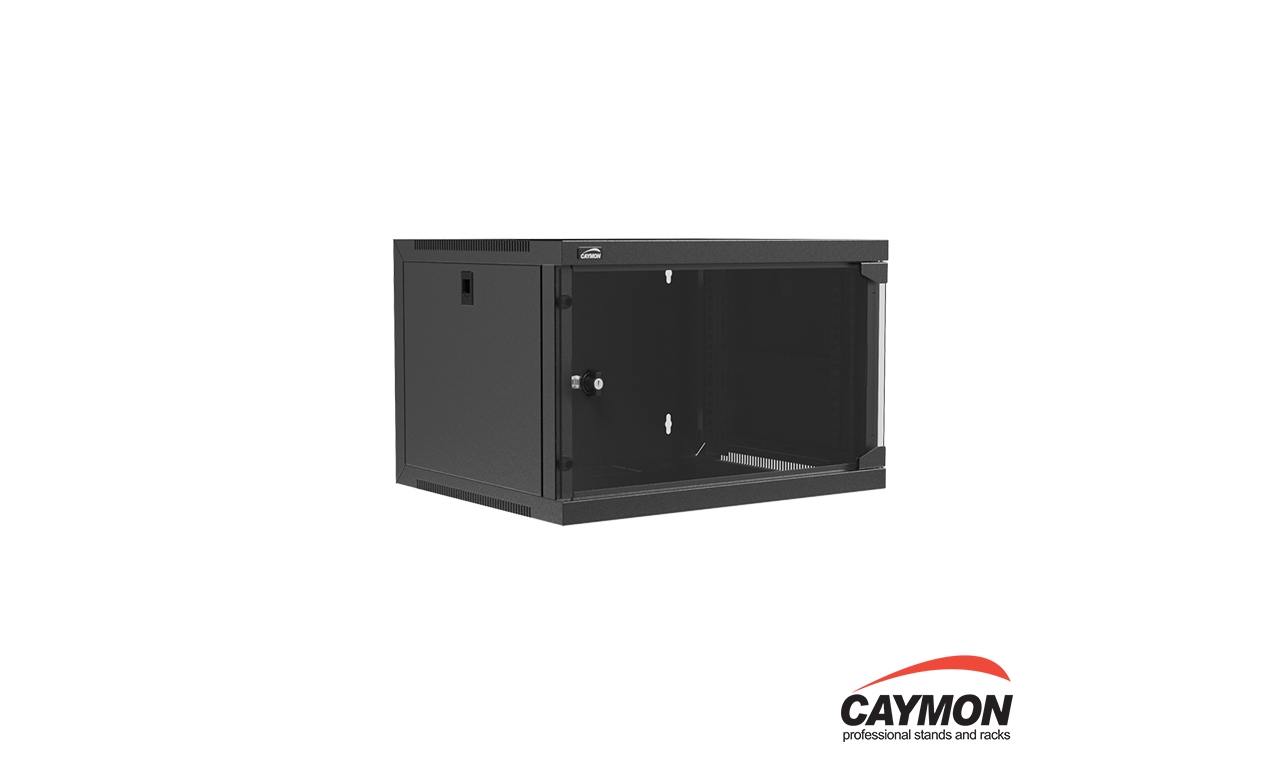

Caymon Rack Cabinet. 6 unit cabinet. Ventilation grid on top. Removable sides for easy installing & cabling. Tempered glass door with keylock.
Description
EPR406
19" wall rack cabinet - 6 unit - 450mm depth
Highlights
- Stores up to 6 units of 19” Equipment
- Integrated ventilation grid on top
- Removable sides for easy installing & cabling
- Punched square holes for use with snap-in cage nuts
- Front in depth adjustable 19” profiles (max 370 mm)
- Loading capacity of 50 kg
- Cable entry on Top and bottom (closable)
- Tempered glass door with keylock
The EPR406 is an economical wall mountable 19″ rack compliant to ANSI/EIA RS-310D, DIN41491, IEC 60297 standards. The construction is made of a 1.5 mm thick steel frame with 1.0 mm thick plates and is finished with a black (RAL9004) fine structured powder coating. It stores up to 6 units of 19” equipment, comes fully assembled and can easily be mounted on the wall. The 19” mounting profile with punched square holes for use with snap-in cage nuts in combination with the printed unit measurement indicators ensure easy fitting of the equipment. The tempered glass front door is reversible and secured with a key lock which keeps the equipment accessible for authorized persons only. Other present features are removable sides and in depth adjustable 19” profiles allowing easy and flexible cabling & installation.
| PRODUCT FEATURES | ||||
|---|---|---|---|---|
| Unit height | 6 HE | |||
| Max. usable depth | 370 mm | |||
| Max. load | 50 kg | |||
| Dimensions | 540 x 350 x 444 mm (W x H x D) | |||
| Weight | 12.500 kg | |||
| Colours | Black (RAL9004) | |||
| Accessories | Included | 2 x key for front door | ||
| 24 x Cage nuts + screws | ||||
| Optional | KM600 – M6 Cage nuts | |||
| KS600 – M6 x 16 mm bolt DIN7985 Black | ||||
Play Video
Additional information
| Brand | Caymon |
|---|---|
| Racks | Racks & stands |
| Bracket Type | Racks/Cabinet |
| Rack/Cabinet Type | Cabinet |
