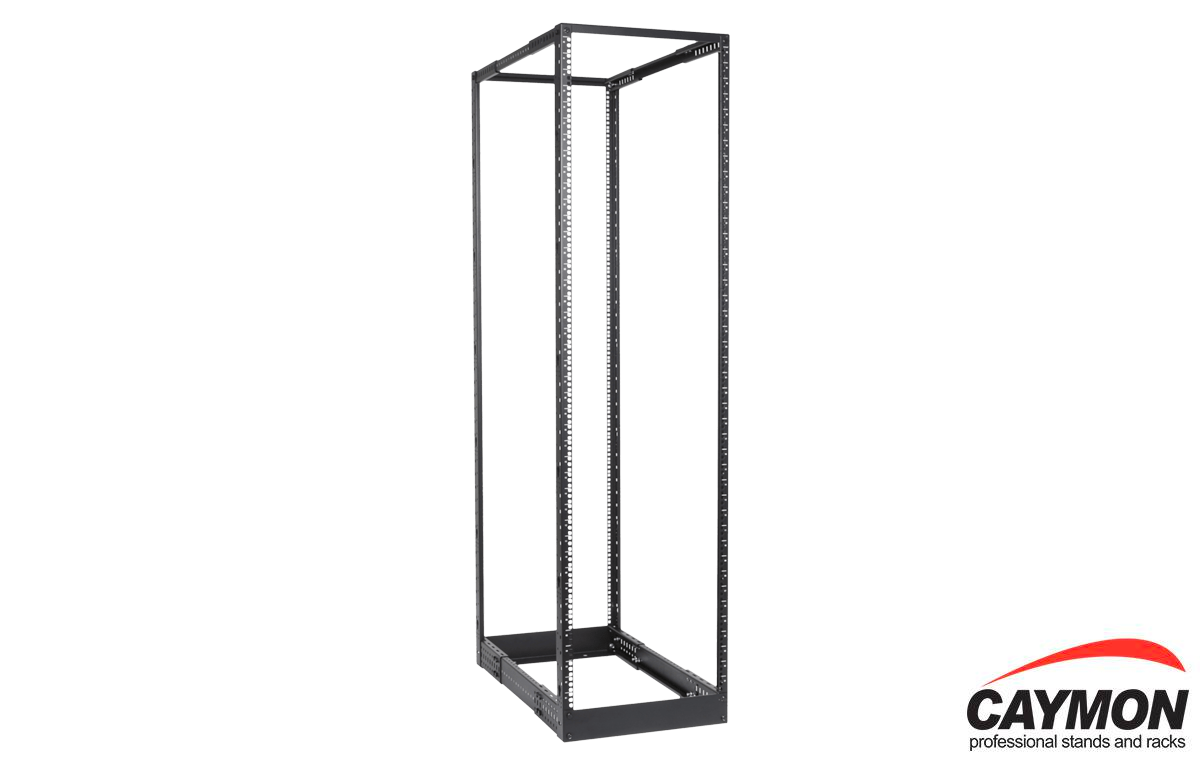

Caymon DPR942 4-post 19″ open-frame rack- 42 units

450.20

Caymon Open frame rack. Stores up to 42 units of 19” Equipment

SEND EMAIL QUERY

Description

DPR932

4-post 19" open-frame rack - 42 units - 550~1015 mm depth

Highlights

  • Stores up to 42 units of 19” Equipment
  • Punched square holes for use with snap-in cage nuts
  • in depth adjustable 19” profiles (max 1015 mm)
  • Easy assembly in 10 minutes
  • Unrestricted air flow due to open-frame design
  • Ships as flat-down package
  • Can carry a max load of 450 kg

The DPR942 is a professional and solid constructed 4-post open-frame rack for 19” equipment compliant to ANSI/EIA RS-310D, DIN41491 and IEC60297 standards. It offers a sturdy and low-cost solution, suitable for installing up to 42 units of 19” equipment. The open frame construction is made of 2.0 mm thick steel and finished in a black (RAL9004) powder coating with fine structure and printed unit measurement indicators. Adjustable vertical supports allow in depth adjustment within a range of 56 to 102 cm while the base angle profiles can be mounted outwards for increased stability or inwards for conserve floor space. Delivery in a flat-down package allows easy transportation of the rack to any installation location, while the simple structure allows assembly by a single person in a record-breaking time.

PRODUCT FEATURES
Unit height42 HE
Max. usable depth550 ~ 1015 mm
Max. load450 kg
Dimensions514 x 2006 x 560 ~ 1020 mm (W x H x D)
Weight24.500 kg
ColoursBlack (RAL9004)
AccessoriesIncluded1 set Assembly hardware
  24 x Cage nuts + screws
 OptionalKS600 – M6 x 16 mm bolt DIN7985 Black
  KM600 – M6 Cage nuts
Play Video

Additional information

Brand

Caymon

Racks

Racks & stands

Bracket Type

Racks/Cabinet

Rack/Cabinet Type

Rack
