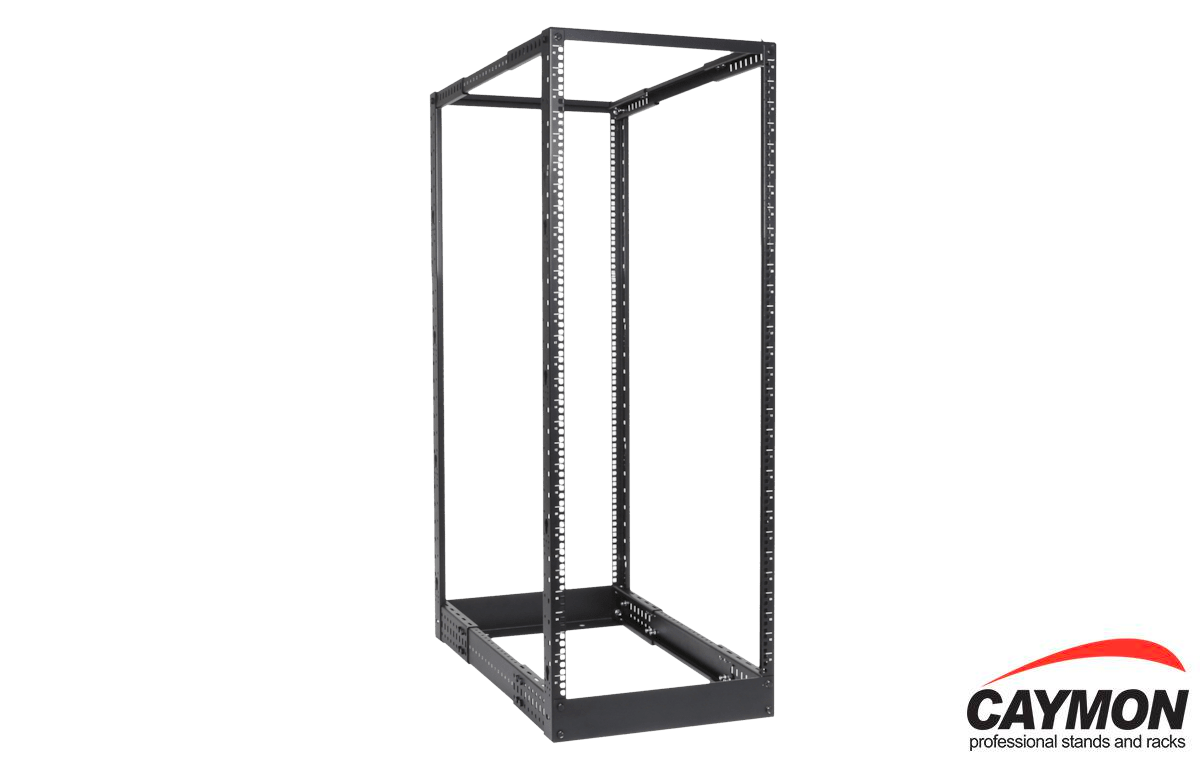

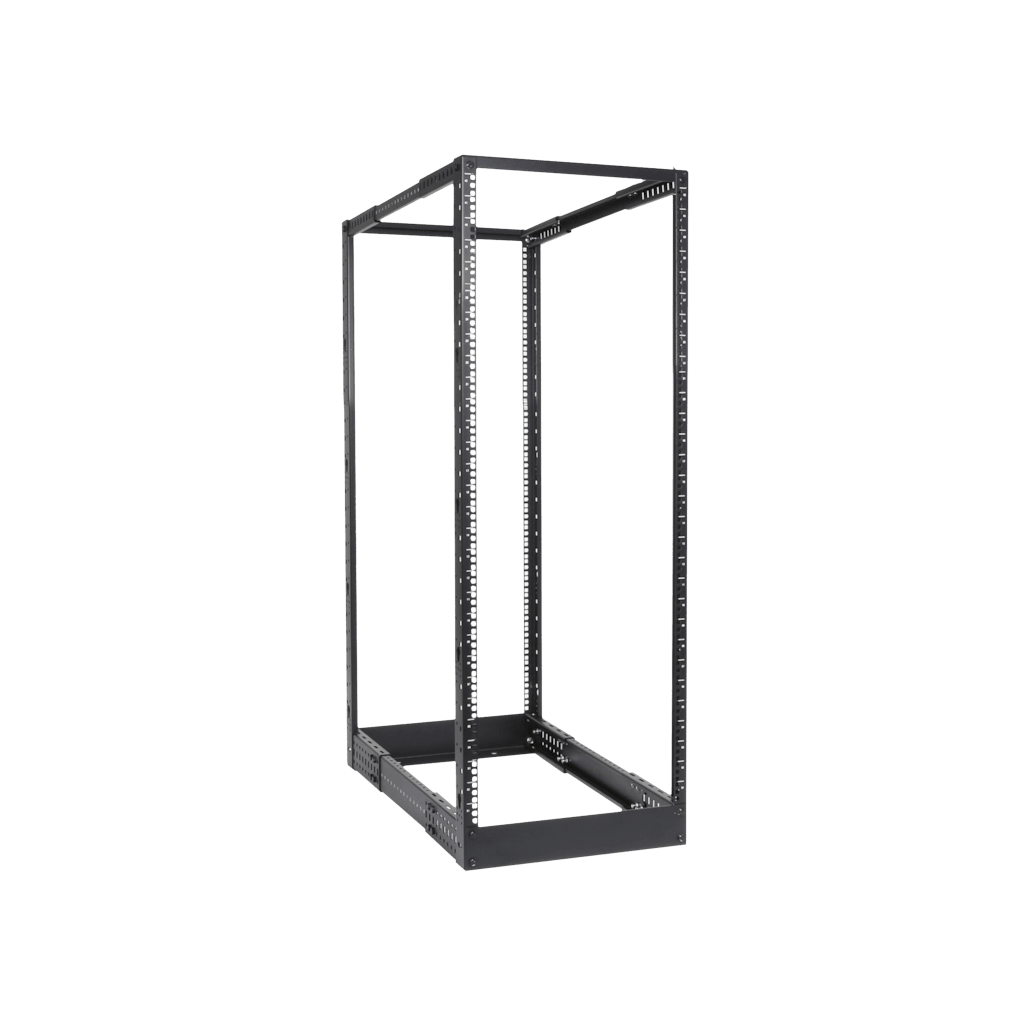

Caymon Open frame rack. Stores up to 32 units of 19” Equipment
Description
DPR932
4-post 19" open-frame rack - 32 units - 550~1015 mm depth
Highlights
- Stores up to 32 units of 19” Equipment
- Punched square holes for use with snap-in cage nuts
- in depth adjustable 19” profiles (max 1015 mm)
- Easy assembly in 10 minutes
- Unrestricted air flow due to open-frame design
- Ships as flat-down package
- Can carry a max load of 450 kg
The DPR932 is a professional and solid constructed 4-post open-frame rack for 19” equipment compliant to ANSI/EIA RS-310D, DIN41491 and IEC60297 standards. It offers a sturdy and low-cost solution, suitable for installing up to 32 units of 19” equipment. The open frame construction is made of 2.0 mm thick steel and finished in a black (RAL9004) powder coating with fine structure and printed unit measurement indicators. Adjustable vertical supports allow in depth adjustment within a range of 56 to 102 cm while the base angle profiles can be mounted outwards for increased stability or inwards for conserve floor space. Delivery in a flat-down package allows easy transportation of the rack to any installation location, while the simple structure allows assembly by a single person in a record-breaking time.
| PRODUCT FEATURES | ||||
|---|---|---|---|---|
| Unit height | 32 HE | |||
| Max. usable depth | 550 ~ 1015 mm | |||
| Max. load | 450 kg | |||
| Dimensions | 514 x 1562 x 560 ~ 1020 mm (W x H x D) | |||
| Weight | 20.530 kg | |||
| Colours | Black (RAL9004) | |||
| Accessories | Included | 1 set Assembly hardware | ||
| 24 x Cage nuts + screws | ||||
| Optional | KS600 – M6 x 16 mm bolt DIN7985 Black | |||
| KM600 – M6 Cage nuts | ||||
