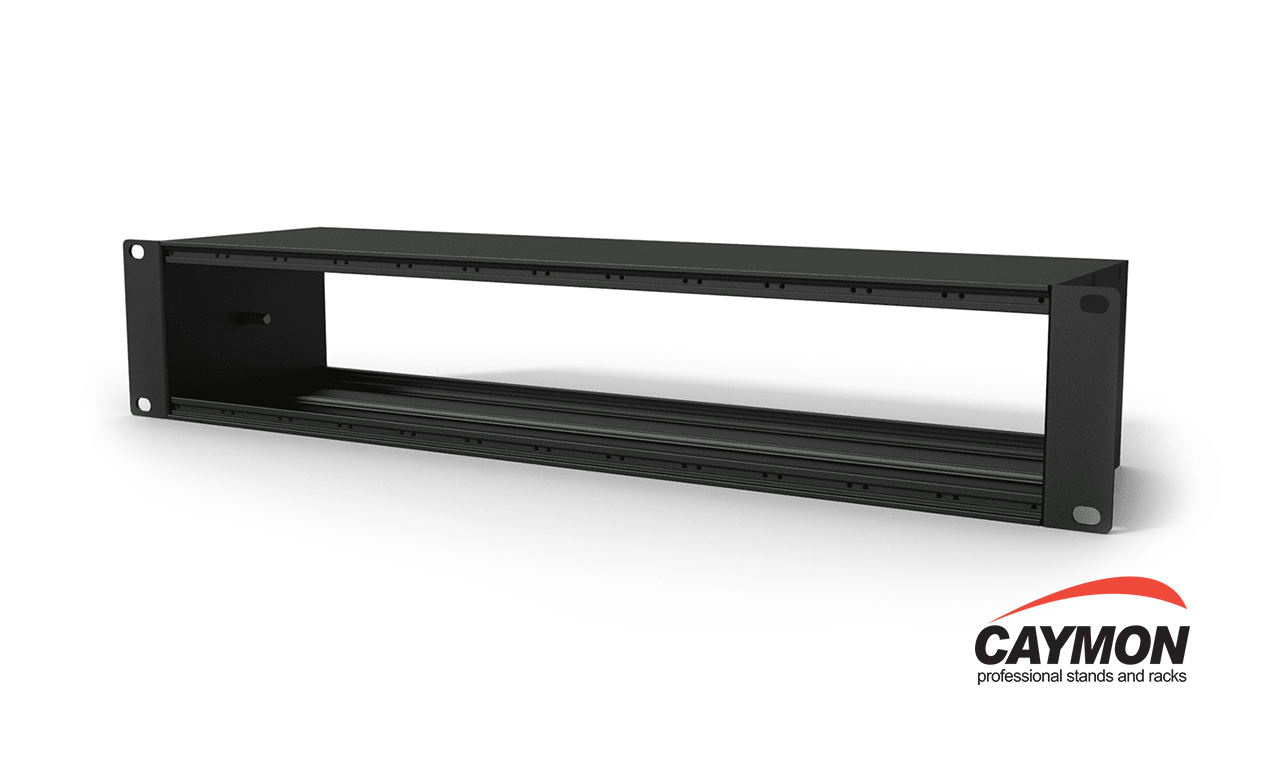

Caymon professional 19” rack mountable 12 space chassis.
Description
Caymon CASY001 19″ rack – Doneo Malta
The CASY001 is a 19” rack mountable chassis which can be fitted with 12 modules from the CASY range. The flexible and modular structure ensures maximum versatility, allowing the system to be adapted to project specific requirements. Possibilities range from audio, video and data interconnection, to power distribution, internal rack supplies and many more. The aluminum top and bottom construction features pre-threaded hole inserts allowing module installation with a maximum of 12 units on both front and rear side. Modules can be fixed inside the unit using the included M3 screws, while the side ears are fitted with holes for fixation to a 19” equipment rack. The side ears are constructed out of cold-rolled steel with internal pillars for chassis grounding. The overall construction is finished in a black (RAL9004) structured and scratch resistant powder coating.
| Product features | ||||
|---|---|---|---|---|
| Dimensions | 483 x 88 x 120 mm (W x H x D) | |||
| Weight | 1.480 kg | |||
| Construction | Alu extrusion with steel side ears | |||
| Mounting | 19” Rack mount (2HE) | |||
| Finish | Structured powder coating | |||
| Colours | Black (RAL9004) | |||
| Module | Units | 12 x front side & 12 x rear side | ||
| Assembly | Pre-threaded M3 screw holes | |||
Highlights
- Flexible structure for system integration & connectivity
- Wide variation of compatible modules available
- Stores 12 units of CASY modules on front & rear
- 19” Rack mountable (2 HE)
- 120 mm usable depth
- Pre-threaded mounting profile for easy assembly
- Aluminum extruded construction with steel side ears
- Structured and scratch resistant black powder coating
Variants
- CASY001/B – Casy chassis 12 space – 2he 19″ mounting – 120mm – black
Additional information
| Brand | Caymon |
|---|---|
| Bracket Type | Racks/Cabinet |
| Rack/Cabinet Type | Rack |
