Powerful multichannel sound tools for Bose L1 systems, with controls so advanced they adapt to you and your instrument.

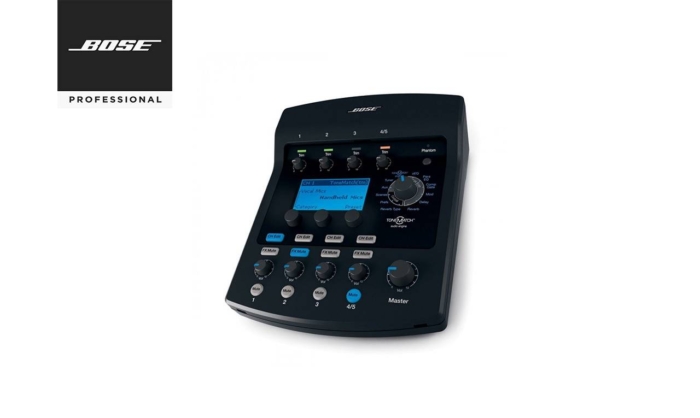

Bose Tonematch T1 Mixer
Bose T1 ToneMatch Audio Engine
- Digital multichannel mixer designed for use with Bose® L1® sound systems
- Features over 100 proprietary ToneMatch presets for instruments and microphones
- Includes Bose zEQ, storable scenes and a suite of studio-class effects
- Presets and firmware updates available free online
Integrated ToneMatch audio engine and audio technologies provide four independent channels featuring our largest library of ToneMatch instrument and microphone presets, proprietary zEQ and a complete suite of studio-class effects and sound processors.
Proprietary ToneMatch presets optimize L1 system to match intended natural sound of specific instruments and vocal mics. Over 100 presets are organized into quick-access banks and can be independently assigned to each channel. Free ongoing updates via USB connection between your computer and ToneMatch audio engine.
- Single-band ParaEQ centers on frequency you specify for each independent channel. Valuable tool for reshaping problematic frequencies in certain venues.
- Five reverb types (small, medium, large, plate and cavern) available for global assignment, with individual channel controls for decay time, mix level and brightness.
- Three delay types (analog, digital, and tape) can be independently assigned to selected channels, with control over feedback time and mix level for each channel. For example, you can select tape delay for your vocal on channel 1 and analog delay for your guitar on channel 2.
- Ten modulation effects (three chorus types, two flange types, four phaser types and one vintage tremolo effect) can be independently assigned to selected channels, with control over designated parameters for each channel.
- Seven dynamics processing types (three compressors, limiter, de-esser, kick gate and noise gate) can be assigned to independent channels.
- Scenes allow you to store, recall and edit “snapshots” of all key ToneMatch audio engine settings at any given time. This feature helps simplify setup when you’re using an L1 system repeatedly in different venues. The engine includes five predefined Bose scenes, five My scenes and five Shared scenes you can give to other L1 owners.
- Chromatic tuner for convenient tuning of instruments.
- Large backlit display with intuitive layout and easy-to-read text for modes and settings.
- Rotary encoder for quick access to modes, effects, and parameters, including ToneMatch presets, zEQ, ParaEQ, reverbs, delays, modulators, dynamics processing, scenes and tuner. Features clean, circular layout.
- Aux mode (channels 1 – 3) send channels’ dry, pre-fader or post-fader audio to aux output for connection to additional L1 systems or recording devices. Independent level controls for optimal signal output.
- Channel volume, mute and FX mute (1 – 4/5) for adjusting individual channel volume, muting individual channels and muting all effects on selected channels.
- Master volume adjusts the overall level of master output.
- Phantom power applies +48V power to input channels 1 – 3 to drive specific microphones.
- ToneMatch cable transfers audio signals and provides power to ToneMatch audio engine from L1 Model II power stand. Use the optional T1 power supply for connections to L1 Model I and Compact systems.
- Mounting bar and carriage for securely attaching ToneMatch audio engine to L1 Model I or Model II loudspeaker.
- Cover and carrying case help protect engine when storing and transporting.
