A powered, portable bass module, the Sub2 subwoofer combines with virtually any portable PA and delivers low-end performance down to 37 Hz.
with low-end range down to 37 Hz
Bose Sub2 – Powered Bass Module
Original price was: €1,375.€1,298Current price is: €1,298.
In stock
In stock
Description
Powered bass module
Sub2 Powered Bass Module
A powered, portable bass module, the Sub2 subwoofer combines with virtually any portable PA and delivers low-end performance down to 37 Hz. Its unique 10 × 18-inch high-excursion neodymium RaceTrack driver allows for an ultra-slim enclosure, delivering performance that rivals traditional round drivers without the cumbersome size, freeing up room in your vehicle and on the stage. Compared to the Sub1 subwoofer, Sub2 is the more powerful subwoofer option for the Bose L1 Pro32 system, combining seamlessly via single-cable SubMatch connectivity. You can stack multiple Sub2 subwoofers for even more low end — or to unleash Cardioid Mode for directional bass. With a Sub2, you get a subwoofer that easily fits onstage — and effortlessly fills up the dance floor.
Features
Add powerful bass to your portable PA system
Go from vehicle to venue easily with a slim design

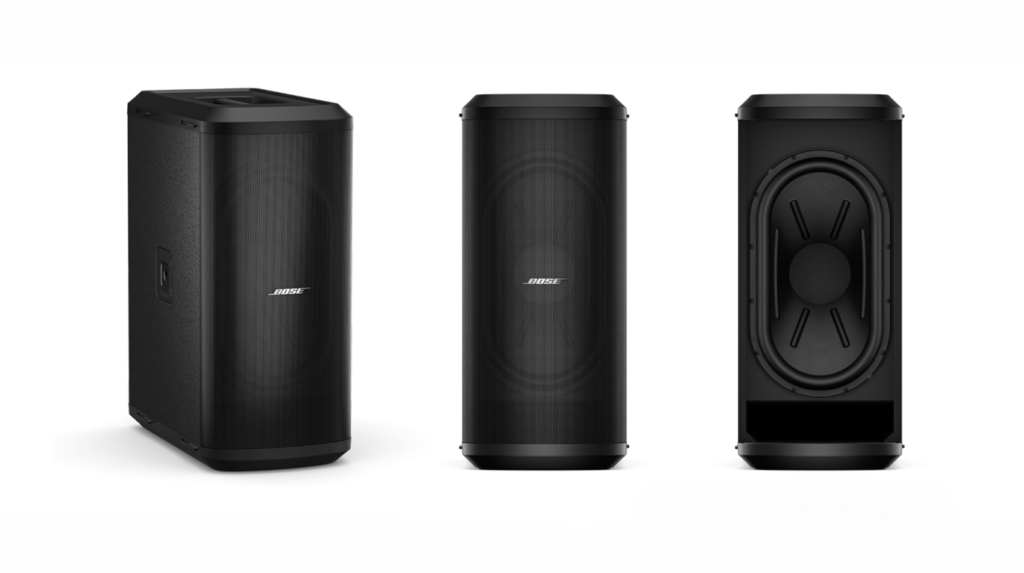

featuring a unique 10 × 18-inch high-excursion neodymium RaceTrack driver; performance that rivals traditional round drivers with a smaller footprint

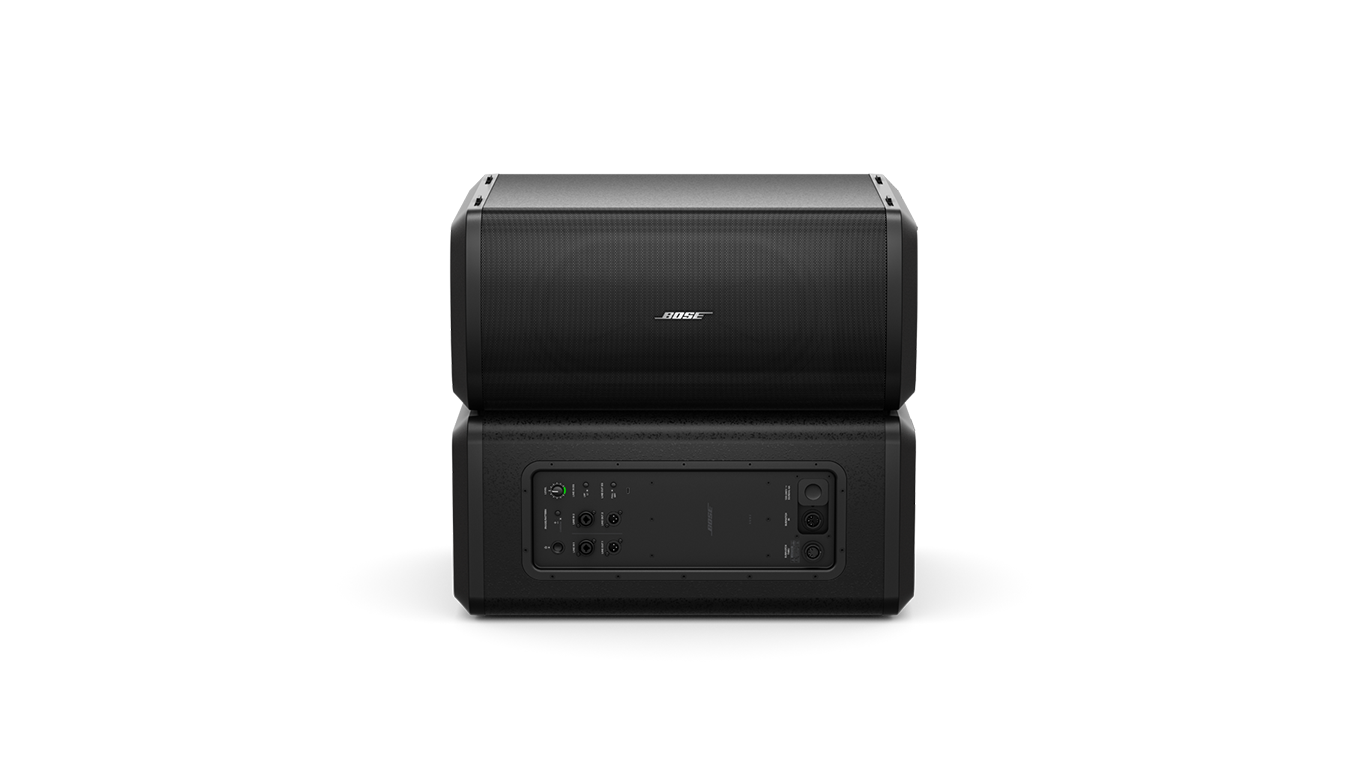

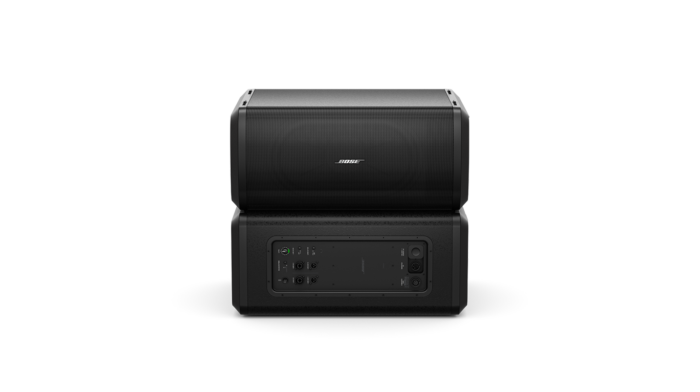

Stack multiple Sub2 subwoofers
for even more bass or unleash Cardioid Mode for focused, directional performance that steers the bass out front and decreases feedback
Combine seamlessly with Bose L1 Pro32 portable line array
via proprietary SubMatch connectivity, which delivers both power and audio over a single cable
Pair with other powered loudspeakers
via line input and output with selectable crossover modes, plus integrated threaded pole mount for use with Bose S1 Pro PA and more
Applications
Designed for a wide range of applications, including:
- Houses of worship
- Schools and universities
- Resorts and hospitality venues
- Live music performances
- Business presentations
- Mobile DJs
Technical Specifications
Amplification
| Number of Channels | 1 |
| Power Class | Class D |
Audio Inputs, analog
| Input Channels | 2 |
| Connectors | (1) XLR-1/4-in TRS combo, (1) SubMatch (proprietary multi-pin cable) |
| Sensitivity Options | +10 dB to +45 dB, input to driver |
| Phantom Power | No |
Electrical
AC Power Connector | IEC, SubMatch |
AC Power Input | 100–240 VAC (±10%), 50/60 Hz |
Current Draw, Inrush | 15.2 A at 120 VAC, 60 Hz / 28.6 A at 230 VAC, 50 Hz |
Indicators and Controls

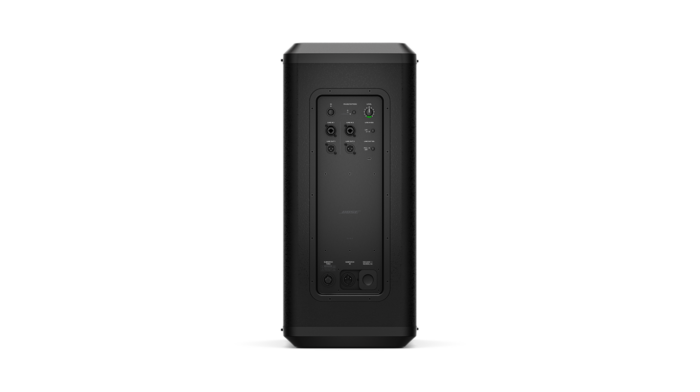

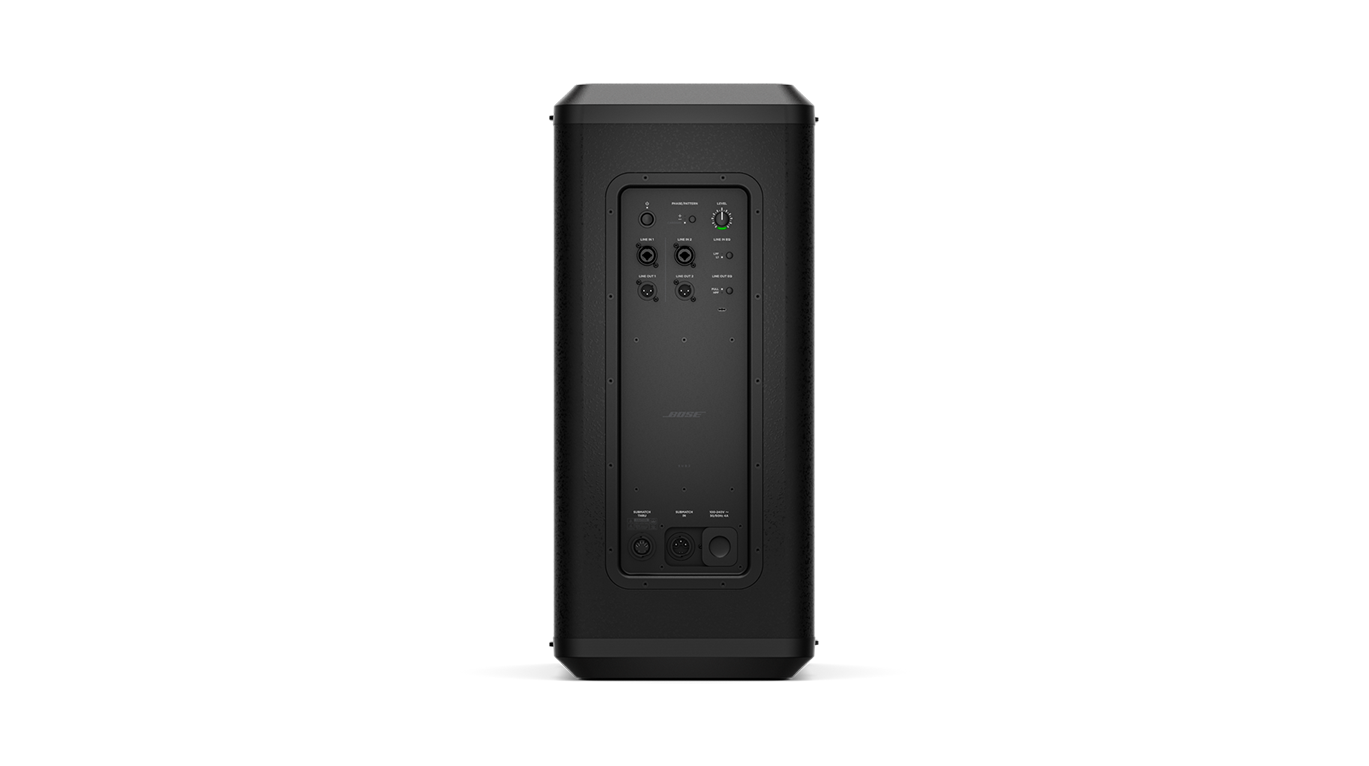

| Controls, Rear Panel | Power, EQ, and Volume Control |
| LED Status Indicators | (1) standby LED, (1) signal/clip LED, (2) input EQ LEDs, (2) output EQ LEDs, (3) phase/pattern LEDs |
Integrated DSP
DSP-Enabled | Yes |
Processing Functions | Input EQ, output EQ, phase/pattern polarity inversion |
Physical
| Colors | Black |
| Grille | Perforated steel, powder-coated finish |
Product Dimensions (H×W×D) | 27.3 in × 12.5 in × 21.7 in (694 mm × 317 mm × 551 mm) |
| Shipping Dimensions (H×W×D) | 26.0 in × 15.2 in × 31.1 in (660 mm × 385 mm × 790 mm) |
| Enclosure Material | High-impact polypropylene, birch plywood |
| Cooling System | Convection cooling |
| Net Weight | 50.7 lb (23.0 kg) |
| Shipping Weight | 61.0 lb (27.7 kg) |
Performance
| Frequency Range (-10 dB) | 29 Hz – 260 Hz |
| Power Handling, Peak | 1000 W |
| Calculated Maximum SPL @ 1 m | 129.8 dB |
| Coverage, Vertical | Omnidirectional (with -10 dB rear rejection in cardioid mode) |
Transducers
Crossover | 200 Hz |
| Low-Frequency | 1 × RaceTrack low-frequency 10 × 18 in (254 × 457 mm) driver |
Additional information
| Brand | Bose |
|---|---|
| Product Colours | Black |
| Speaker Type | Subwoofer |
| Connection Type | USB C, XLR |
