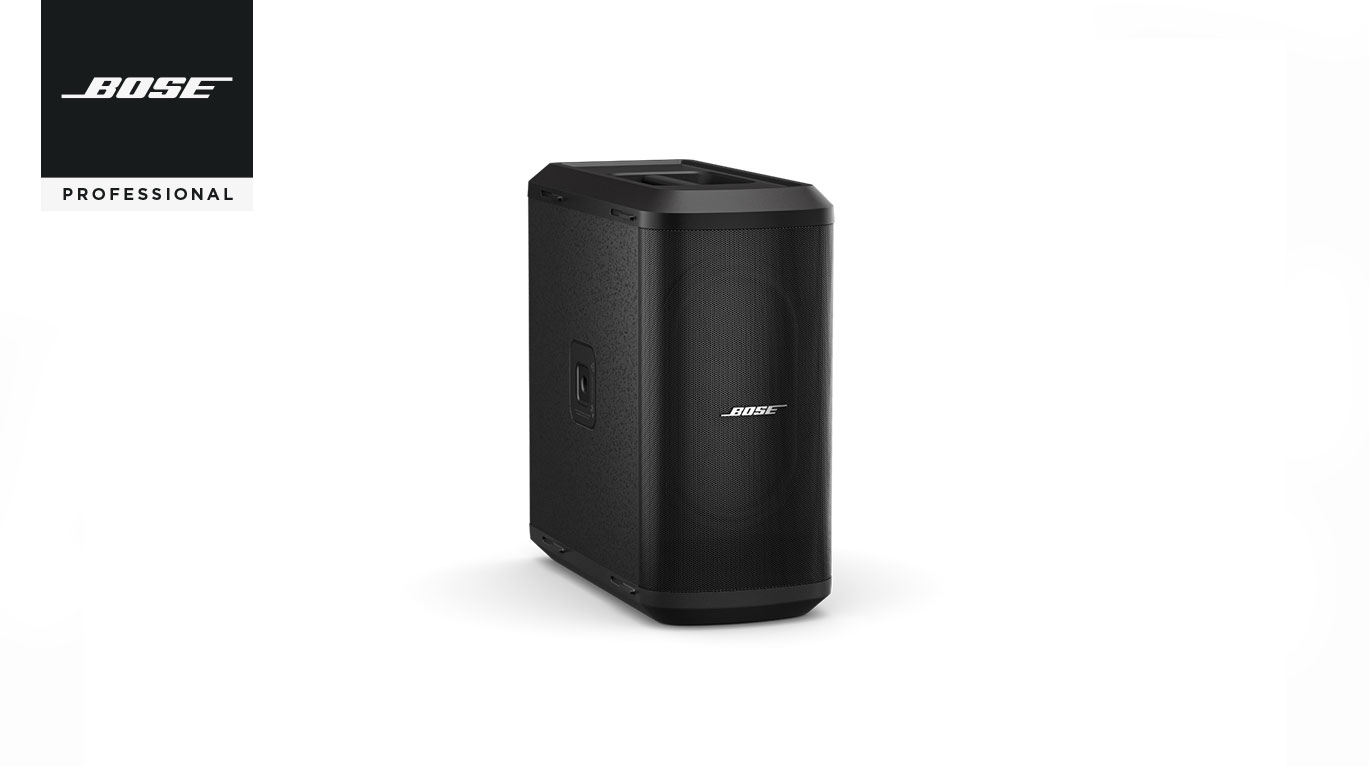

Bose Sub1 Powered Bass Module

Original price was: €982.Current price is: €888.

Call for availability

A powered, portable bass module, the Sub1 subwoofer combines with virtually any portable PA and delivers low-end performance down to 40 Hz.

Call for availability

SEND EMAIL QUERY

Description

Bose Sub1 Powered
Bass Module

A powered, portable bass module, the Sub1 subwoofer combines with virtually any portable PA and delivers low-end performance down to 40 Hz. It’s unique 7” × 13” high-excursion RaceTrack driver allows for an ultra-slim enclosure, delivering a performance that rivals traditional round drivers without the cumbersome size, freeing up room in your vehicle and on the stage. Compared to the Sub2 subwoofer, Sub1 is the more compact subwoofer option for the Bose L1 Pro32 system, combining seamlessly via single-cable SubMatch connectivity. You can stack multiple Sub1 subwoofers for even more low-end — or to unleash Cardioid Mode for directional bass. With a Sub1, you get a subwoofer that goes virtually anywhere and effortlessly fills out your sound.

Features

  • Add powerful bass to your portable PA system with a low-end range down to 40 Hz
  • Go from vehicle to venue easily with a slim design featuring a unique 7” × 13” high-excursion RaceTrack driver; a performance that rivals traditional round drivers with a smaller footprint
  • Stack multiple Sub1 subwoofers for even more bass or unleash Cardioid Mode for focused, a directional performance that steers the bass out front and decreases feedback
  • Combine seamlessly with Bose L1 Pro32 portable line array via proprietary SubMatch connectivity, which delivers both power and audio over a single cable
  • Pair with other powered loudspeakers via line input and output with selectable crossover modes, plus integrated threaded pole mount for use with Bose S1 Pro PA and more

Technical Specifications

System Performance

Model NameSub 1
System TypeSelf-powered bass module
Frequency Response (-3 dB) 140 Hz to 180 Hz
Frequency Range (–10 dB)32 Hz to 250 Hz
Nominal Vertical Coverage Pattern
Nominal Horizontal Coverage PatternOmnidirectional (with –10 dB rear rejection in Cardioid mode)
Calculated Maximum SPL @ 1 m, continuous 2118.6 dB
Calculated Maximum SPL @ 1 m, peak 2124.6 dB
Crossover200 Hz

Transducers

Low Frequency1 × RaceTrack low-frequency driver 7″ × 13″
Low Frequency Voice Coil Size2″
Driver ProtectionDynamic limiting

Amplification

TypeClass D
Low Frequency
Amplifier Channel
480 W
CoolingConvection cooling

Onboard Mixer

ChannelsTwo
Channel 1 & 2 Input: Audio TypeCombination XLR or 1/4″ TRS connector (mic/instrument/line)
Channel 1 & 2 Input: Impedance100 KΩ
Channel 1 & 2 Input: Channel Gain+10 dB to +45 dB; from input to driver, controlled by volume control
Channel 1 & 2 Input: Max Input Signal+24 dBu
Channel 1 & 2 Output: Audio TypeXLR connector, line-level, full-frequency bandwidth
SubMatch Input: Audio TypeBose proprietary multi-pin cable
SubMatch Thruput: Audio TypeBose proprietary multi-pin cable
LED IndicatorsStandby, Phase/Pattern selection, Input EQ selection, Output EQ selection, Signal/Clip Indicator

AC Power

Ac Power Input100–240 VAC (±20%, 50/60 Hz)
Low Frequency
Input: Electrical Type
IEC, SubMatch
Initial turn on inrush current14.9 A at 120 V; 29.3 A at 230 V
Inrush current after AC mains interruption of 5 s
5.8 A at 120 V; 32.0 A at 230 V

Enclosure

ColorBlack
Enclosures Material
High-impact polypropylene, birch plywood
Grille MaterialPowder-coated perforated steel
Product Dimensions (H × W × D)
533 × 260 × 529 mm (21.0 × 10.2 × 20.8 in)
Shipping Dimensions (H × W × D)620 × 620 × 330 mm (24.41 × 24.41 × 12.99 in)
Net Weight 315.5 kg (34.1 lbs)
Shipping Weight18.0 kg (39.6 lbs)
Warranty Period2 Years
Included AccessoriesIEC power cord, slip cover
Optional AccessoriesSub1 Roller Bag, Adjustable Speaker Pole, SubMatch Cable

Additional information

Brand

Bose

Product Colours

Black

Speaker Type

Subwoofer

Connection Type

USB C, XLR
