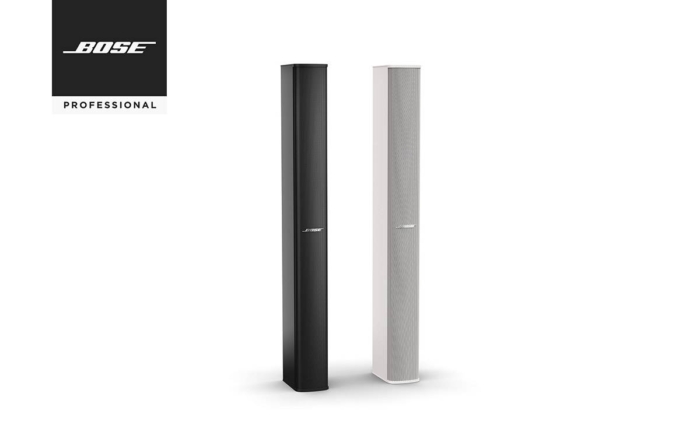

Bose Panaray MA12EX

Call for price

Bose Panaray MA12EX articulated Array speaker configuration provides wider 160° horizontal coverage and weather-resistance.



Bose Panaray MA12EX line array speakers – Doneo Malta

Twelve 2.25″ (64 mm) full-range drivers mounted in a vertical line array deliver wide horizontal coverage with narrow vertical pattern control

Modular design allows stacking of multiple enclosures in a line array configuration to provide increased vertical pattern control which improves “throw” distance and reduces unwanted floor/ceiling reflections

Articulated Array® design provides wide 160° horizontal coverage with 20° nominal vertical coverage for a single module. Actual vertical coverage varies with number of modules in line array configuration

Frequency range down to 58 Hz allows full-range speech and light music reinforcement without separate low-frequency loudspeakers. For extended bass and higher output levels, use with Bose MB4, MB12, or MB24 modular bass loudspeakers

Optional brackets allow easy installation of single-, double- or triple-stack line array modules


  • Houses of worship
  • Multi-purpose spaces
  • Recreation
  • Restaurants and bars
  • Auditoriums
  • Transportation facilities
  • Gymnasiums
  • Atriums and malls

Technical Summary

Frequency Response (+/-3 dB)
75 Hz – 13 kHz

Frequency Range (-10 dB)
58 Hz – 16 kHz

Nominal Dispersion
160° H x 20° V

Long-Term Power Handling
150 W (600 W peak)

Sensitivity (SPL / 1 W @ 1 m)
87 dB SPL

Maximum SPL @ 1 m
109 dB SPL (115 dB SPL peak)

Nominal Impedance
8 Ω


Extruded-aluminum sidewalls with zinc-plated steel top and bottom endcaps, all powder coated

Outdoor per IEC 529 IPX5

Two (2) parallel-wired NL4 Neutrik Speakon connectors
Two (2) two-conductor barrier strips

Suspension / Mounting
Six (6) x M6 threaded inserts (back)

38.8″ H x 4.1″ W x 5.5″ D (985 mm x 104 mm x 139 mm)

Net Weight
21 lb (9.4 kg)

Black, White, Paintable

Package Contents
1 loudspeaker

Additional information



Speaker Type

Surface mount, Line Array Speakers

Audio Features
Product Range
