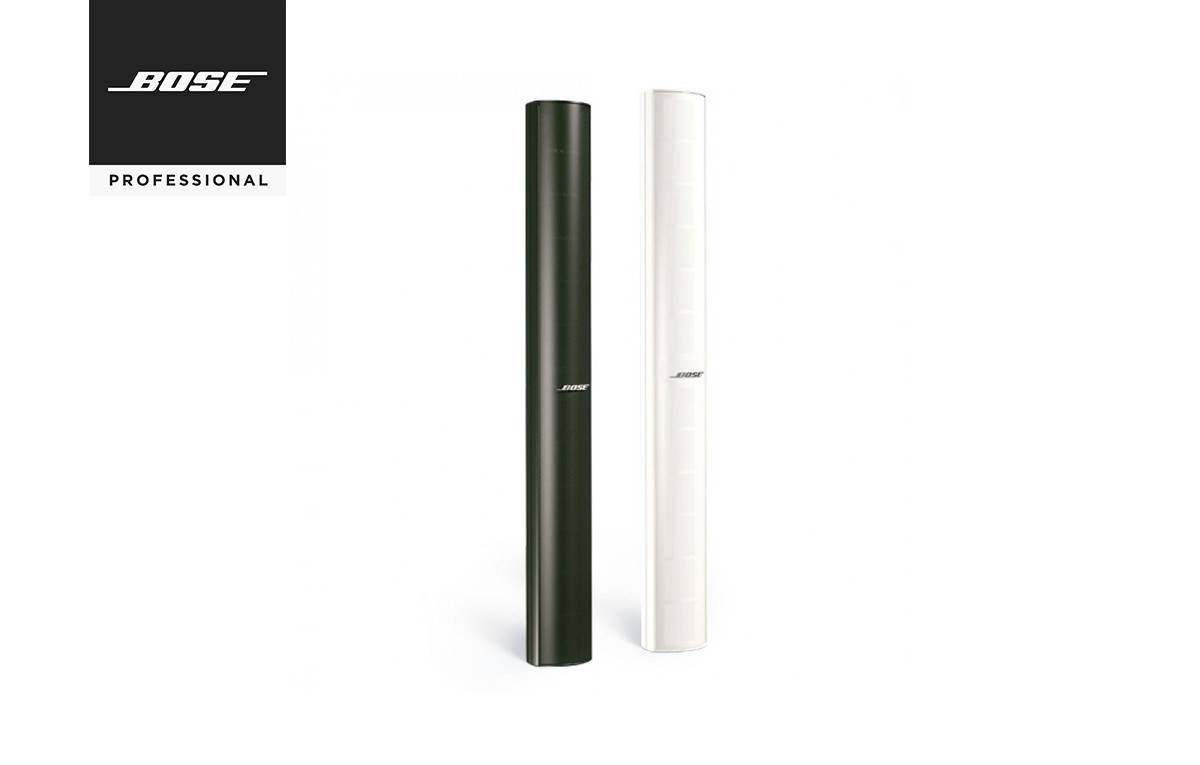

Bose Panaray MA12 145° horizontal coverage designed to provide outstanding vocal intelligibility in acoustically demanding spaces.
Wide 145° horizontal coverage. Designed to provide outstanding vocal intelligibility in acoustically demanding spaces. Slim column enclosure blends with almost any décor.
For indoor applications only.
Twelve 2.25″ (64 mm) drivers mounted in a vertical line array deliver wide horizontal coverage with narrow vertical pattern control
Modular design allows stacking of multiple enclosures in a line array configuration to provide increased vertical pattern control which improves “throw” distance and reduces unwanted floor/ceiling reflections
145° horizontal x 20° nominal coverage for a single module. Vertical coverage varies with number of modules stacked in line array configuration
Mid/high configuration allows bass management and design flexibility. Use with Bose MB4, MB12, or MB24 modular bass loudspeakers for full-range reinforcement
Optional brackets allow easy installation of single-, double- or triple-stack line array modules
Applications
- Houses of worship
- Multi-purpose spaces
- Recreation
- Restaurants and bars
- Auditoriums
- Transportation facilities
- Gymnasiums
- Atriums and malls
Technical Summary
Frequency Response (+/-3 dB)
155 Hz – 12 kHz
Frequency Range (-10 dB)
100 Hz – 16 kHz
Nominal Dispersion
145° H x 20° V
Long-Term Power Handling
300 W (1200 W peak)
Sensitivity (SPL / 1 W @ 1 m)
88 dB SPL
Maximum SPL @ 1 m
113 dB SPL (119 dB SPL peak)
Nominal Impedance
8 Ω
