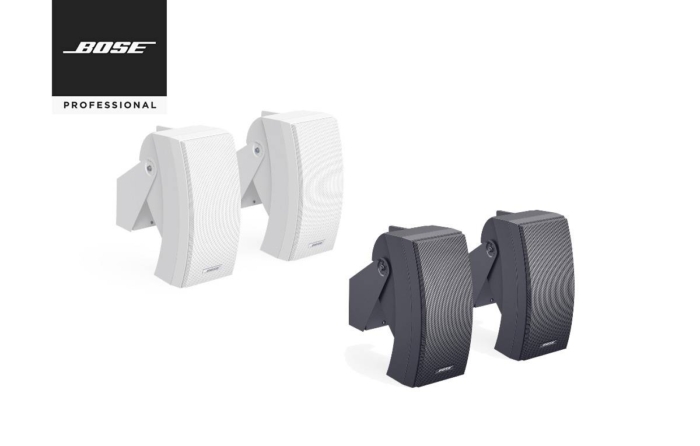

Bose Panaray 302 A loudspeaker

Call for price

Bose Panaray 302A full-range, two-way loudspeaker designed primarily for background/foreground music, indoor and outdoor use.



Bose Panaray 302 A loudspeaker – Doneo Malta

Full-range, two-way loudspeaker designed primarily for background/foreground music. It is appropriate for both indoor and outdoor applications. Its Articulated Array® design provides a wide 175° x 90° pattern to effectively cover a broad area with a single loudspeaker.

For indoor and outdoor applications.

Articulated Array® design provides wide 175° x 90° coverage to deliver wide-range reproduction over a broad dispersion area

Two-way design with 5.25″ (133 mm) woofer and two 2.5″ (64 mm) drivers for extended, smooth response

Frequency range down to 60 Hz allows full-range speech and light music reinforcement without the need for subwoofers in many applications

Integrated multi-tap line transformer for 70 V or 100 V applications

Included mounting hardware permits fast and easy installation. Provides 30° pitch when mounted vertically, or 90° pitch when mounted on a horizontal surface

Weather resistant design and hardware for reliable performance indoors or outdoors


  • Restaurants and bars
  • Conference centers
  • Foreground retail
  • Theme parks
  • Indoor arenas
  • Outdoor shopping centers

Technical Summary

Frequency Response (+/-3 dB)
75 Hz – 16 kHz

Frequency Range (-10 dB)
60 Hz – 19 kHz

Nominal Dispersion
175° H x 90° V

Long-Term Power Handling
100 W (400 W peak)

Sensitivity (SPL / 1 W @ 1 m)
82 dB SPL

Maximum SPL @ 1 m
102 dB SPL (108 dB SPL peak)

Nominal Impedance
6 Ω

Additional information



Speaker Type

Water Resistant, 100 Volt, Indoor/outdoor
