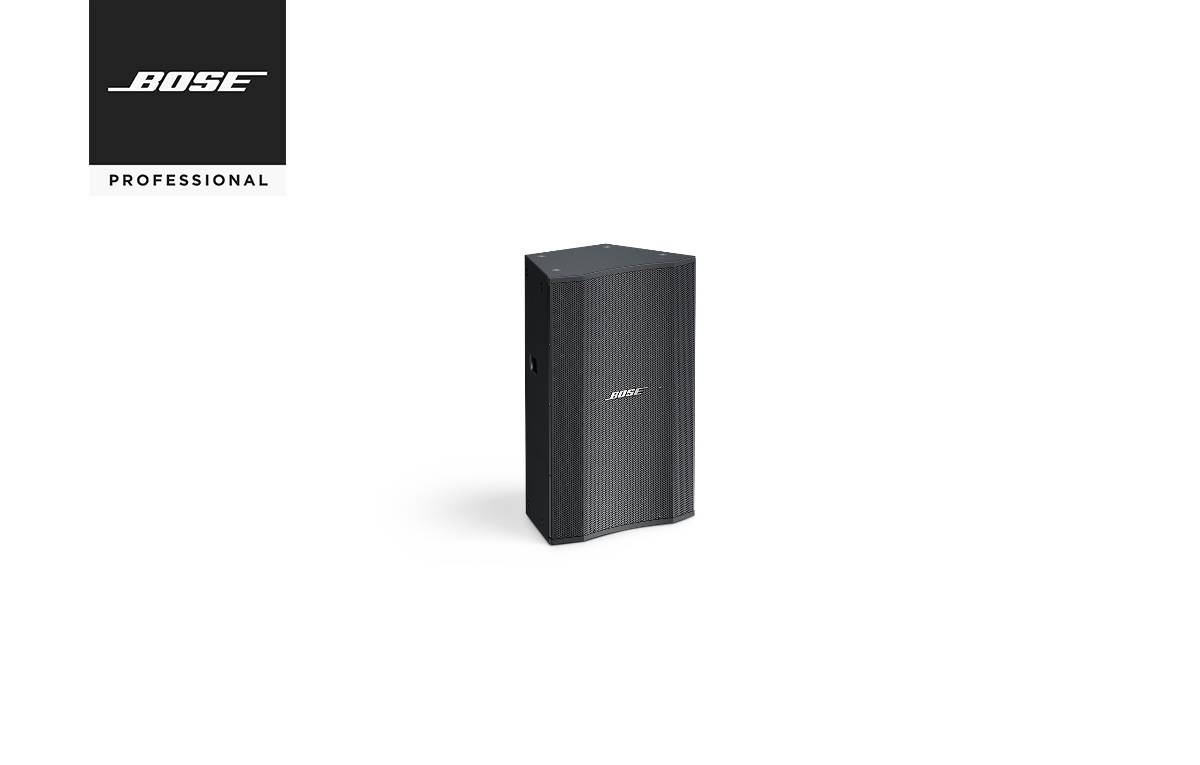

Large-format waveguide and 90° x 70° pattern designed for use with other LT loudspeakers to form Coherent Zone arrays in medium to large permanent installations.
Large-format waveguide and 90° x 70° pattern designed for use with other LT loudspeakers to form Coherent Zone arrays in medium to large permanent installations requiring precise coverage and high intelligibility.
For indoor and outdoor applications.
Features
90° x 70° coverage for short-throw applications in auditoriums, worship facilities, performing arts centers, stadiums and arenas
Mid/high-frequency loudspeaker designed for use in arrays with separate LF augmentation (Bose® MB12 or MB24 bass arrays) or voice-only applications
Bose V2 midrange manifold sums output of 2 x 4.5″ (114 mm) extended-range cone drivers for lower breakup distortion and improved transient response. Provides a smoother, more natural vocal range compared to single 8″ to 12″ woofers. The LT 9702 WR loudspeaker utilizes two Bose V2 midrange manifolds
Bose large-format waveguide provides effective 90° x 70° pattern control to approximately 250 Hz (horizontal) and 500 Hz (vertical). Minimizes loudspeaker overlap in arrays to reduce comb-filter interference and improve intelligibility
Applications
- Stadiums
- Arenas
- Houses of worship
- Auditoriums
- Performing arts venues
- Outdoor event venues
Specs
Technical Summary
Frequency Response (+/-3 dB)
220 Hz – 16 kHz
Frequency Range (-10 dB)
170 Hz – 18 kHz
Nominal Dispersion
90° H x 70° V
Sensitivity (SPL / 1 W @ 1 m)
105 dB SPL
Maximum SPL @ 1 m
126 dB SPL (132 dB SPL peak)
Long-Term Power Handling
140 W (560 W peak)
Nominal Impedance
8 Ω
