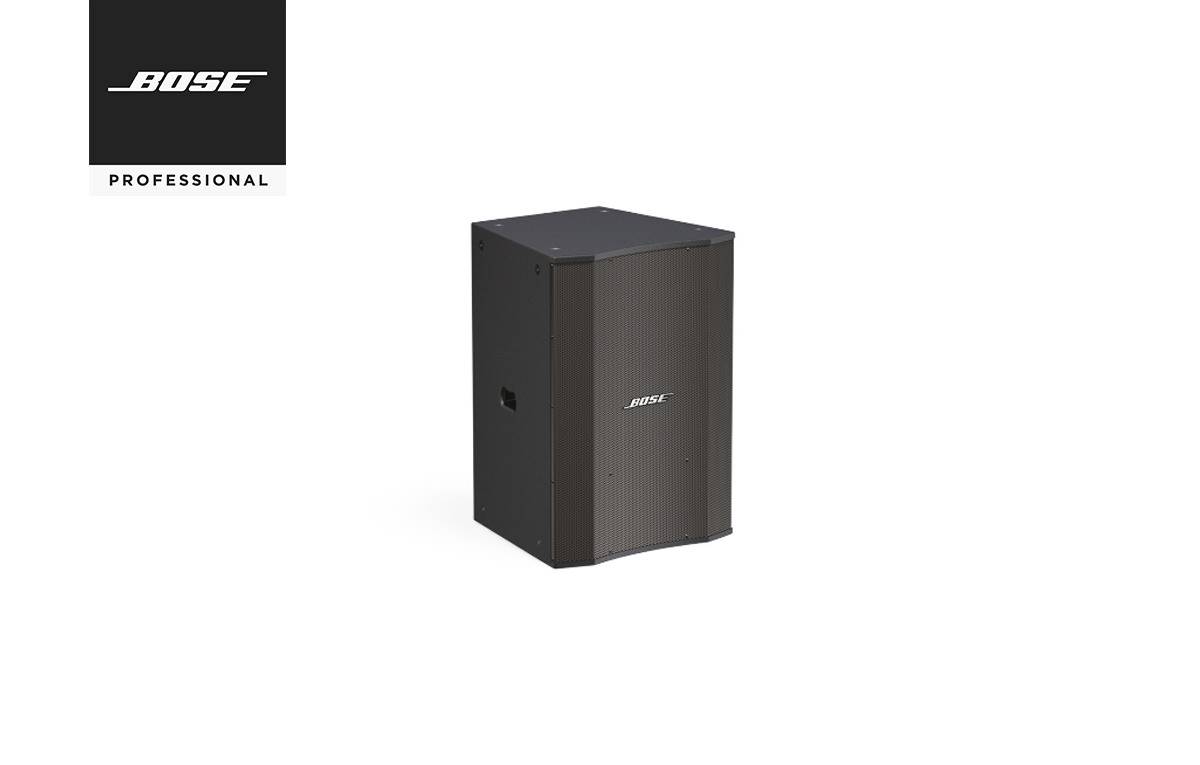

Bose LT 9403

Call for price

Bose LT9403 medium-format 90° x 40° pattern designed as the primary reinforcement source for smaller venues, or for use with other LT loudspeakers.

SEND EMAIL QUERY

Description

Bose LT 9403 medium format waveguide loudspeaker – Doneo Malta

Medium-format waveguide and 90° x 40° pattern designed as the primary reinforcement source for smaller venues, or for use with other LT loudspeakers to form Coherent Zone arrays in medium to large venues.

For indoor applications only.


90° x 40° coverage for short-throw applications in auditoriums, worship facilities, performing arts centers and arenas

Full-range loudspeaker with single 15” (381 mm) woofer provides 50 Hz bass to reduce need for additional low-frequency speakers in smaller venues

Bose® V2 midrange manifold sums output of 2 x 4.5” (114 mm) extended-range cone drivers for lower breakup distortion and improved transient response. Provides a smoother, more natural vocal range compared to single 8” to 12” woofers. The LT 9403 loudspeaker utilizes a single Bose V2 midrange manifold

Bose large-format waveguide provides effective 90° x 40° pattern control to approximately 300 Hz (horizontal) and 1.5 kHz (vertical). Minimizes loudspeaker overlap in arrays to reduce comb-filter interference and improve intelligibility

Applications

  • Indoor arenas
  • Houses of worship
  • Auditoriums
  • Performing arts venues

Specs

Technical Summary

Frequency Response (+/-3 dB)
50 Hz – 16 kHz

Frequency Range (-10 dB)
42 Hz – 18 kHz

Nominal Dispersion
90° H x 40° V

Sensitivity (SPL / 1 W @ 1 m)
95 dB SPL

Maximum SPL @ 1 m
122 dB SPL (128 dB SPL peak)

Long-Term Power Handling
500 W (2000 W peak)

Nominal Impedance
8 Ω


Additional information

Brand

Bose

Speaker Type

Surface mount
