A balance of power and portability, the L1 Pro16 portable line array is a streamlined system with high output and an extended low-frequency range. With a 16-driver articulated J-shape line array, the L1 Pro16 delivers 180-degree horizontal sound coverage, great for small-to-medium-sized clubs, bars, and other venues.

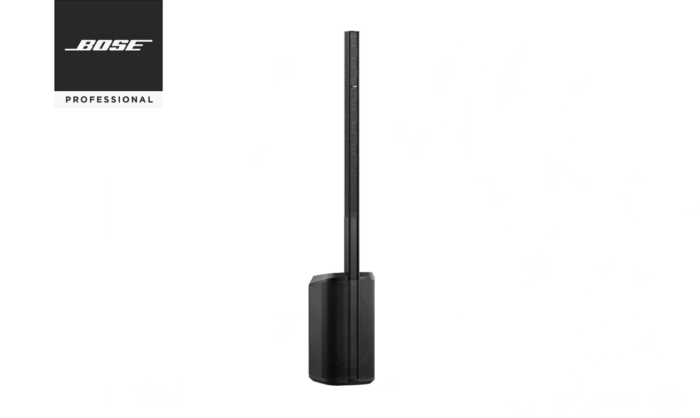

Bose L1 Pro16 Portable – Line Array System
Original price was: €1,999.€1,699Current price is: €1,699.
In stock
In stock
Description
L1 Pro16 Portable
Line Array System
A balance of power and portability, the L1 Pro16 portable line array is a streamlined system with high output and an extended low-frequency range. With a 16-driver articulated J-shape line array, the L1 Pro16 delivers 180-degree horizontal sound coverage, great for small-to-medium-sized clubs, bars, and other venues. An integrated subwoofer with a RaceTrack driver delivers powerful bass without the bulk; a built-in multi-channel mixer offers EQ, reverb, and phantom power, plus Bluetooth® streaming and access to the full library of ToneMatch presets; and the intuitive L1 Mix app places wireless control in your hands from your smartphone. For DJs, singer-songwriters, and small ensembles, the L1 Pro16 gives you expanded bandwidth and supreme clarity — the power to sound your best and simply perform.
- Balance power and portability with the L1 Pro system optimized for both on-the-go simplicity and expanded bandwidth, ideal for small-to-medium-sized clubs, bars, and other venues
- J-shaped line array featuring 16 articulated 2” neodymium drivers; 180-degree horizontal coverage, tight vertical control on top, wide dispersion on the bottom to cover audiences whether set up on the floor or an elevated stage, even off to the extreme sides in medium to large venues
- Deliver premium full-range sound with consistent tonal balance for singer-songwriters, mobile DJs, small ensembles, and more
- Maintain supreme vocal and instrument clarity with a J-shape extended-frequency line array featuring 16 articulated 2” neodymium drivers and wide 180-degree horizontal coverage
- Bring more bass with less bulk with an integrated 10” × 18” high-excursion neodymium RaceTrack woofer; a performance that rivals traditional round drivers with a smaller footprint
- Go from vehicle to venue easily with a modular three-piece system that’s easier to pack, carry, and set up
- Select between optimized system EQ presets for live music, recorded music, and more
- Connect various audio sources easily via built-in mixer with two combo XLR-1/4” phantom-powered inputs, 1/4″ and 1/8″ (3.5 mm) aux input, plus Bluetooth® streaming — and access system EQ and ToneMatch presets, volume, tone, and reverb via illuminated controls
- Add in even more instruments and other audio sources via dedicated ToneMatch port; one cable provides both power and digital audio between the system and a Bose T4S or T8S mixer (optional)
- Take wireless control with the L1 Mix app on your smartphone to adjust settings instantly from your phone, roam the room and fine-tune, and access the ToneMatch library of custom EQ presets
- Stream high-quality Bluetooth® audio from compatible devices
Technical Specifications
System Performance
| System Type | Self-powered line array with integrated bass module and onboard three-channel digital mixer |
Frequency Response (–3 dB) 1 | 42 Hz to 16 kHz |
Frequency Range (–10 dB) | 31 Hz to 18 kHz |
Nominal Vertical Coverage Pattern | 0°/30° |
Vertical Beam Type | J-shape |
Nominal Horizontal Coverage Pattern | 180° |
Calculated Maximum SPL @ 1 m, continuous 2 | 118 dB |
Calculated Maximum SPL @ 1 m, peak 2 | 124 dB |
| Crossover | 200 Hz |
Transducers
| Low Frequency | 1 × RaceTrack low-frequency driver 10″ x 18″ |
Low Frequency Voice Coil Size | 3″ |
High / Mid Frequency | 16 × Articulated 2″ drivers |
High / Mid Frequency Voice Coil Size | 3/4″ |
| Driver Protection | Dynamic limiting |
Amplification
| Type | Two-channel, Class D |
Low Frequency Amp Channel | 1000 W |
High / Mid Frequency Amp Channel | 250 W |
Cooling | Convection cooling |
Onboard Mixer
| Channel 1 & 2 Input: Audio Type | Combination XLR or 1/4″ TRS connector (mic/instrument/line) |
Channel 1 & 2 Input: Input Impedance | 10 KΩ (XLR); 2 MΩ (TRS) |
| Channel 1 & 2 Input: Trim | 0 dB, 12 dB, 24 dB, 36 dB, and 45 dB analog gain steps automatically selected and com- pensated by DSP |
| Channel 1 & 2 Input: Channel Gain | –100 dB to +75 dB (XLR); –115 dB to +60 dB (TRS); from input to driver, controlled by volume knob |
| Channel 1 & 2 Input: Max Input Signal | +10 dBu (XLR); +24 dBu (TRS) |
| Channel 3 Input: Audio Type | 1/8″ TRS (stereo-summed, line), 1/4″ TRS (line), Bluetooth® audio streaming |
| Channel 3 Input: Input Impedance | 40 KΩ (3.5 mm); 200 KΩ (TRS) |
Channel 3 Input: Channel Gain | –105 dB to +50 dB (3.5 mm); –115 dB to +40 dB (TRS); from input to driver, controlled by volume knob |
| Channel 3 Input: Max Input Signal | +11.7 dBu (3.5 mm); +24 dBu (TRS) |
| ToneMatch: Audio Type | RJ-45 connector for ToneMatch cable connection, providing digital audio and power connection for the optional T4S/T8S ToneMatch Mixer |
| Output: Audio Type | XLR connector, line level, full-frequency bandwidthXLR connector, line level, full-frequency bandwidth |
| Bluetooth Enabled | Yes |
| Bluetooth Types | AAC or SBC for audio streaming, LE for system control |
| Channel Controls | 3 digital rotary encoders |
| Phantom Power | Channel 1 & 2 |
| LED Indicators | Standby, Channel Parameters, Signal/Clip, Mute, Phantom Power, ToneMatch, Bluetooth LED, System EQ |
| AC Power | AC Power Input – 100–240 VAC (±20%, 50/60 Hz) |
| Input: Electrical Type | IEC |
| Initial turn-on inrush current | 15.7 A at 120 V; 28.4 A at 230 V |
| Inrush current after AC mains interruption of 5 s | 2.4 A at 120 V; 8.1 A at 230 V |
Physical
| Color: | Black |
Enclosures Material | – Power stand: High-impact polypropylene – Extension & Array: High-impact ABS |
| Grille Material | Powder-coated perforated steel |
| Product Dimensions (H × W × D) | 2011 × 355 × 456 mm (79.2 × 14.0 × 18 in) |
| Shipping Dimensions (H × W × D) | 1118 × 460 × 650 mm (44.02 × 18.11 × 25.59 in) |
| Net Weight 3 | 23.0 kg (50.6 lbs) |
| Shipping Weight | 28.4 kg (62.6 lbs) |
| Included Accessories | Carry bag for arrays, IEC power cord |
| Optional Accessories | L1 Pro16 System Bag, L1 Pro16 Slip Cover |
| Warranty Period | 2 Years |
Additional information
| Brand | Bose |
|---|---|
| Product Colours | Black |
| Speaker Type | Line Array Speakers |
| Connection Type | USB C, XLR |
