Technical Summary

Frequency Response (+/-3 dB)
70 Hz – 10 kHz

Frequency Range (-10 dB)
60 Hz – 15 kHz

Nominal Dispersion
360° H x 50° V

Long-Term Power Handling
80 W (320 W peak)

Sensitivity (SPL / 1 W @ 1 m)
87 dB SPL

Maximum SPL @ 1 m
100 dB SPL (106 dB SPL peak)

Nominal Impedance
4 Ω (transformer bypassed)

Applications

Shopping centers, Restaurants and bars, Cafes, Resorts and hospitality venues, Theme parks, Atrium’s and malls

Key Features

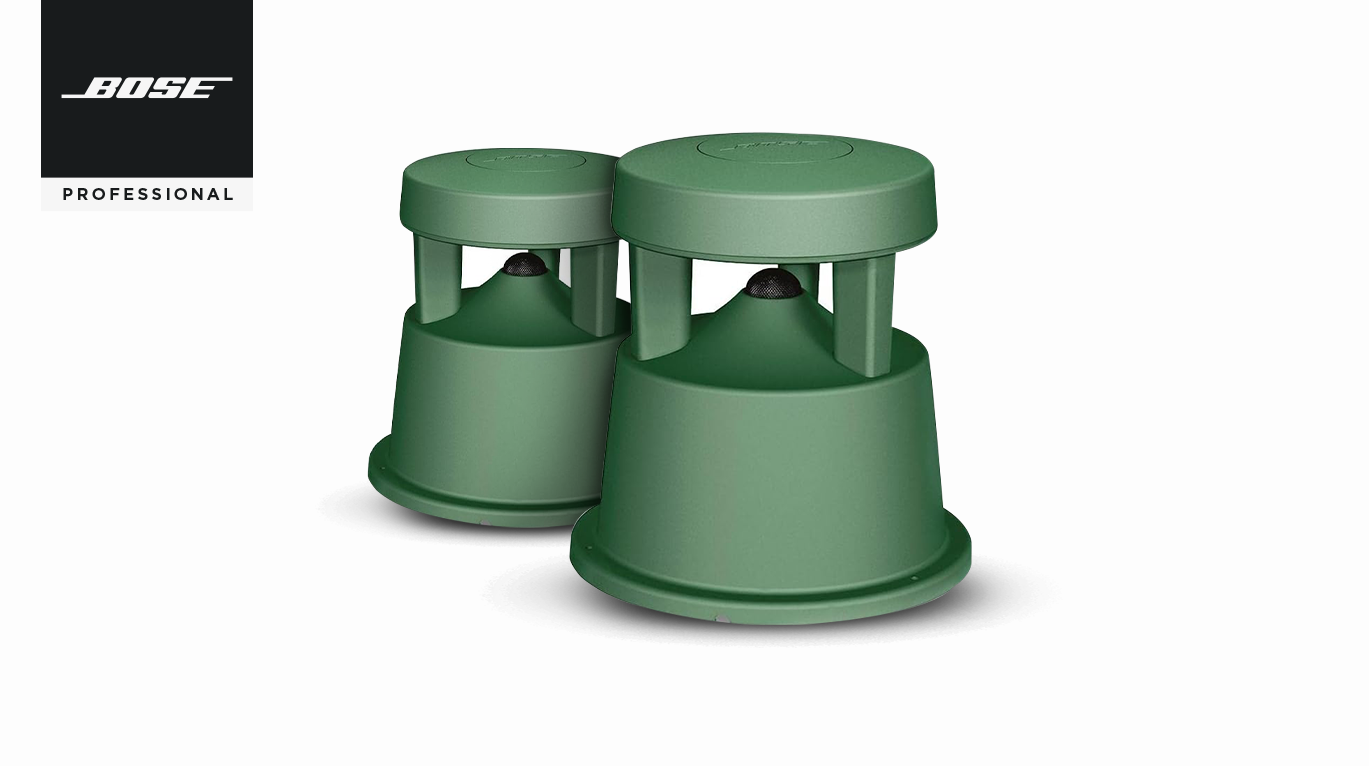

Full-range environmental loudspeaker with one downward firing 4.5″ (114 mm) advance composite environmental full-range driver for in-ground or above-ground mounting

Domed port grille reflects sound into the listening area for clear, consistent performance

Cabinet shape acts as acoustic diffuser directing mid- and high-frequency energy out towards listeners. Base of loudspeaker acts as a tuned, multi-chambered ported enclosure

Multi-tap line transformer provides easy-to-change tap settings

Tamper-resistant design

Internal speaker protection circuit safeguards drivers

Physical

Enclosure
Glass-reinforced polypropylene, textured

Environmental
Outdoor per IEC 529 IP35

Connectors
External multi-wire cable with wire nuts included

Suspension / Mounting
Three (3) #10 (M4) holes in base. Three #10 M4 screws required

Dimensions (Enclosure only)
Diameter: 14.5″ (368 mm)
Height: 14.9″ (379 mm)

Net Weight
14.5 lb (6.6 kg)

Color
Green

Package Contents
1 loudspeaker
