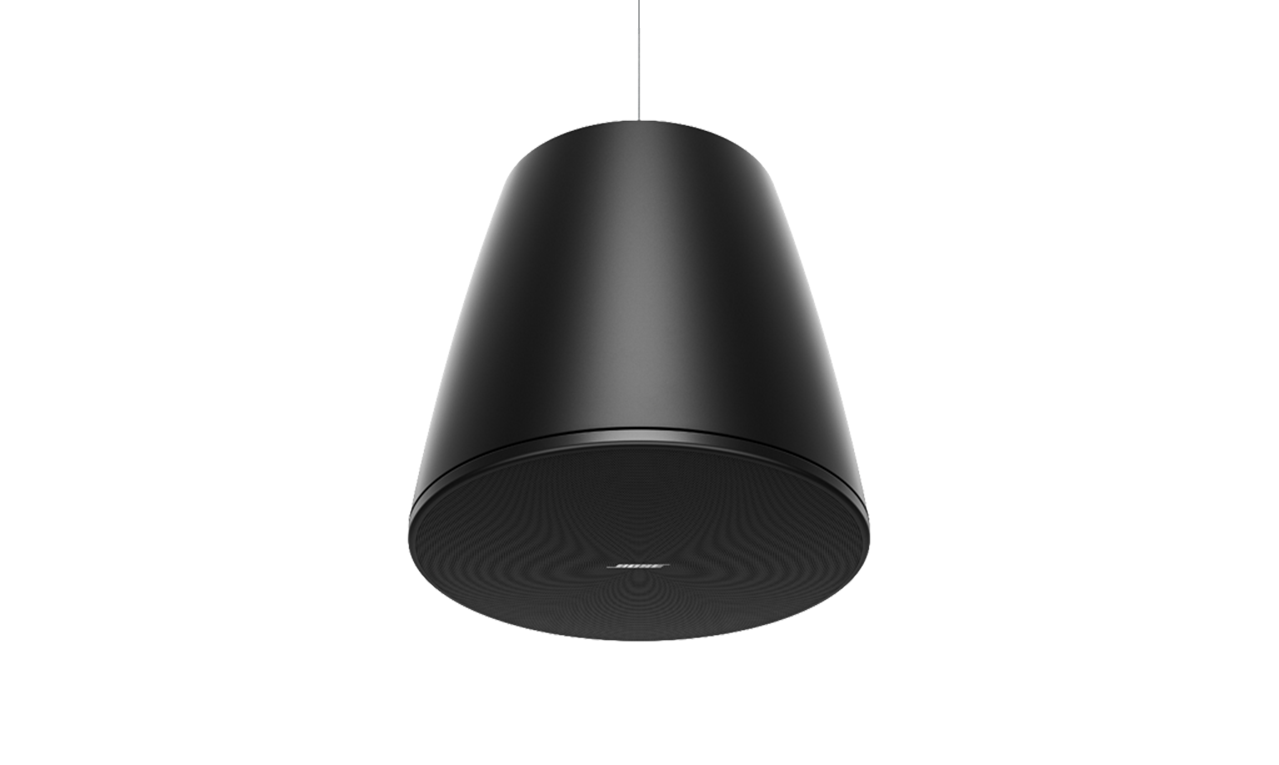

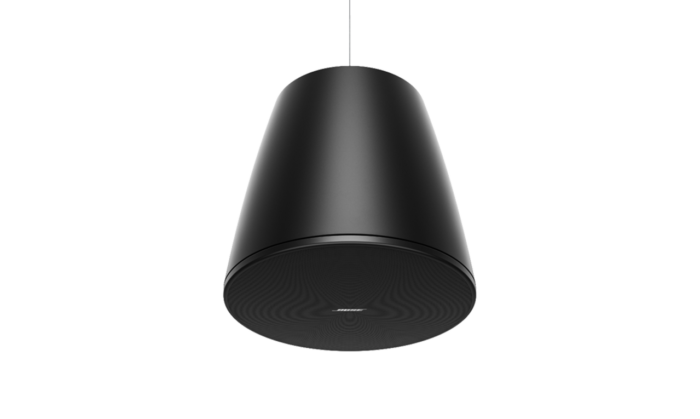

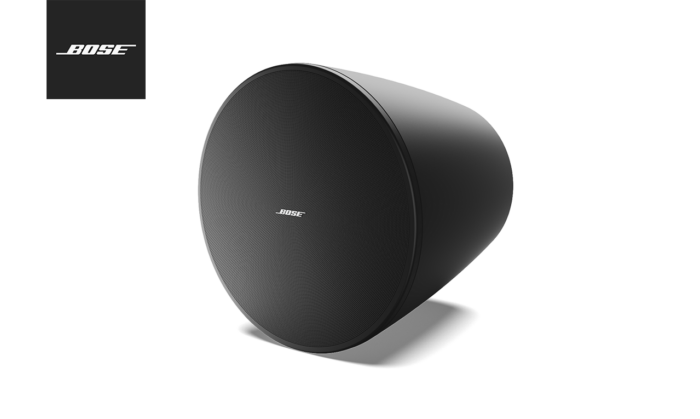

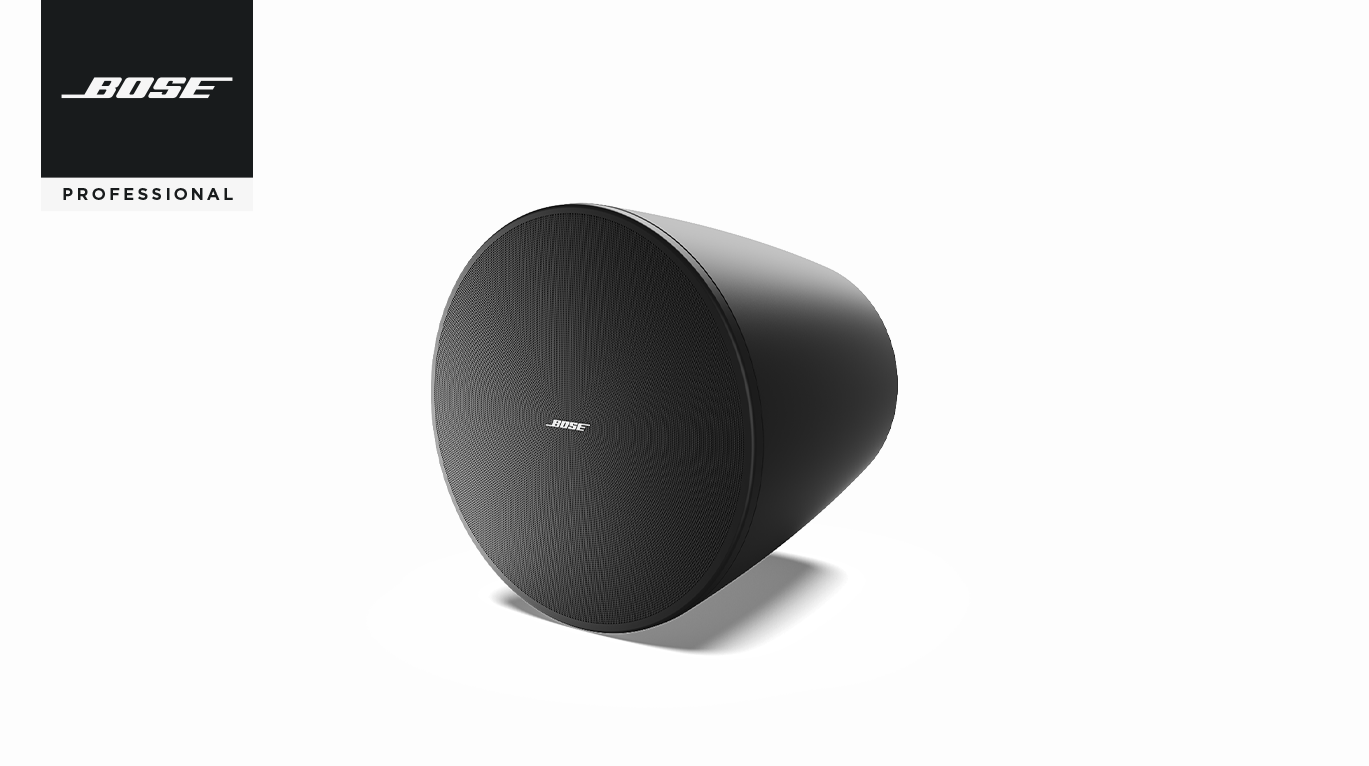

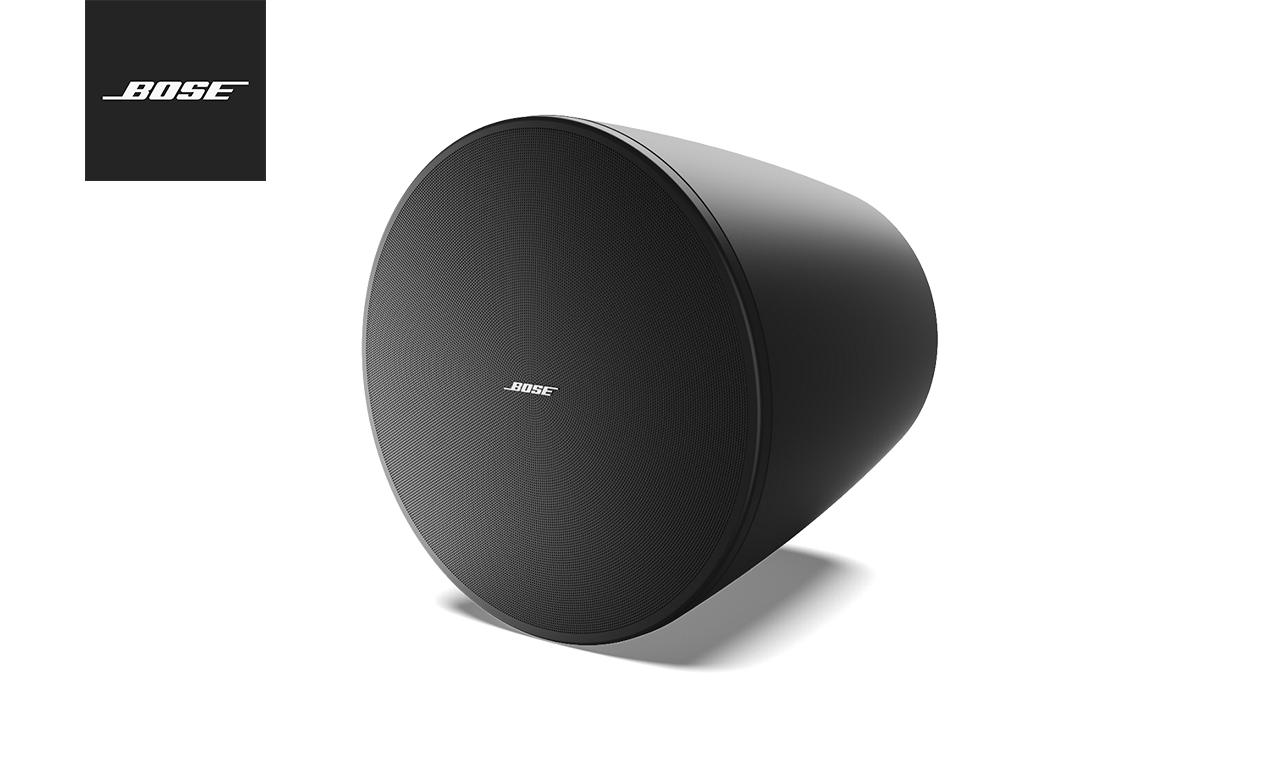

The DesignMax subwoofers add powerful bass to commercial sound systems. The Bose Professional DM10P-SUB is a 10-inch pendant subwoofer with a 40 – 125 Hz frequency range. It has a stylish appearance with a recessed single-point suspension system.
Description
Bose DesignMax DM10P-Sub Loudspeaker
Delivering rich low-end performance, the DesignMax subwoofers bring instantly impressive bass to any commercial sound installation. The 300-watt Bose Professional DM10P-SUB is a 10-inch pendant subwoofer with a 40–125 Hz frequency range and has a recessed single-point suspension system for a sleek, attractive appearance and is available in black or white.
Features
Complete any commercial sound installation with 16 DesignMax loudspeakers to mix and match, including in-ceiling, surface-mount, and pendant form factors, subwoofers, high-SPL compression-driver models, compact low-profile models, and outdoor-rated options
Choose from three DesignMax subwoofer models — the 180-watt in-ceiling DM8C-SUB, the 300-watt surface-mounted DM10S-SUB, and the sleek 300-watt DM10P-SUB pendant subwoofer
Deliver rich bass performance with custom drivers; for optimal performance, use select Bose Professional DSPs and amplifiers to enable Bose Professional loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level

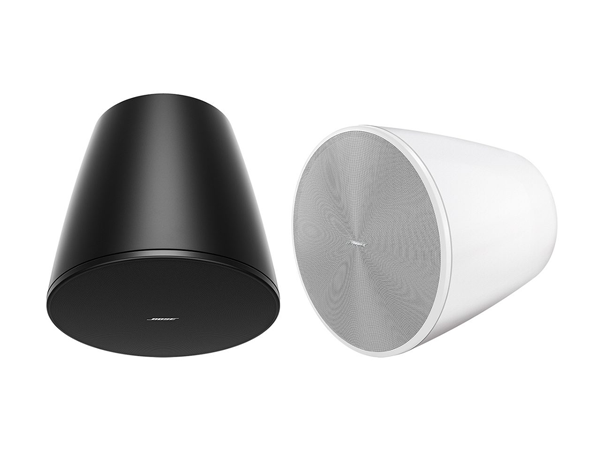

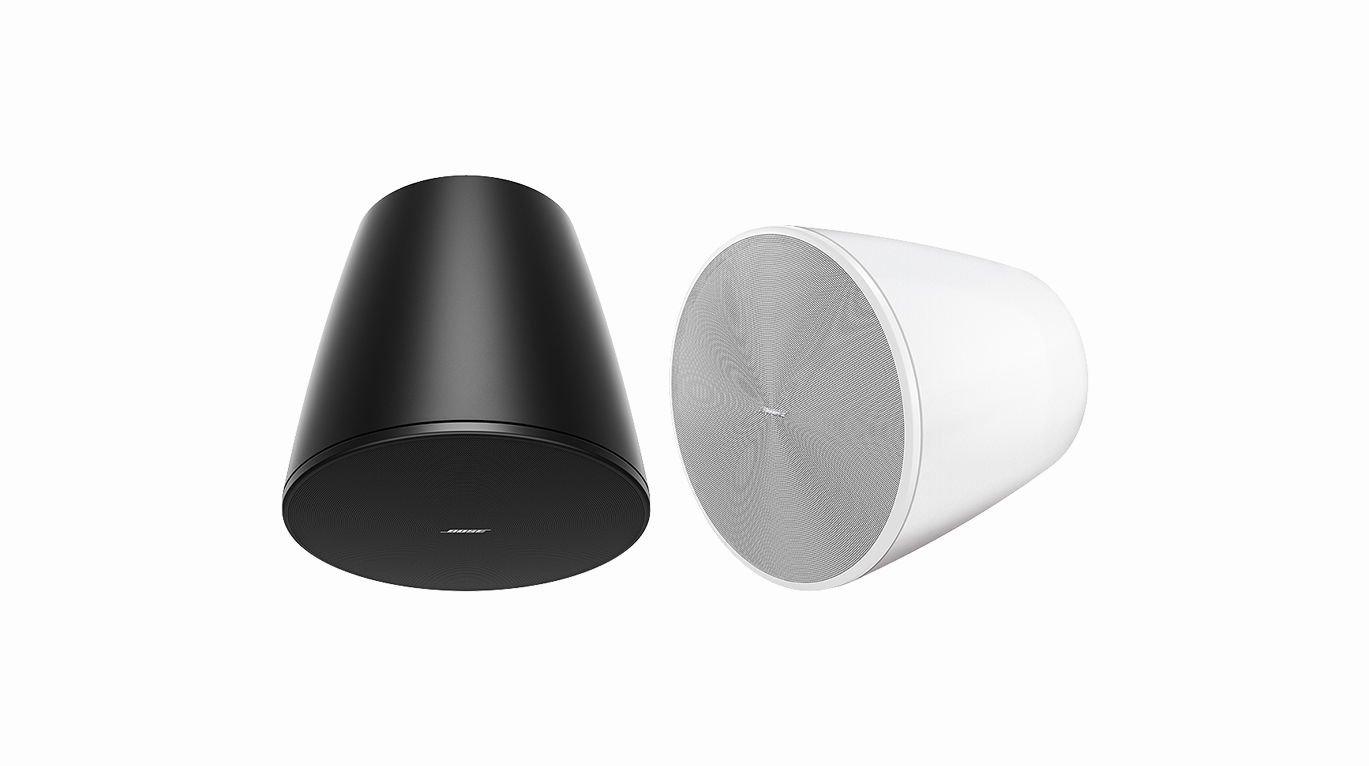

Blend with any room design with elegant form factors, minimum-bezel grilles available in black or white, and removable logos
Install easily with industry-standard accessories — all models include Euroblock connectors; in-ceiling models include plenum-rated backcans, tile bridges, and front-access audio wiring that makes installation and troubleshooting easier

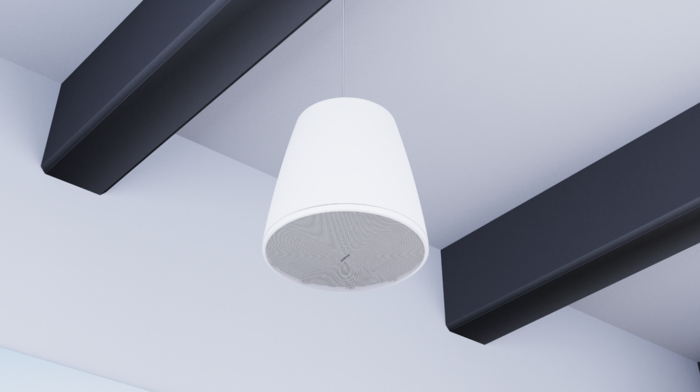

Provide an open, attractive aesthetic with pendant loudspeakers featuring a recessed single-point suspension system that keeps hardware out of sight and can be used to hold and hide a service loop for easy access
Technical Specifications
Compliance
Safety Agency Ratings | UL 1480A, UL 2239 for suspension cable, NFPA 70 & NFPA 90A, CE-compliant |
Physical
Colors | Black (similar to RAL 9005), white (similar to RAL 9003), paintable |
| Enclosure Material | Engineered plastics |
| Environmental | Indoor only |
| Grille | Perforated steel, powder-coated finish |
| Logo | Rotatable, removable |
| Suspension/ Mounting | 1 suspension attachment point, 1 safety cable attachment point |
Operating | 0 °C to 50 °C (32 °F to 122 °F) |
| Product Dimensions (H×W×D) | 15.7 in × 15.1 in (400 mm × 383 mm), loudspeaker diameter × depth |
| Net Weight | 19.7 lb (8.9 kg) |
| Shipping Weight | 27.9 lb (12.7 kg) |
Perfomance
Frequency Range (-10 dB) | 40 Hz – 125 Hz |
Coverage, Horizontal | Omnidirectional below 200 Hz |
| Calculated Maximum SPL @ 1 m | 110 dB |
| Nominal Impedance | 8 Ω (transformer bypass) |
| Power Handling, long-term continuous | 250 W |
| Power Handling, Peak | 1000 W |
| Sensitivity (SPL/1 W at 1 m) | 85 dB |
Transformer Taps, 100V | 40, 80, 150 W, bypass |
Transformer Taps, 70V | 20 W, 40 W, 80 W, 150 W, bypass |
| Coverage, Vertical | Omnidirectional below 200 Hz |
| Recommended Signal Processing | Not required, Bose Professional EQ voicing and SmartBass processing available |
Transducers
| Crossover | 80 Hz – 200 Hz via active crossover in DSP |
Driver Protection | Recommended high-pass protection 45 Hz with recommended 24 dB/octave filter |
Low-Frequency | 1 × 10 in (254 mm) woofer |
Additional information
| Brand | Bose |
|---|---|
| Colour | Black |
| Speaker Type | Subwoofer |
