€669
Call for availability

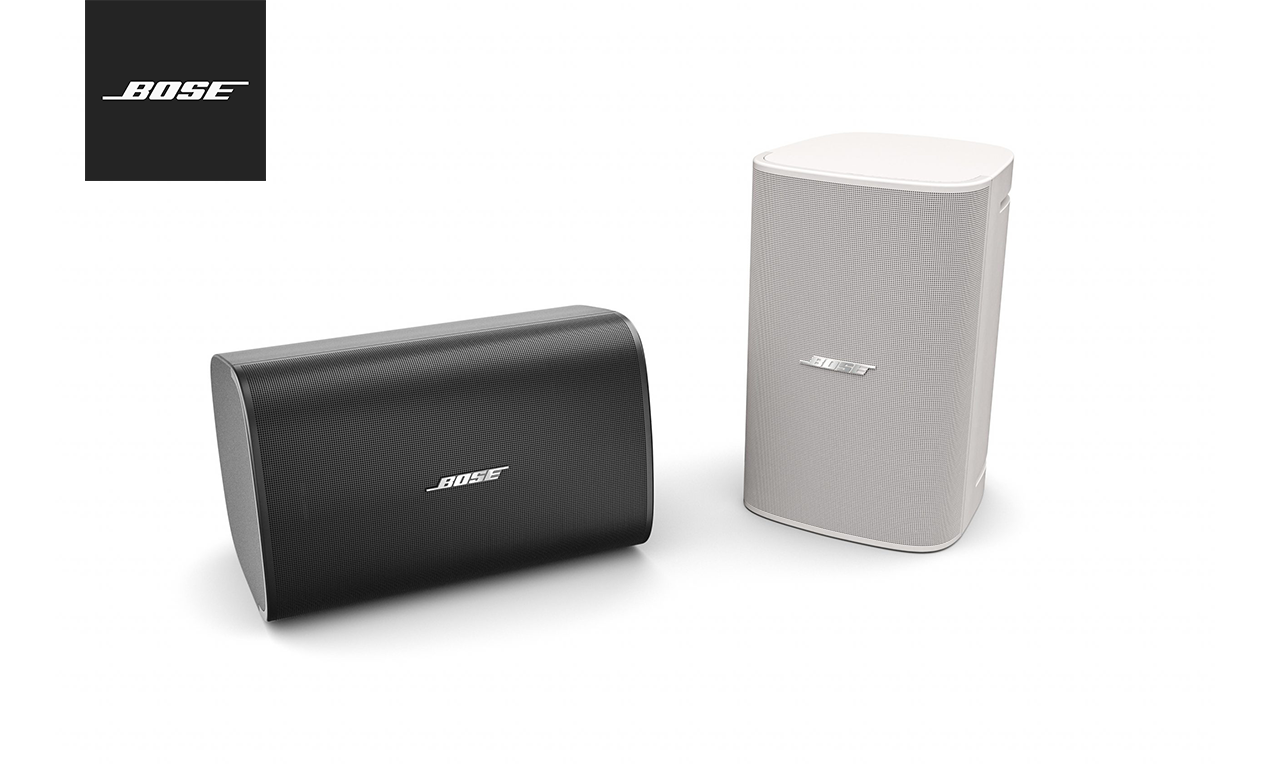

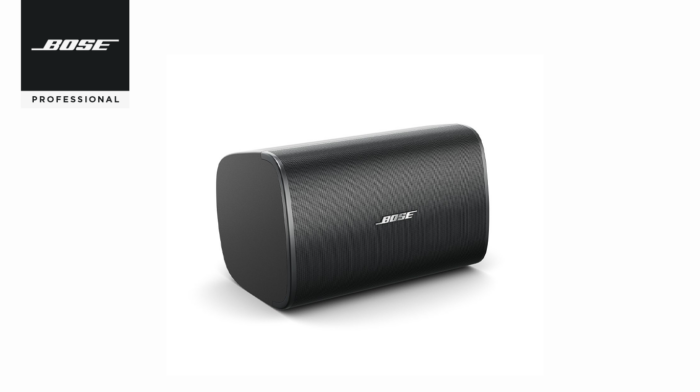

Bose Professional DesignMax DM8SE, Premium sound to maximize any design.
DesignMax loudspeakers bring outstanding audio and aesthetics to any commercial space. With 12 models to choose from, it’s easy to create tailored solutions that deliver instantly impressive sound. QuickHold mounting mechanisms make installation efficient, reducing strain and hassle — and saving substantial time. And with both black and white versions available, DesignMax loudspeakers integrate seamlessly with any décor.
Delivering SPL suitable for foreground music, the 125-watt DesignMax DM8S loudspeaker features a two-way, 8-inch coaxially mounted woofer and a center-firing 1-inch compression driver, producing a 50 Hz – 20 kHz frequency range. The DM8S is surface-mounted and locks onto a hidden QuickHold U-bracket for fast, secure installation.
Combine models to complete any design, big or small — 12 loudspeakers to mix and match, from 2-inch, low-profile models to 8-inch, high-SPL compression-driver loudspeakers and outdoor-rated options
Deliver instantly impressive sound with custom Bose drivers — no DSP or EQ required. For even better sound, use select Bose DSPs and amplifiers to enable Bose loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level
Blend into any room design with elegant form factors, minimum-bezel grilles available in black or white, and removable logos
Reduce installation time with the patented QuickHold mounting system, which also reduces strain, hassle, and the chance of product damage
Install easily — all models include Euroblock connectors; ceiling-mounted models include plenum-rated backcans, tile-bridges, and front-access audio wiring that makes installation and troubleshooting easier
Deliver high SPL for clear foreground music
Frequency Response (+/-3 dB)
70-20,000 Hz
Nominal coverage (H x V)
115° x 115°
Power Handling, peak
500 W
Maximum SPL @ 1m
117 dB
Frequency Range (-10 dB)
60-20,000 Hz
Power Handling, long-term continuous
125 W
Sensitivity (SPL/1W @ 1 m)
96 dB
Nominal Impedance
8 Ω (transformer bypass)
| Brand | Bose |
|---|---|
| Colour | Black, White |
| Speaker Type | Surface mount |
