Bose Professional DesignMax DM8C-Sub, Premium sound to maximize any design.
Description

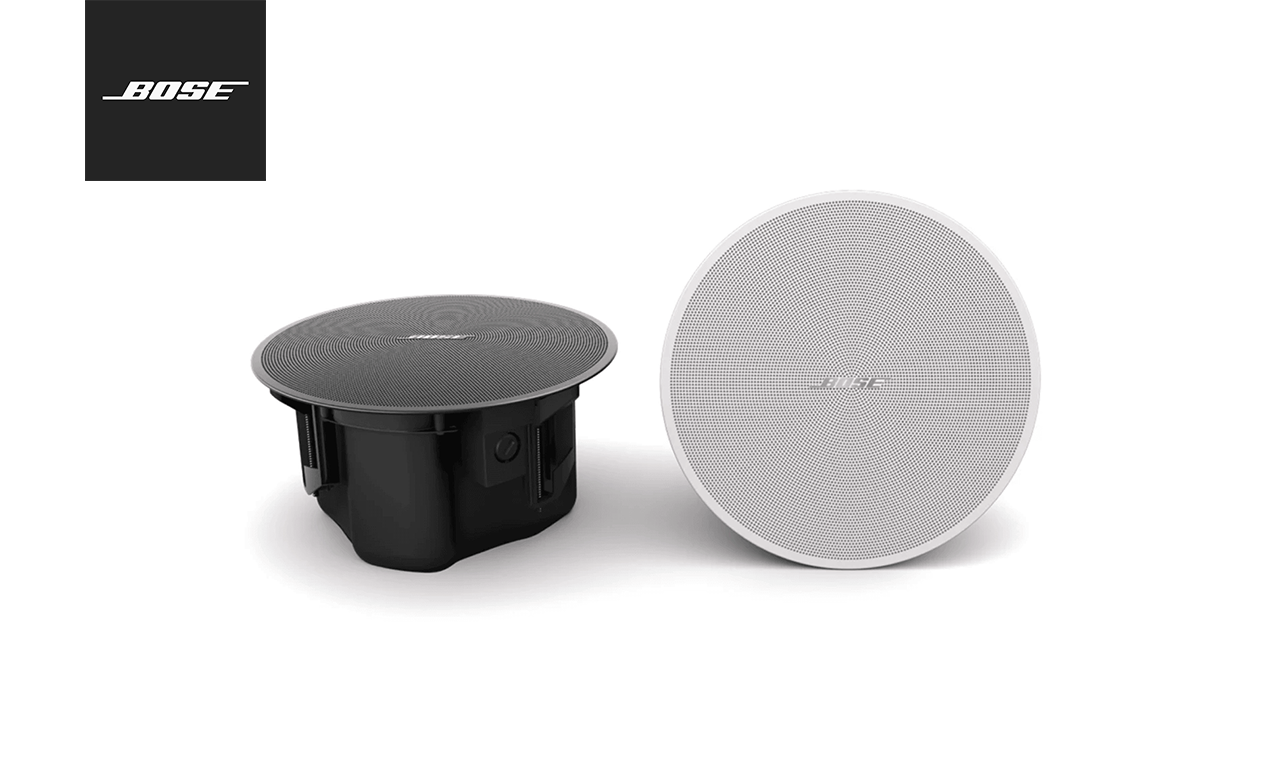

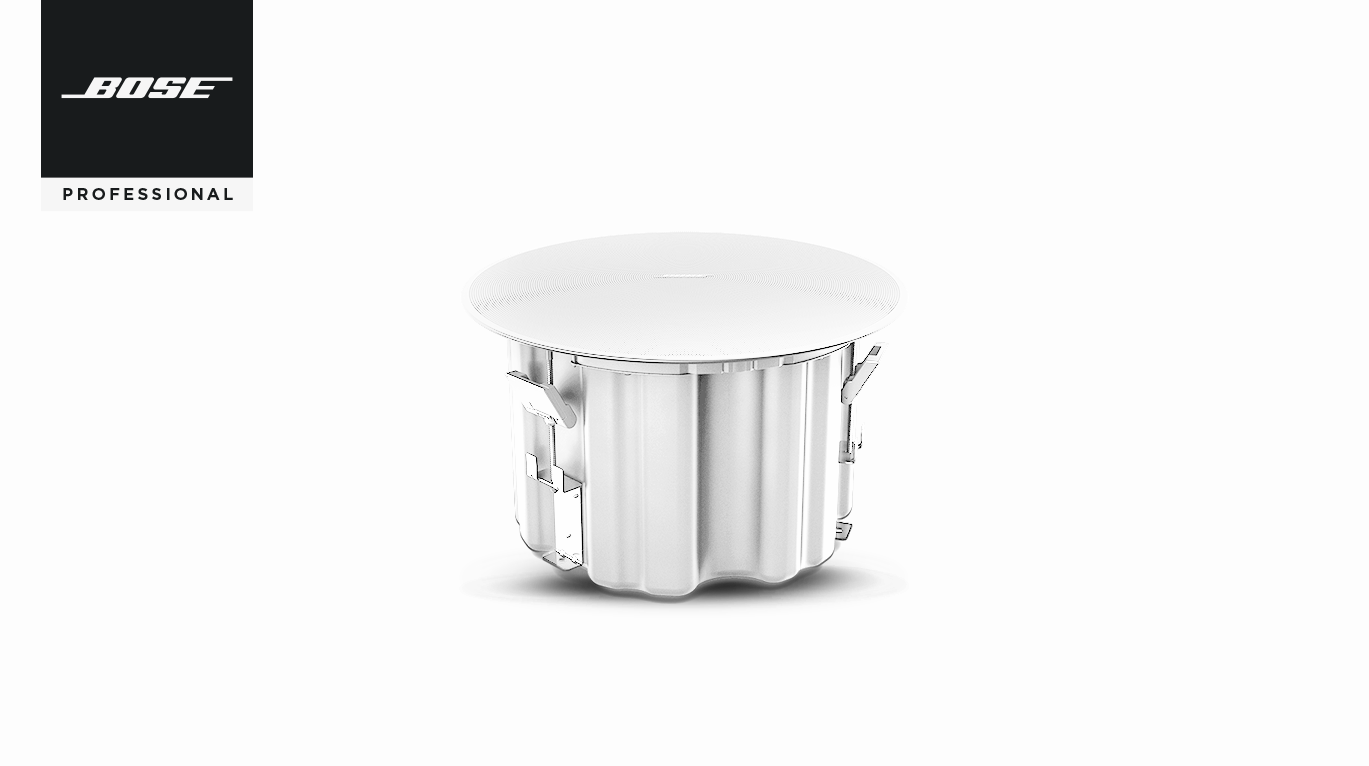

Bose DesignMax DM8C-Sub
Premium sound to maximize any design.
DesignMax loudspeakers bring outstanding audio and aesthetics to any commercial space. With 12 models to choose from, it’s easy to create tailored solutions that deliver instantly impressive sound. QuickHold mounting mechanisms make installation efficient, reducing strain and hassle — and saving substantial time. And with both black and white versions available, DesignMax loudspeakers integrate seamlessly with any décor.
The 150-watt DesignMax DM8C-SUB subwoofer features an 8-inch woofer, which delivers a 42 Hz – 300 Hz frequency range. The DM8C-SUB is ceiling-mounted, installed easily via QuickHold mounting arms
Features
Combine DesignMax models to complete any design, big or small — 12 loudspeakers to mix and match, from 2-inch, low-profile models to 8-inch, high-SPL compression-driver loudspeakers and outdoor-rated options
Deliver rich bass performance with custom Bose Professional drivers; for optimal performance use select Bose Professional DSPs and amplifiers to enable Bose Professional loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level
Blend with any room design with elegant form factors, minimum-bezel grilles available in black or white, and removable logos
Reduce installation time with the patented QuickHold mounting system, which also reduces strain, hassle, and the chance of product damage
Install easily with industry-standard accessories — all models include Euroblock connectors; in-ceiling models include plenum-rated backcans, tile bridges, and front-access audio wiring that makes installation and troubleshooting easier
Applications
Designed for a wide range of applications, including:
- Performing arts venues
- Places of worship
- Conference centers
- Retail stores
- Restaurants and bars
- Hospitality venues
Technical Specifications
Compliance
Safety Agency Ratings | UL-1480A, S5591/ UL Listed, in compliance with UL2043 for plenum-space installation, NFPA70 & NFPA90-A, CE compliant |
Physical
Colors | Black (RAL 9005), white (similar to RAL 9003), paintable |
| Enclosure Material | Engineered-plastics front baffle with integrated steel-formed backcan |
| Environmental | Indoor only |
| Grille | Magnetically attached perforated steel, powder-coated finish, paintable, with safety tether |
| Ceiling Cutout | 13.8 in (349 mm) |
| Logo | Rotatable, removable |
| Suspension/ Mounting | (3) QuickHold spring-loaded mounting arms, (3) safety cable attachment points |
Operating | 0 °C to 50 °C (32 °F to 122 °F) |
| Product Dimensions (H×W×D) | 16.1 in × 10.0 in (409 mm × 255 mm), loudspeaker diameter × depth / 13.4 in × 9.5 in (340 mm × 240 mm), backcan diameter × depth |
| Net Weight | 21.9 lb (9.9 kg), loudspeaker with grille (single) / 2.2 lb (1.0 kg), tile bridge (single) |
| Shipping Weight | 28.5 lb (12.9 kg) |
Perfomance
Frequency Range (-10 dB) | 38 Hz – 115 Hz |
Coverage, Horizontal | Omnidirectional below 200 Hz |
| Calculated Maximum SPL @ 1 m | 112 dB |
| Nominal Impedance | 8 Ω (transformer bypass) |
| Power Handling, long-term continuous | 180 W |
| Power Handling, Peak | 720 W |
| Recommended Signal Processing | Not required, Bose Professional EQ voicing and SmartBass processing available |
| Sensitivity (SPL/1 W at 1 m) | 89 dB |
Transformer Taps, 100V | 40, 80, 150 W, bypass |
Transformer Taps, 70V | 2.5 W, 5 W, 10 W, 20 W, 40 W, 80 W, bypass |
| Coverage, Vertical | Omnidirectional below 200 Hz |
Transducers
Driver Protection | Recommended high-pass protection 40 Hz with recommended 18 dB/octave filter |
Low-Frequency | 1 × 8 in (203 mm) woofer |
| Crossover | 80 Hz – 200 Hz via active crossover in DSP |
Additional information
| Brand | Bose |
|---|---|
| Colour | Black, White |
| Speaker Type | Ceiling |
