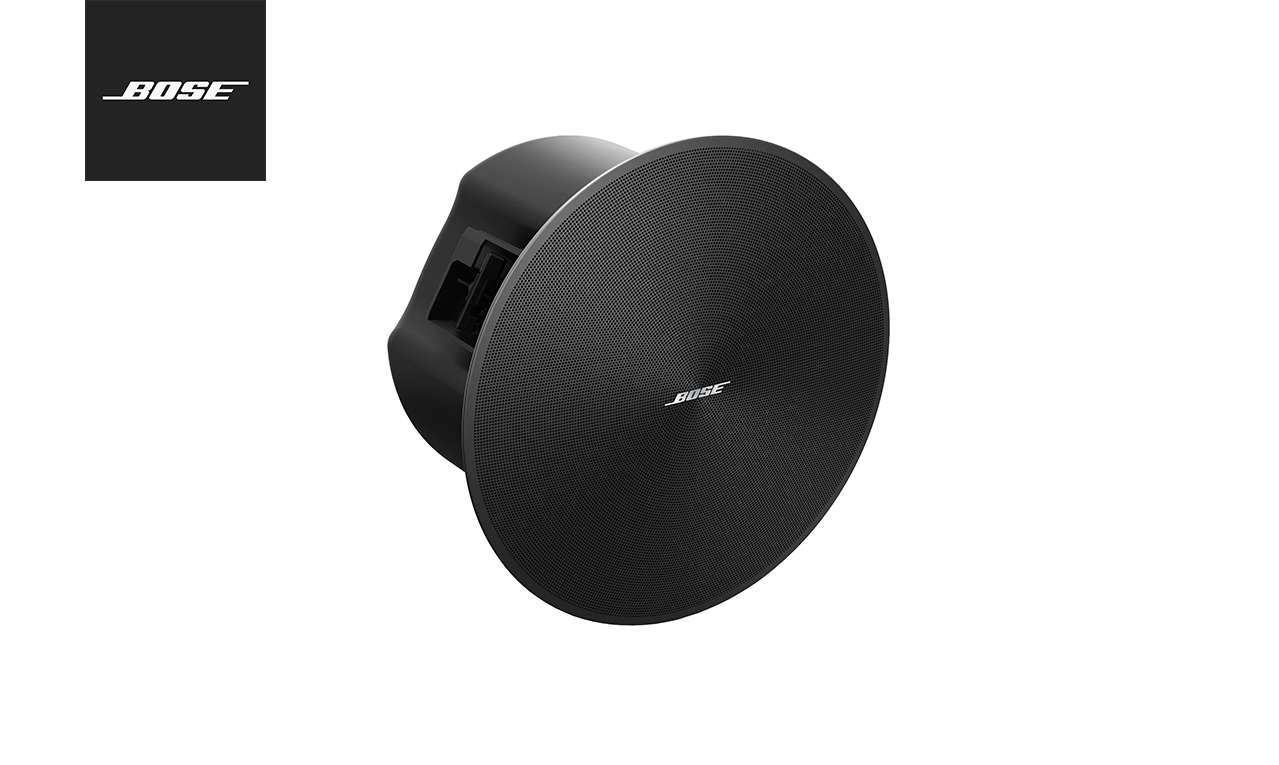

With coaxial two-way drivers, the 125-watt Bose Professional DesignMax DM6C loudspeaker offers rich lows and clear, intelligible highs — along with premium aesthetics that complement any commercial sound installation.

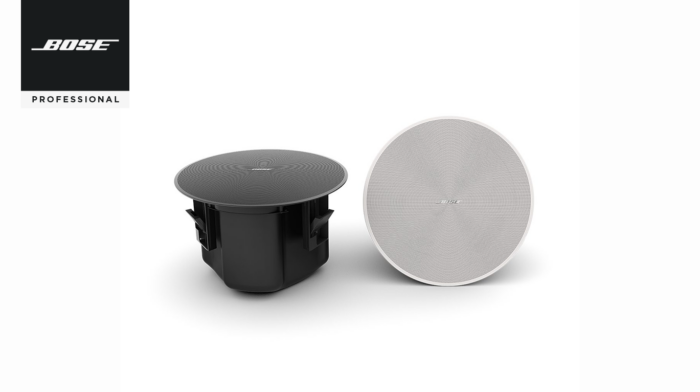

DesignMax loudspeakers bring outstanding audio and aesthetics to any commercial space. With 12 models to choose from, it’s easy to create tailored solutions that deliver instantly impressive sound. QuickHold mounting mechanisms make installation efficient, reducing strain and hassle — and saving substantial time. And with both black and white versions available, DesignMax loudspeakers integrate seamlessly with any décor.
The 100-watt DesignMax DM6C features a two-way 6.5-inch woofer and 1.25-inch tweeter coaxially mounted within the Dispersion Alignment system, producing a frequency range of 55 Hz – 20 kHz. The DM6C is ceiling-mounted and installs easily via QuickHold mounting arms
Safety Agency Ratings | UL 1480A, in compliance with UL 2043 for plenum-space installation, NFPA 70 & NFPA 90A, CE-compliant |
Colors | Black (RAL 9005), white (similar to RAL 9003), paintable |
| Enclosure Material | Engineered-plastics front baffle with integrated steel-formed backcan |
| Environmental | Indoor only |
| Grille | Magnetically attached perforated steel, powder-coated finish, paintable, with safety tether |
| Ceiling Cutout | 11.5 in (292 mm) |
| Logo | Rotatable, removable |
| Suspension/ Mounting | (3) QuickHold spring-loaded mounting arms, (3) safety cable attachment points |
Operating | 0 °C to 50 °C (32 °F to 122 °F) |
| Product Dimensions (H×W×D) | 14.0 in × 9.4 in (356 mm × 239 mm), loudspeaker diameter × depth / 11.3 in × 8.8 in (287 mm × 223 mm), backcan diameter × depth |
| Net Weight | 14.3 lb (6.5 kg), loudspeaker with grille (single) / 1.8 lb (0.8 kg), tile bridge (single) |
| Shipping Weight | 39.1 lb (17.7 kg), pair |
Frequency Range (-10 dB) | 59 Hz – 20,000 Hz |
Coverage, Horizontal | 120° conical |
| Calculated Maximum SPL @ 1 m | 109 dB |
| Nominal Impedance | 8 Ω (transformer bypass) |
| Power Handling, long-term continuous | 125 W |
| Power Handling, Peak | 500 W |
| Recommended Signal Processing | Not required, Bose Professional EQ voicing and SmartBass processing available |
| Sensitivity (SPL/1 W at 1 m) | 88 dB |
Transformer Taps, 100V | 5, 10, 20, 40, 80 W, bypass |
Transformer Taps, 70V | 2.5 W, 5 W, 10 W, 20 W, 40 W, 80 W, bypass |
| Coverage, Vertical | 120° conical |
Driver Protection | Recommended high-pass protection 60 Hz with recommended 24 dB/octave filter |
Low-Frequency | 1 × 6.5 in (165 mm) woofer |
| Crossover | 1.7 kHz, passive 2-way crossover |
High-Frequency | 1 × 1.25 in (32 mm) neodymium dome tweeter, coaxially mounted |
| Brand | Bose |
|---|---|
| Speaker Type | Ceiling |
