With coaxial two-way drivers, the 60-watt Bose Professional DesignMax DM5C loudspeaker offers rich lows and clear, intelligible highs — along with premium aesthetics that complement any commercial sound installation.

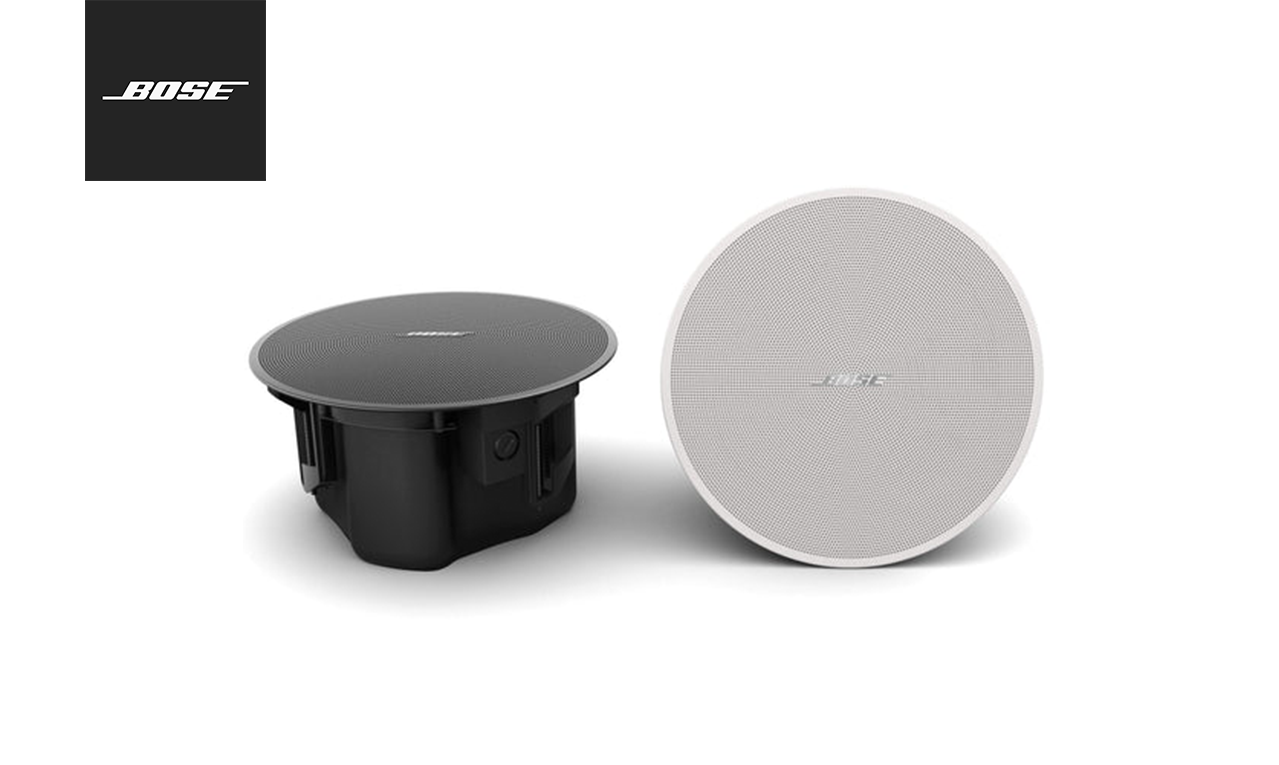

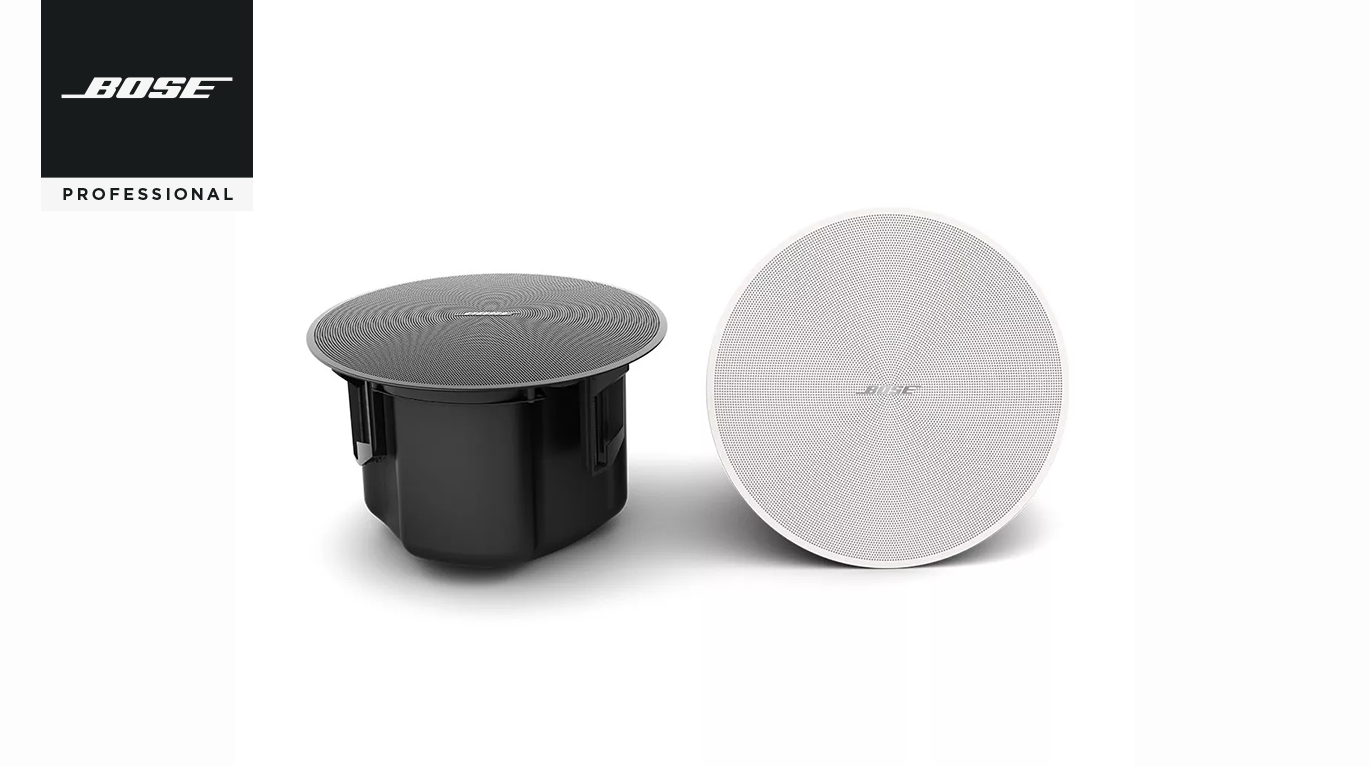

Bose DesignMax DM5C – White
Call for price
Description
Bose DesignMax DM5C
Premium sound to maximize any design.
DesignMax loudspeakers bring outstanding audio and aesthetics to any commercial space. With 12 models to choose from, it’s easy to create tailored solutions that deliver instantly impressive sound. QuickHold mounting mechanisms make installation efficient, reducing strain and hassle — and saving substantial time. And with both black and white versions available, DesignMax loudspeakers integrate seamlessly with any décor.
The 50-watt DesignMax DM5C loudspeaker features a two-way 5.25-inch woofer and 1-inch tweeter coaxially mounted within the Dispersion Alignment system, producing a frequency range of 60 Hz – 20 kHz. The DM5C is ceiling-mounted and installs easily via QuickHold mounting arms.
Features
Combine DesignMax models to complete any design, big or small — 12 loudspeakers to mix and match, from 2-inch, low-profile models to 8-inch, high-SPL compression-driver loudspeakers and outdoor-rated options
Deliver rich lows and clear, intelligible highs with coaxial two-way drivers — no DSP or EQ required. For even better sound, use select Bose Professional DSPs and amplifiers to enable Bose Professional loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level
Ensure a consistent listening experience throughout the room with the Dispersion Alignment system, which matches the coverage of the woofer to the pattern of the tweeter
Blend with any room design with elegant form factor, minimum-bezel grilles available in black or white, and removable logos
Reduce installation time with the patented QuickHold mounting system, which also reduces strain, hassle, and the chance of product damage
Install easily with industry-standard accessories — all models include Euroblock connectors; in-ceiling models include plenum-rated backcans, tile bridges, and front-access audio wiring that makes installation and troubleshooting easier
Applications
- Performing arts venues
- Places of worship
- Conference centers
- Retail stores
- Restaurants and bars
- Hospitality venues
Technical Specifications
Compliance
Safety Agency Ratings | UL 1480A, in compliance with UL 2043 for plenum-space installation, NFPA 70 & NFPA 90A, CE-compliant |
Physical
Colors | Black (RAL 9005), white (similar to RAL 9003), paintable |
Enclosure Material | Engineered-plastics front baffle with integrated steel-formed back can |
Environmental | Indoor only |
Grille | Magnetically attached perforated steel, powder-coated finish, paintable, with safety tether |
Ceiling Cutout | 9.8 in (250 mm) |
Logo | Rotatable, removable |
Suspension/ Mounting | (3) QuickHold spring-loaded mounting arms, (3) safety cable attachment points |
Operating | 0 °C to 50 °C (32 °F to 122 °F) |
Product Dimensions (H×W×D) | 11.9 in × 8.1 in (303 mm × 205 mm), loudspeaker diameter × depth / 9.6 in × 7.6 in (243 mm × 192 mm), backcan diameter × depth |
Net Weight | 9.6 lb (4.5 kg), loudspeaker with grille (single) / 1.9 lb (0.9 kg), tile bridge (single) |
Shipping Weight | 29.0 lb (13.2 kg), pair |
Perfomance
Frequency Range (-10 dB) | 65 Hz – 20,000 Hz |
Coverage, Horizontal | 130° conical |
Calculated Maximum SPL @ 1 m | 105 dB |
Nominal Impedance | 8 Ω (transformer bypass) |
Power Handling, long-term continuous | 60 W |
Power Handling, Peak | 240 W |
Recommended Signal Processing | Not required, Bose Professional EQ voicing and SmartBass processing available |
Sensitivity (SPL/1 W at 1 m) | 87 dB |
Transformer Taps, 100V | 6, 12, 25, 50 W, bypass |
Transformer Taps, 70V | 3 W, 6 W, 12 W, 25 W, 50 W, bypass |
Coverage, Vertical | 130° conical |
Transducers
Driver Protection | Recommended high-pass protection 65 Hz with recommended 24 dB/octave filter |
Low-Frequency | 1 × 5.25 in (133 mm) woofer |
Crossover | 1.8 kHz, passive 2-way crossover |
High-Frequency | 1 × 1 in (25 mm) neodymium dome tweeter, coaxially mounted |
Additional information
Brand | Bose |
---|---|
Speaker Type | Ceiling |
