Bose DesignMax Dm3P Black

Call for price

In stock

Coaxial two-way design, 30W Bose Pro DesignMax DM3P loudspeaker delivers clear highs, impressive bass for its size. Stylish pendant shape with recessed suspension system. Frequency range: 75Hz – 20kHz.

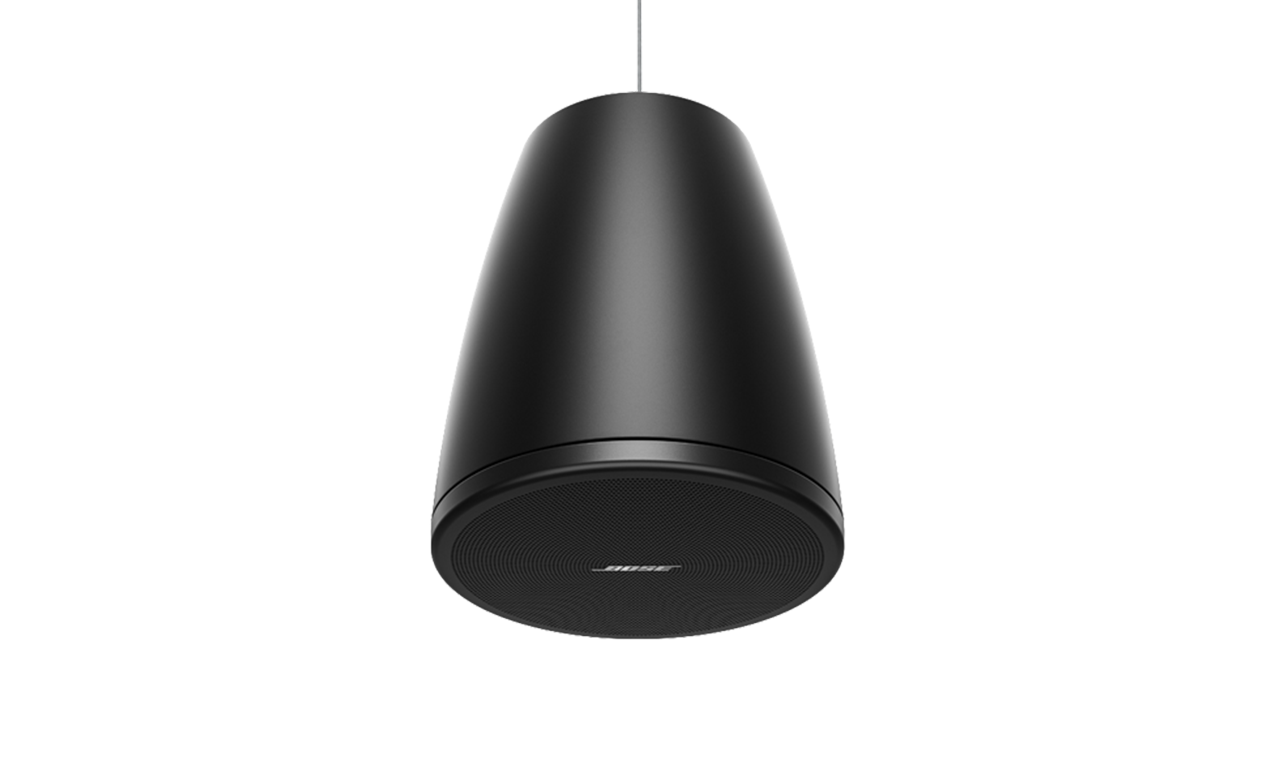

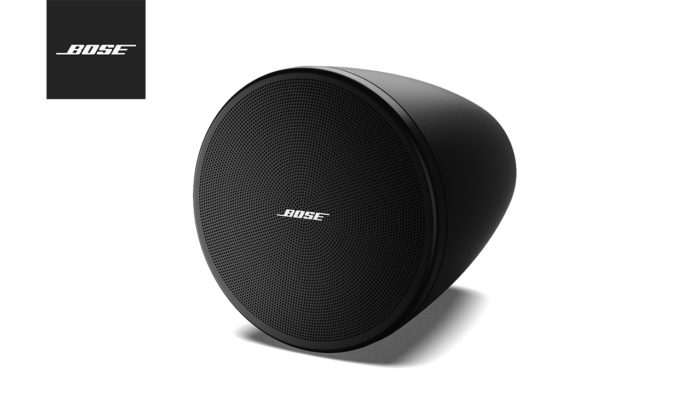

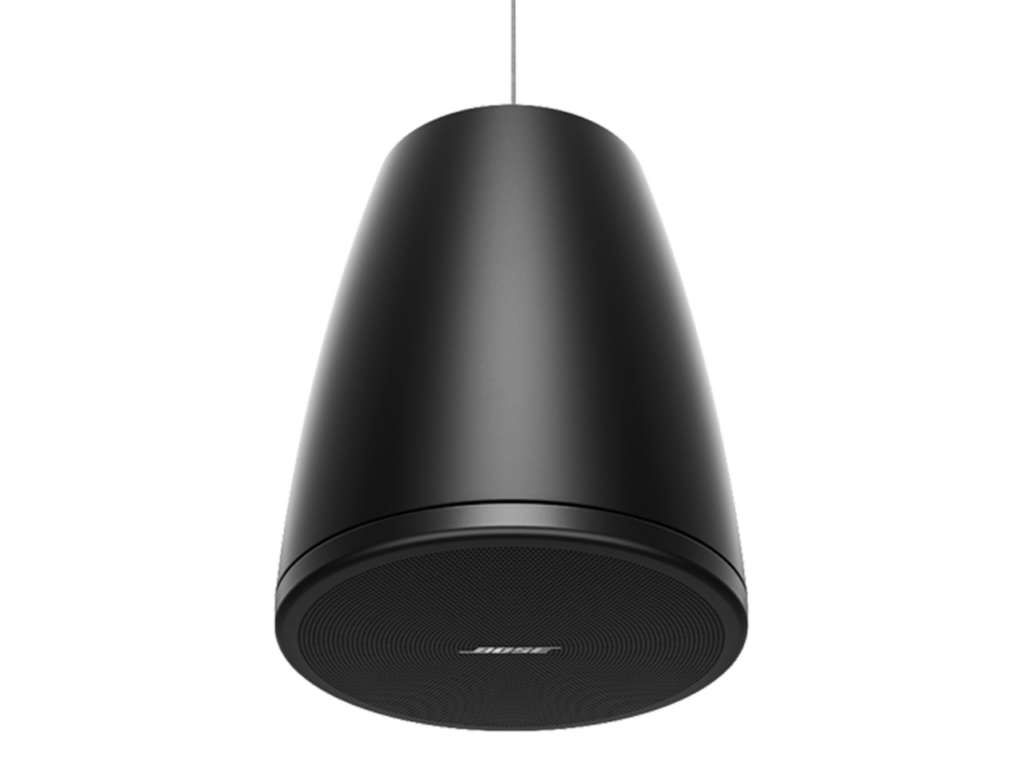

DesignMax DM3P Loudspeaker

With a coaxial two-way design, the 30-watt Bose Professional DesignMax DM3P loudspeaker offers clear, intelligible highs and surprising low end for its size — along with premium aesthetics that complement any commercial sound installation. It features a coaxial 3.25-inch woofer and 0.75-inch tweeter mounted within the Dispersion Alignment system, delivering a frequency range of 75 Hz – 20 kHz. The DM3P is a pendant loudspeaker featuring a recessed single-point suspension system for a sleek, attractive appearance.

Complete any commercial sound installation with 16 DesignMax loudspeakers to mix and match, including in-ceiling, surface-mount, and pendant form factors, subwoofers, high-SPL compression-driver models, compact low-profile models, and outdoor-rated options

Choose from three DM3 models — the in-ceiling DM3C, the surface-mounted, outdoor-rated DM3SE, and the sleek DM3P pendant loudspeaker

Deliver clear highs and surprising low end for their size with a coaxial two-way design — no DSP or EQ required. For even better sound, combine with select Bose Professional DSPs and amplifiers to enable Bose Professional loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level

Ensure a consistent listening experience throughout the room with the Dispersion Alignment system, which matches the coverage of the woofer to the pattern of the tweeter

Blend with any room design with elegant form factors, minimum-bezel grilles and removable logos

Install easily with industry-standard accessories — all models include Euroblock connectors; in-ceiling models include plenum-rated backcans, tile bridges, and front-access audio wiring that makes installation and troubleshooting easier

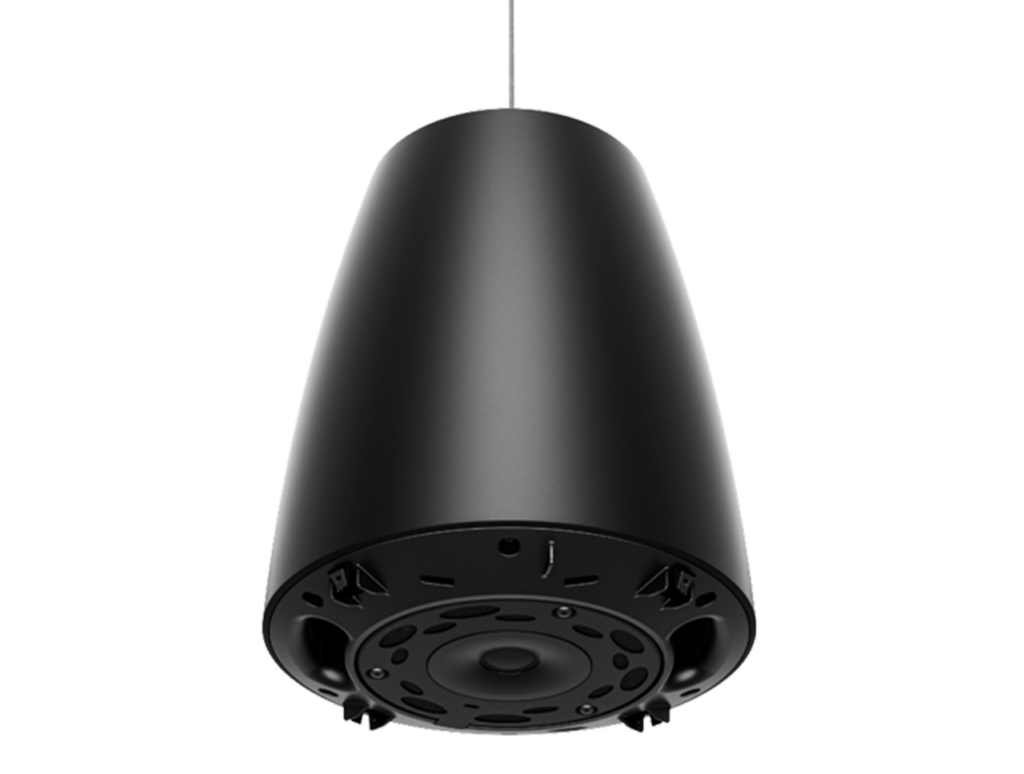

Provide an open, attractive aesthetic with pendant loudspeakers featuring a recessed single-point suspension system that keeps hardware out of sight and can be used to hold and hide a service loop for easy access


Technical Summary

Frequency Response (+/-3 dB)
80 – 20,000 Hz

Nominal coverage (H x V)
130° conical

Power Handling, peak
100 W

Maximum SPL @ 1m
99 dB

Frequency Range (-10 dB)
75 – 20,000 Hz

Power Handling, long-term continuous
25 W

Sensitivity (SPL/1W @ 1 m)
84 dB

Nominal Impedance
8 Ω (transformer bypass)

Additional information




Grey, Black

Subwoofer Model

SBT1000, SBT500
