Bose DesignMax DM3C

449

Call for availability

Bose Professional DesignMax DM3C, Premium sound to maximize any design.

SEND EMAIL QUERY
SKU: N/A Categories: , Tag:

Description

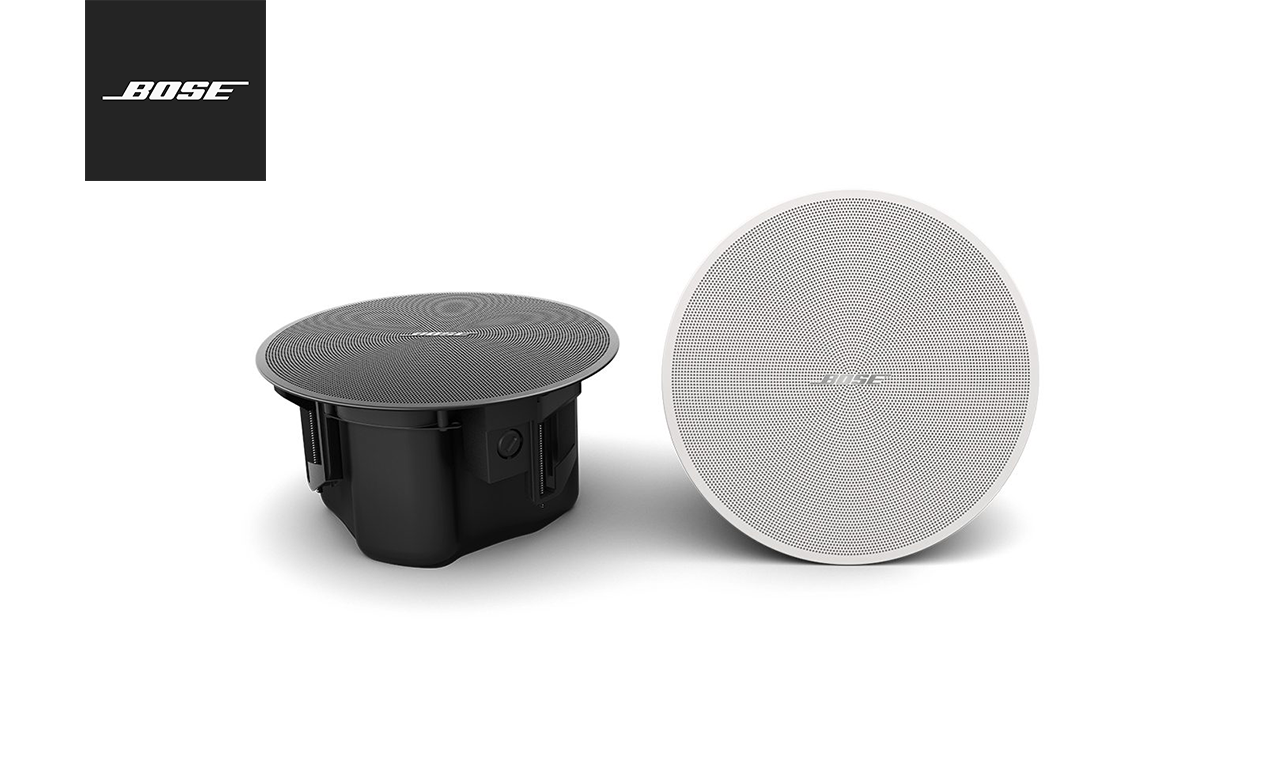

Bose DesignMax DM3C

Premium sound to maximize any design.
DesignMax loudspeakers bring outstanding audio and aesthetics to any commercial space. With 12 models to choose from, it’s easy to create tailored solutions that deliver instantly impressive sound. QuickHold mounting mechanisms make installation efficient, reducing strain and hassle — and saving substantial time. And with both black and white versions available, DesignMax loudspeakers integrate seamlessly with any décor.

The 25-watt DesignMax DM3C loudspeaker features a two-way 3.5-inch woofer and ¾-inch tweeter coaxially mounted within the Dispersion Alignment system, producing a frequency range of 70 Hz – 20 kHz. The DM3C is ceiling-mounted and installs easily via QuickHold mounting arms.

FEATURES

Combine models to complete any design, big or small — 12 loudspeakers to mix and match, from 2-inch, low-profile models to 8-inch, high-SPL compression-driver loudspeakers and outdoor-rated options

Deliver instantly impressive sound with custom Bose drivers — no DSP or EQ required. For even better sound, use select Bose DSPs and amplifiers to enable Bose loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level

Ensure a consistent listening experience throughout the room with the Dispersion Alignment system, which matches the coverage of the woofer to the pattern of the tweeter

Blend into any room design with elegant form factors, minimum-bezel grilles available in black or white, and removable logos

Reduce installation time with the patented QuickHold mounting system, which also reduces strain, hassle, and the chance of product damage

Install easily — all models include Euroblock connectors; ceiling-mounted models include plenum-rated backcans, tile-bridges, and front-access audio wiring that makes installation and troubleshooting easier

Applications

  • Performing arts venues
  • Places of worship
  • Conference centers
  • Retail stores
  • Restaurants and bars
  • Hospitality venues

SPECS

Frequency Response (+/-3 dB)
95-17,000 Hz

Nominal coverage (H x V)
Conical

Power Handling, peak
100 W

Maximum SPL @ 1m
99 dB

Frequency Range (-10 dB)
70-20,000 Hz

Power Handling, long-term continuous
25 W

Sensitivity (SPL/1W @ 1 m)
85 dB

Nominal Impedance
8 Ω (transformer bypass)

Additional information

Brand

Bose

Colour

Black, White

Speaker Type

Ceiling
