B-TECH BT8224

329

Call for availability

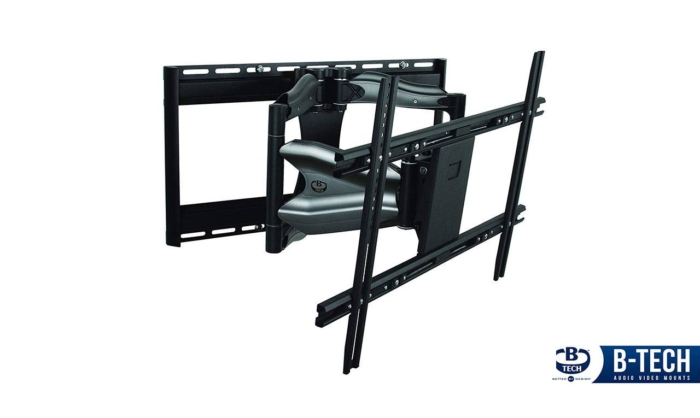

Full Motion Double Cantilever Arm Wall Mount for screens up to 65″. Max Weight – 90kg

Call for availability

SEND EMAIL QUERY
SKU: BT8224 Categories: ,

Description

  • Designed for screens up to 65” (165cm) / 90kg (198lbs)
  • Full motion mount – ideal for corner mounting

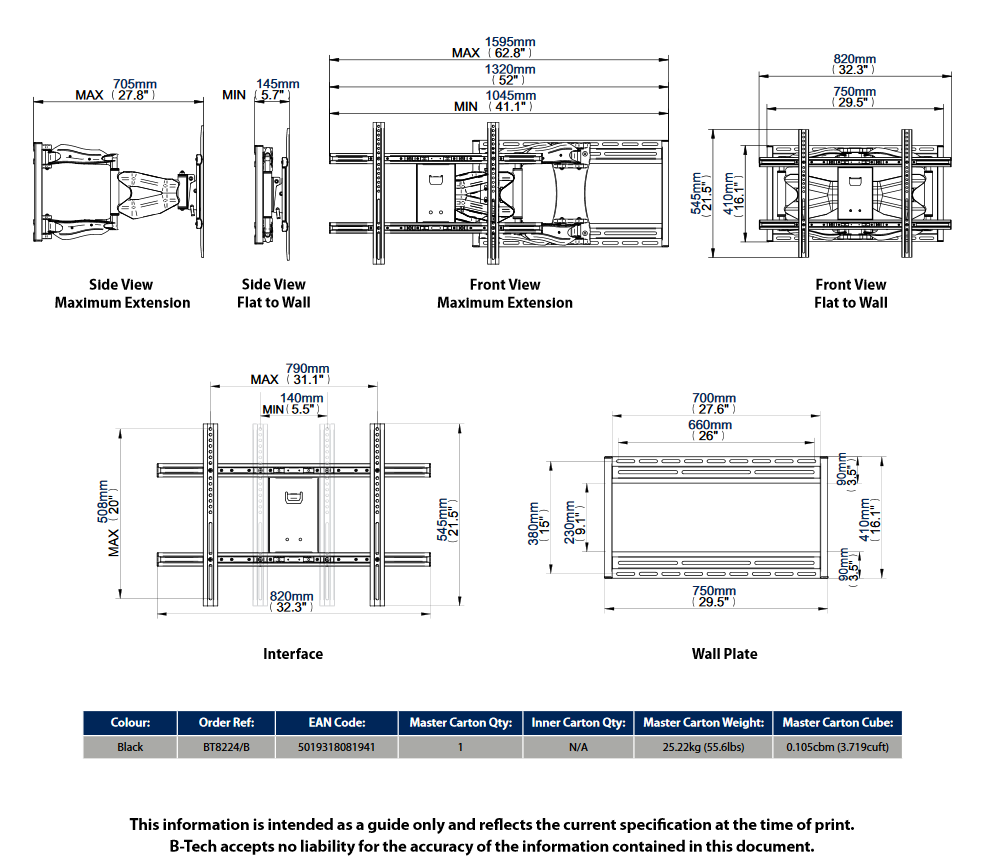

  • Fits screens with mounting patterns up to 790mm (31”) x 500mm (20”) including VESA:
    200 x 100mm, 200 x 200mm, 300 x 200mm, 300 x 300mm, 400 x 200mm, 400 x 400mm and 600 x 400mm
  • Easy tilt adjustment +15°
  • Double cantilever arms for enhanced strength and adjustability
  • Features three swivel points: 180° at wall, 250° at central pivot and 180° at interface
  • Lateral adjustment at wall plate for a perfectly positioned display
  • Features post installation screen levelling
  • Integrated cable management
  • Suitable for concrete / brick or stud walls up to 24”
  • Universal screen fixing kit supplied, including M4, M5, M6 and M8 screws
  • Simple ‘hook-on’ installation with all mounting hardware included
  • Max Weight: up to 90kg
  • Max Screen Size: 65” (165cm)
  • Tilt: +15°
  • Swivel: 180° at wall, 250° at central pivot and 180° at interface
  • VESA Compatibility:
    200 x 100, 200 x 200, 300 x 200, 300 x 300,
    400 x 200, 400 x 400, 600 x 400
  • Colours Available: Black

Additional information

Bracket Type

Swing-out

Brand

B-tech
