Audac XENO8 – Speaker

315.70

The XENO series is a loudspeaker range specifically designed for fixed audio installations in modern environments, offering two different sizes of contemporary and elegant designed products.

Full range speaker 8″

  • Vertical and horizontal mounting (rotatable logo)
  • Zinc alloy mounting bracket included
  • Terminal block connection
  • 1″ Dome tweeter
  • 8″ Low frequency loudspeaker
  • 20° incline angle
SEND EMAIL QUERY

Description

The XENO series is a loudspeaker range specifically designed for fixed audio installations in modern environments, offering two different sizes of contemporary and elegant designed products. What makes them so unique is their full range audio design, allowing them to be used without additional bass cabinet.

The XENO8 is the 8” version, with a 1” dome tweeter and an 8” Mid /Low-frequency driver, ensuring a true-to-nature, high-fidelity reproduction of music and speech. This wooden cabinet is fitted with a slim and elegant front grill. This makes the loudspeaker suitable for environments where the music is the key element, but without making any compromises on its design. This ranges from modern and trendy clubs to pubs and dance bars where that little extra punch and depth in the music is appreciated.

The sleek and elegant design guarantees the loudspeaker to blend in with any environment. It delivers a powerful full-range sound with an RMS rating of 120 Watt and a maximum of 240 Watt. The advanced integrated protection circuit avoids tweeter damaging when an overload occurs.

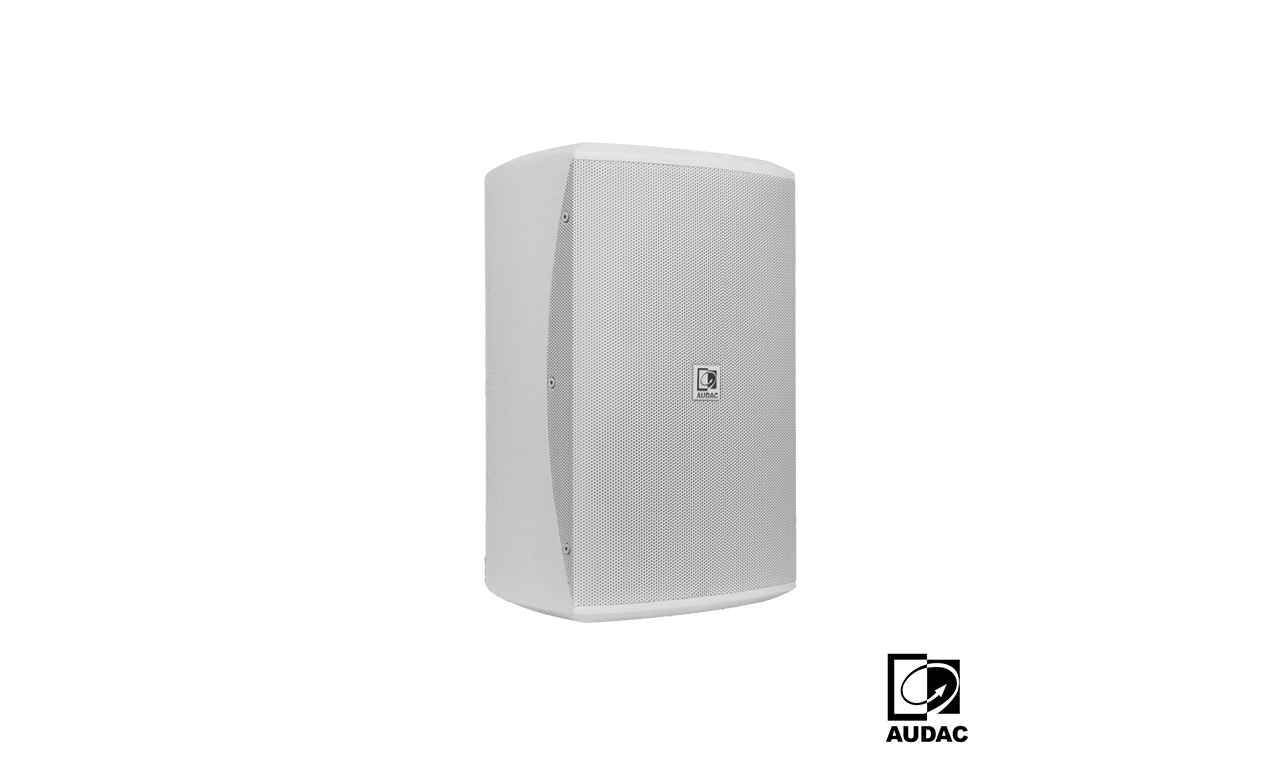

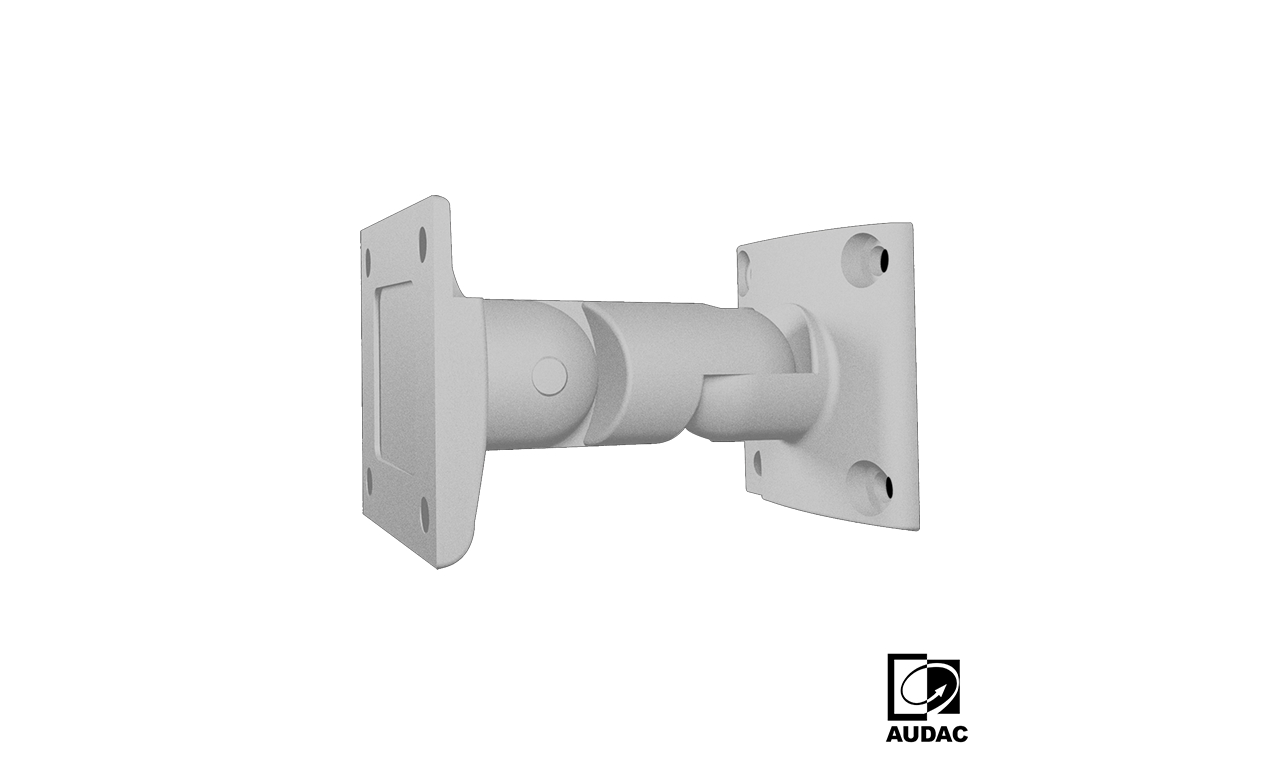

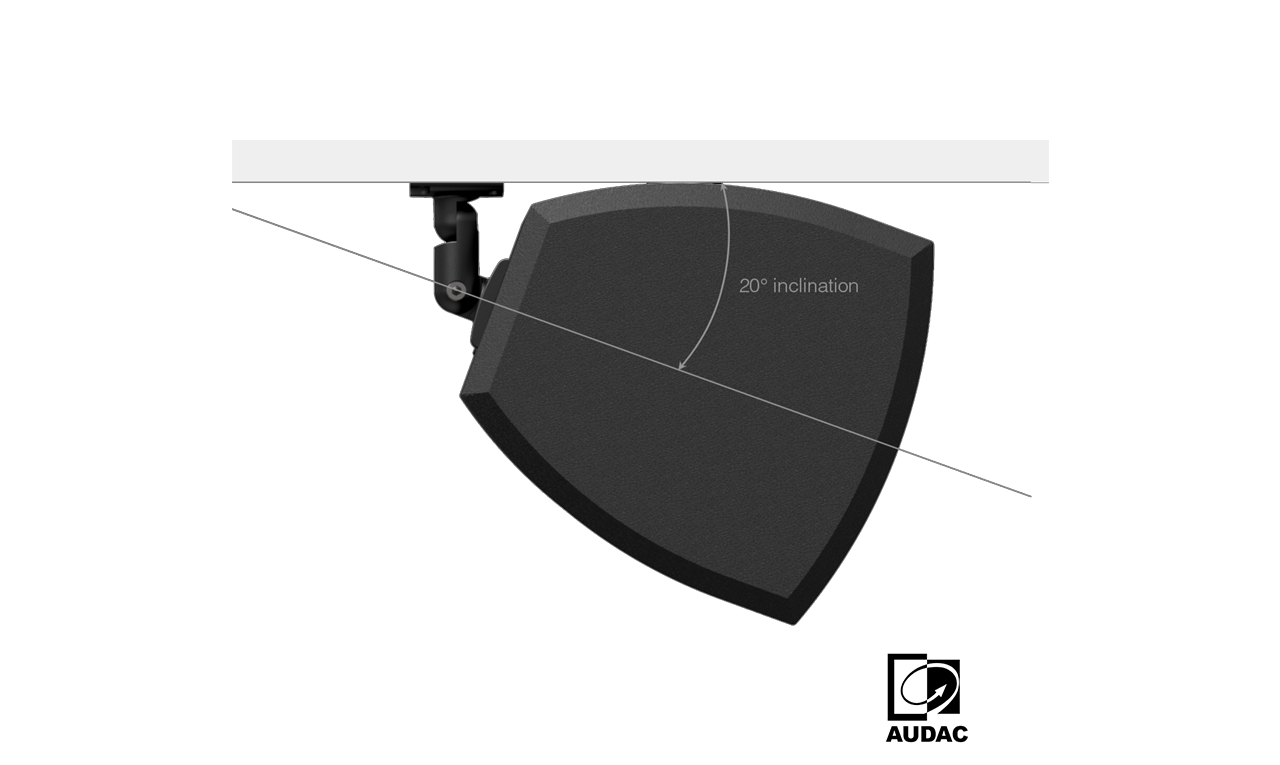

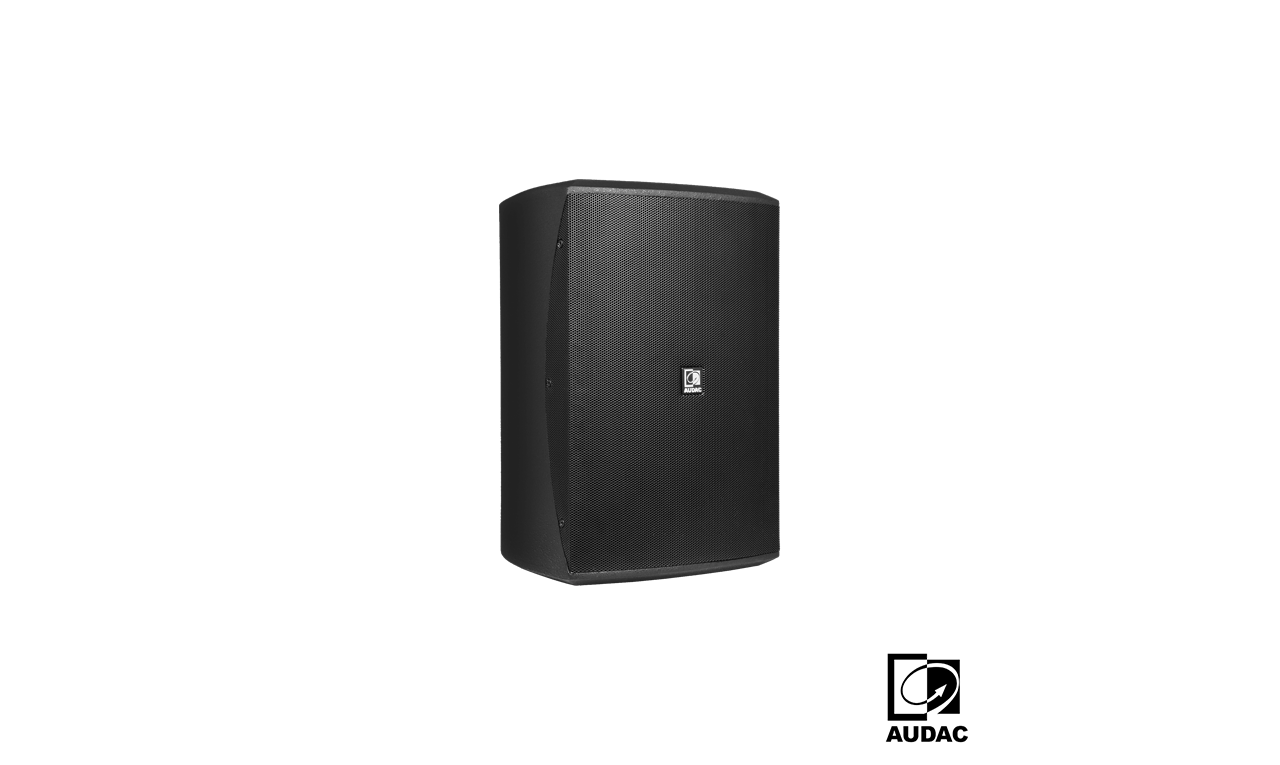

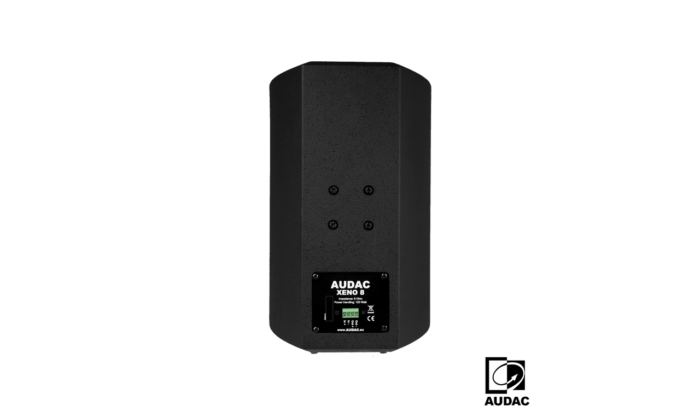

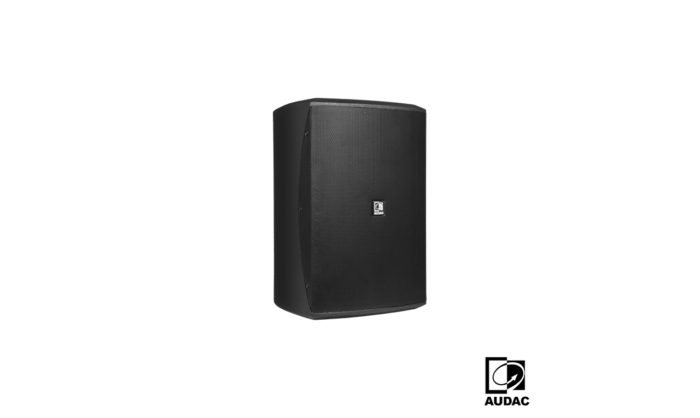

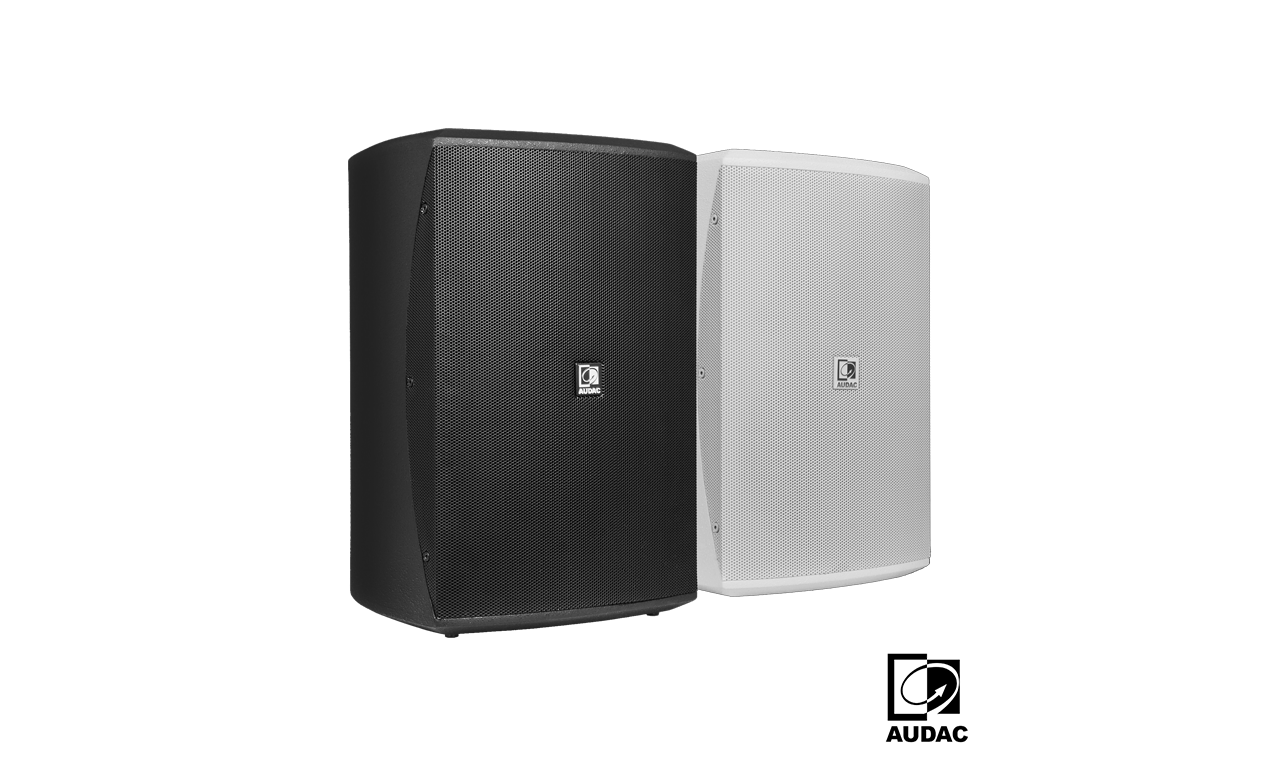

The included mounting bracket makes it possible to mount the loudspeaker in both horizontal and vertical position, up to 20°, making it suitable for every application. The connections can be made on the rear side of the loudspeaker with a Euro Terminal block connector. Ships with 2mm safety cable with a PVC jacket. All XENO series speakers are available in black (/B) or white (/W).

Technical Specifications

Available models

XENO8/B

XENO8/W

Black Version

White Version

System Specifications

Speaker Type

Peak power handling

Program power handling

RMS/AES power handling

Impedance

Sensitivity (1W/1m)

Sound Pressure (Max. W/1m)

2-way

480W

240W

120W

89B

110dB

Frequency Response (± 3 dB)

Frequency Response (-10 dB)

60 Hz – 18 kHz

50 Hz – 20 kHz

Crossover Frequency

Crossover Type

2.5 kHz

Passive built-in

Dispersion Horizontal

Dispersion Vertical

120°

120°

Connectors

Drivers

4-pin Euro Terminal Block (Pitch – 5.08 mm)

1” Dome tweeter

8” MF / LF Woofer



Product Features

Dimensions

Weight

Operating Temperature

Construction

Front finish

Mounting & Handling

Colours

250 x 380 x 262 mm (W x H x D)

7.800 kg

-20 °C ~ 60 °C

Medium Density Fibreboard with structured coating

Steel grill

2-way Revolving mounting bracket

Black (RAL9004) (XENO8/B)

White (RAL9003) (XENO8/W)





Accessories included

Accessories Optional

4-pin Euro Terminal Block (Pitch – 5.08 mm)

2-way Revolving mounting bracket

WBP100 Wall bracket mounting plate

Recommended Applications

Bars & Restaurants

Sporting facilities

Hotels

Residential

Clubs

Retail

Speaker Matrix

Additional information

Brand

Audac

Colour

Black, White

Speaker Type

Bookshelf / Wall-Mounted, Surface mount
